1981 Yamaha SRX440E Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

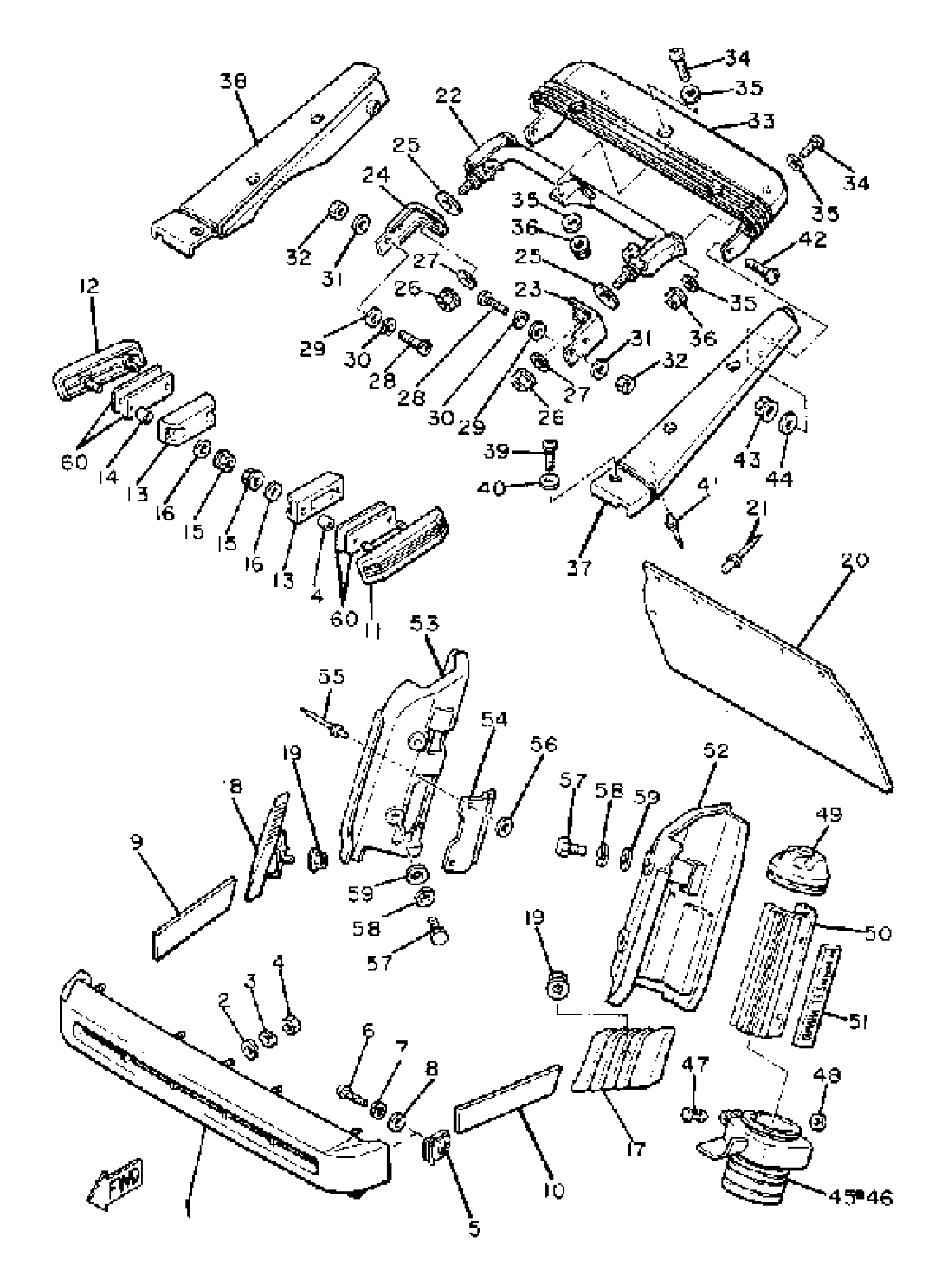

1981 Yamaha SRX440E Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

8M6-77510-00-00

1
Out of stock

2

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

NUT, SPRING (2E9)

90183-05013-00

1

$7.23

In stock

6

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

9

BUMPER, FRONT 2

8M6-77512-00-00

1
Out of stock

10

BUMPER, FRONT 1

8M6-77511-00-00

1
Out of stock

11

BUMPER, FRONT 3

8M6-77513-00-00

1
Out of stock

12

BUMPER, FRONT 4

8M6-77514-00-00

1
Out of stock

13

SPACER, BUMPER

8M6-77529-00-00

1
Out of stock

14

COLLAR (420)

90387-06241-00

1

$6.18

In stock

15

NUT, NYLON

95707-06300-00

1

$3.20

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

END, BUMPER

8M6-77523-00-00

1
Out of stock

18

END, BUMPER

8M6-77524-00-00

1
Out of stock

19

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

20

FLAP

8V9-77595-00-00

1
Out of stock

21

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

22

BUMPER, REAR 1

8M6-77541-00-00

1
Out of stock

23

WASHER 1

8M6-77525-01-00

1
Out of stock

24

WASHER 2

8M6-77526-01-00

1
Out of stock

25

WASHER, PLATE(47X)

90201-121J0-00

—

$5.46

In stock

26

NUT, NYLON

95707-10300-00

—

$6.68

In stock

27

—

$3.00

In stock

28

SCREW, BIND (J17)

98980-06020-00

—

$6.68

In stock

29

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

32

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

33

BUMPER, REAR 2

8M6-77542-00-00

1
Out of stock

34

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

35

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

36

NUT, NYLON

95707-05300-00

—

$2.74

In stock

37

BUMPER, REAR 3

8M6-77543-00-00

1
Out of stock

38

BUMPER, REAR 4

8M6-77544-00-00

1
Out of stock

39

SCREW, BINDING

98907-05012-00

—
Out of stock

40

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

41

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

42

SCREW, BINDING

98907-06025-00

—

$6.18

In stock

43

NUT, NYLON

95707-06300-00

1

$3.20

In stock

44

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

45

PROTECTOR 1 (8M6-77551-00)

8M6-77551-01-00

1
Out of stock

46

PROTECTOR 2

8M6-77552-00-00

1
Out of stock

47

RIVET (8M6)

90269-04025-00

—
Out of stock

48

WASHER, PLATE(26H)

90201-044H9-00

—

$6.68

In stock

49

PROTECTOR 3

8M6-77553-00-00

1
Out of stock

50

PROTECTOR 4

8M6-77554-00-00

1
Out of stock

51

EMBLEM 14

8M6-77369-00-00

1
Out of stock

52

PROTECTOR 6

8R9-77556-00-00

1
Out of stock

53

PROTECTOR 7

8M6-77557-00-00

1
Out of stock

54

STAY 1

8M6-77535-00-00

1
Out of stock

55

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

56

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

57

BOLT (661)

97013-06012-00

—

$4.71

In stock

58

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

59

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

60

PATCH 7

8M6-21967-00-00

1
Out of stock
