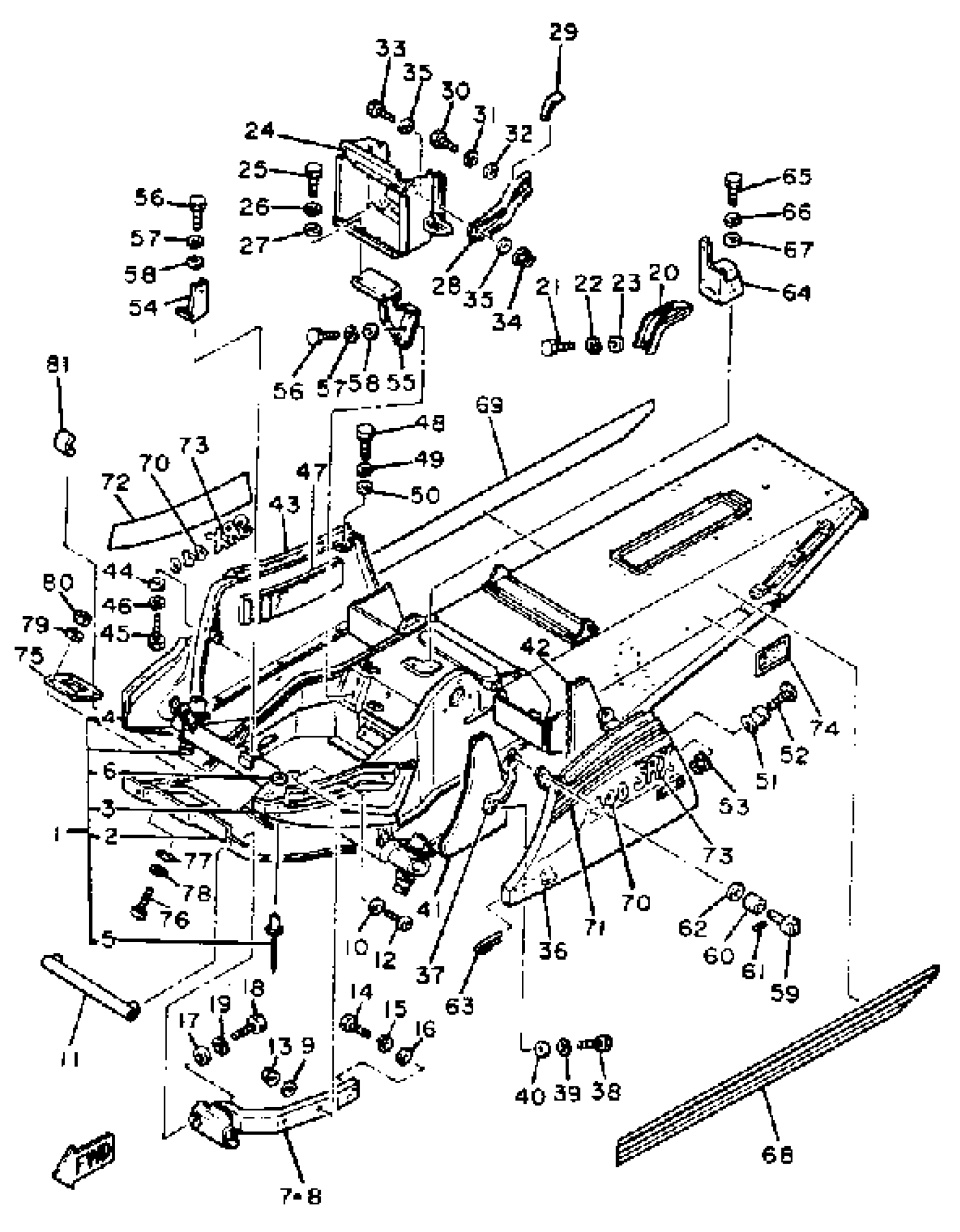

1981 Yamaha SRX440E Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8M6-21910-01-00)

1
Out of stock

2

. PANEL, SUB FRAME 1

8M6-21912-00-00

1
Out of stock

3

. HOOD 1

8M6-21982-00-00

1
Out of stock

4

. HOOD 2

8M6-21983-00-00

1
Out of stock

5

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

6

WASHER, PLATE

90201-04027-00

1
Out of stock

7

BRACKET, FRT BMPR 3

8M6-2194Y-00-00

1
Out of stock

8

BRACKET, FRT BMPR 4

8M6-2195Y-00-00

1
Out of stock

9

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

10

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

11

BRACKET, FRT BMPR 7

8M6-2191Y-00-00

1
Out of stock

12

SCREW, BIND(J39)

98980-06030-00

1

$5.62

In stock

13

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

14

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

CLAMP 1

8M6-12491-00-00

1
Out of stock

21

BOLT (661)

97013-06012-00

—

$4.71

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

24

DUCT

8M6-12661-00-00

1
Out of stock

25

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

26

WASHER, SPRING

92907-06100-00

—
Out of stock

27

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

28

STAY, RADIATOR

(8M6-12464-00-00)

1
Out of stock

29

DAMPER 1

8M6-77319-00-00

1
Out of stock

30

BOLT (661)

97013-06012-00

—

$4.71

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

34

NUT, NYLON

95707-06300-00

—

$3.20

In stock

35

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

36

HOOD ASSEMBLY 3

8M6-2197A-00-00

1
Out of stock

37

PROTC, AJST SCRW 1

8M6-2194T-00-00

1
Out of stock

38

BOLT (661)

97013-06012-00

—

$4.71

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

41

DAMPER, NOISE 11

8M6-77271-00-00

1
Out of stock

42

DAMPER, NOISE 12

8M6-77272-00-00

1
Out of stock

43

HOOD ASSEMBLY 4

8M6-2198A-00-00

1
Out of stock

44

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

45

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

46

WASHER, SPRING

92907-06100-00

—
Out of stock

47

DAMPER, NOISE 13

8M6-77273-00-00

1
Out of stock

48

BOLT (661)

97013-06012-00

—

$4.71

In stock

49

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

50

WASHER, PLATE

90201-06M08-00

1
Out of stock

51

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock

52

SCREW, BINDING

98907-06030-00

—

$5.94

In stock

53

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

54

BRACKET 1

(8M6-2172K-00-00)

1
Out of stock

55

BRACKET 2

(8M6-2172L-00-00)

1
Out of stock

56

BOLT (661)

97013-06012-00

—

$4.71

In stock

57

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

58

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

59

KNOB

8A5-77324-00-00

1
Out of stock

60

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

61

PIN, SPRING (91609-40025-00)

91609-40024-00

1
Out of stock

62

WASHER, PLATE

90201-08104-00

1
Out of stock

63

PIN, HINGE

8A7-77157-00-00

1
Out of stock

64

BRACKET, FUEL TNK 2

8M6-2194R-00-00

1
Out of stock

65

BOLT (661)

97013-06012-00

—

$4.71

In stock

66

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

67

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

68

EMBLEM 1

8M6-77351-00-00

1
Out of stock

69

EMBLEM 2

8M6-77352-00-00

1
Out of stock

70

EMBLEM 3

(8M6-77353-00-00)

1
Out of stock

71

EMBLEM 4

(8M6-77354-00-00)

1
Out of stock

72

EMBLEM 5

(8M6-77355-00-00)

1
Out of stock

73

EMBLEM 6

(8M6-77356-00-00)

1
Out of stock

74

INDICATOR 2

8K2-77742-00-00

1
Out of stock

75

PANEL, SUB FRAME 6

8M6-21917-00-00

1
Out of stock

76

SCREW, PAN

98517-05012-00

—

$3.91

In stock

77

WASHER(1RW)

92907-05600-00

—
Out of stock

78

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

79

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

80

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

81

STRIP, WEATHER 2

8M6-77162-00-00

1
Out of stock

81

GRAPHIC SET

(8M6-W0070-10-00)

1
Out of stock
