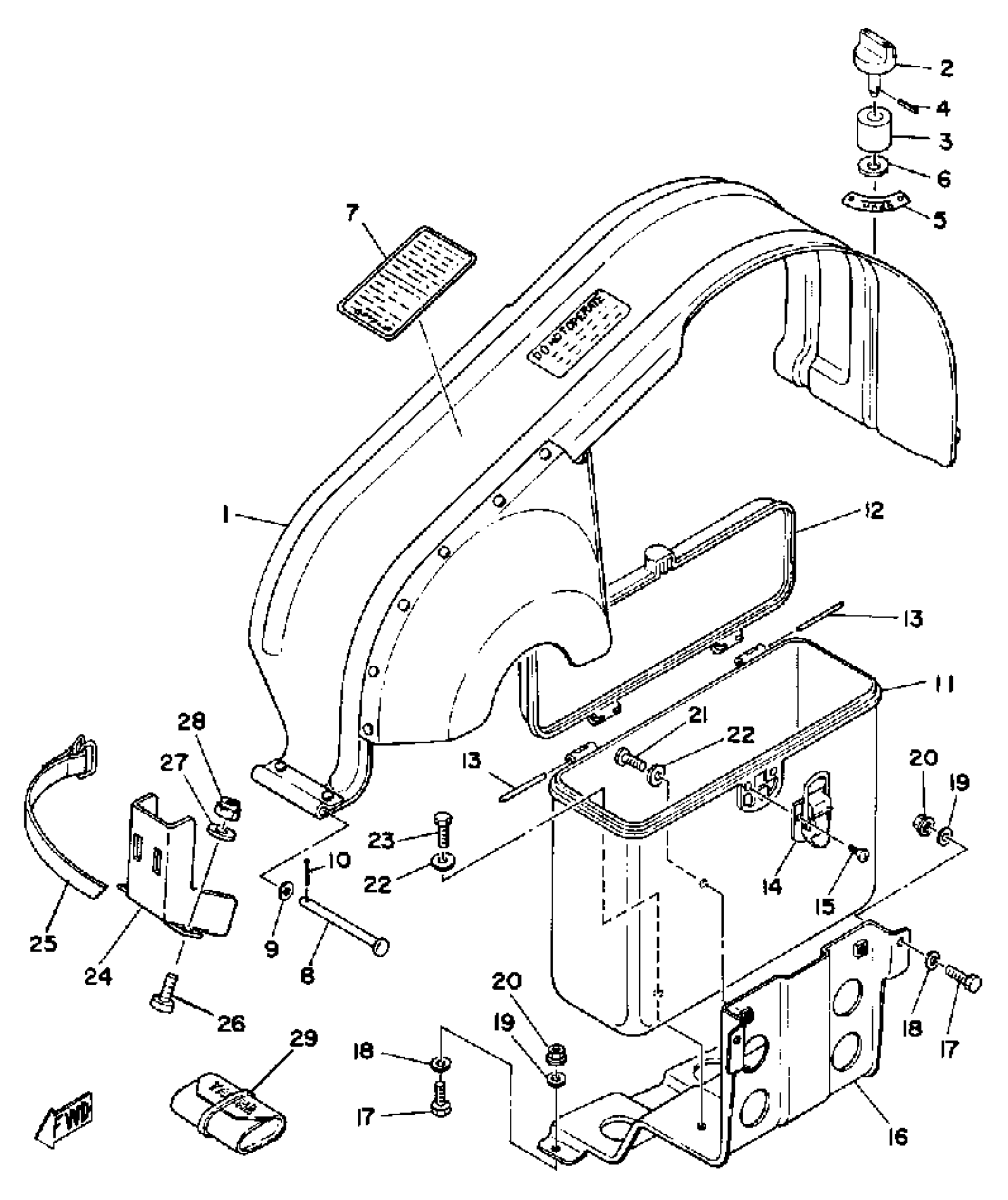

Find the part on the Guard Luggage Box diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Guard Luggage Box Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

8F2-77311-00-00

1
Out of stock

2

KNOB

(829-77324-00-00)

1
Out of stock

3

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

4

PIN, SPRING (91609-40025-00)

91609-40024-00

1
Out of stock

5

EMBLEM 11

(829-77366-00-00)

1
Out of stock

6

WASHER, PLATE

90201-08104-00

1
Out of stock

7

INDICATOR 3

(8K2-77743-00-00)

1
Out of stock

8

PIN(8E7)

91701-06082-00

1
Out of stock

9

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

10

PIN, COTTER

91490-20025-00

1
Out of stock

11

LUGGAGE BOX

(8E7-77391-00-00)

1
Out of stock

12

COVER, LUGGAGE BOX

8E7-77392-00-00

1
Out of stock

13

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

14

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

1
Out of stock

15

SCREW, FLAT

98707-03008-00

1
Out of stock

16

STAY 1

(8E7-77397-00-00)

1
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

18

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

19

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

20

NUT, NYLON

95707-06300-00

—
Out of stock

21

SCREW, BIND(J45)

98980-06012-00

—
Out of stock

22

WASHER, PLATE

90201-06747-00

—
Out of stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

24

STAY, BELT

(8G9-77338-00-00)

1
Out of stock

25

BAND, SERVICE BAG

(8G9-77332-00-00)

1
Out of stock

26

SCREW, BIND

98903-05016-00

1
Out of stock

27

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

28

NUT, NYLON

95707-05300-00

—
Out of stock

29

TOOL KIT (8G6-28100-10)

8G6-28100-00-00

1
Out of stock
