1980 Yamaha SRX440D Frame Diagram

← All diagrams

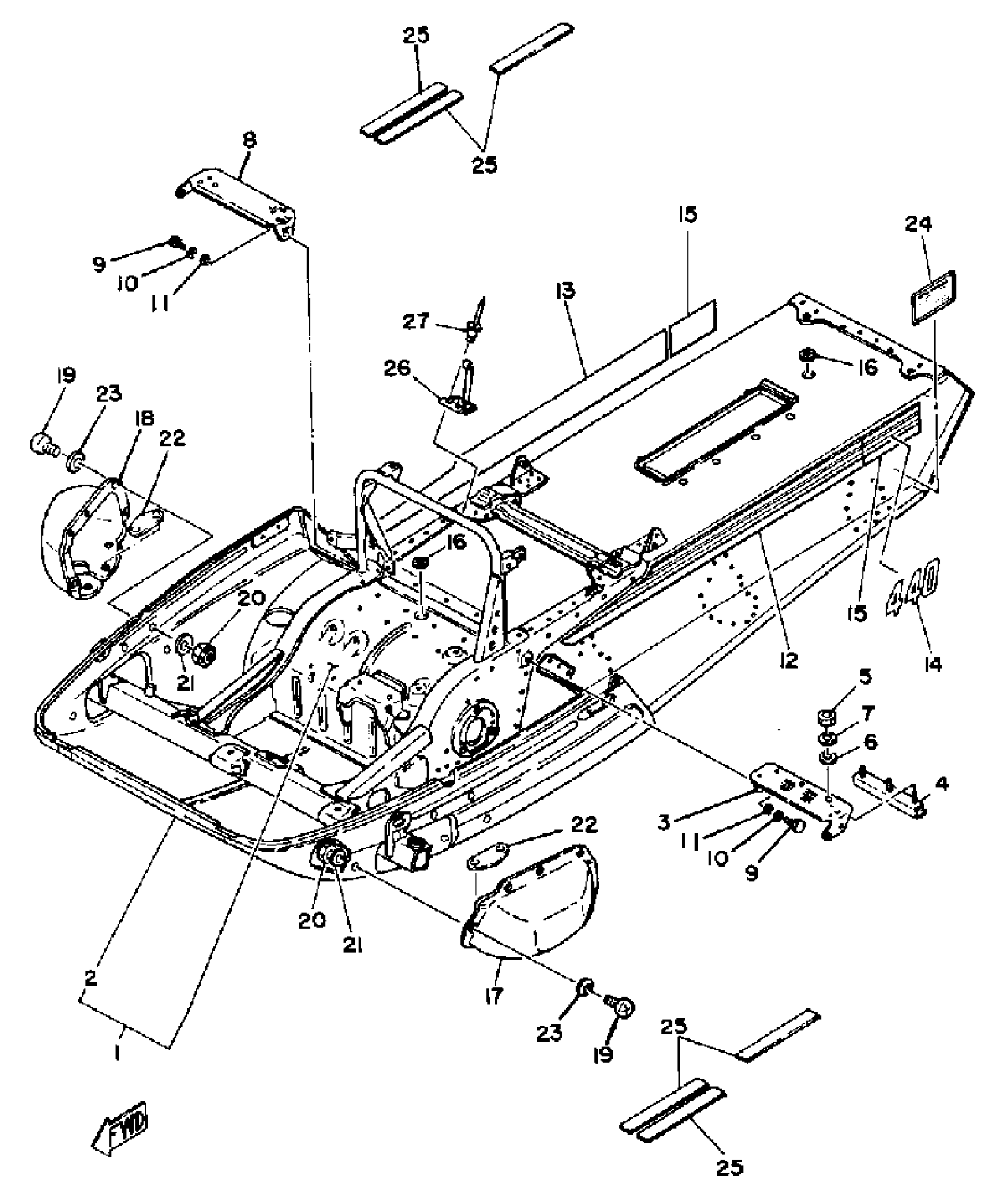

Find the part on the Frame diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8K2-21910-00-00)

1
Out of stock

2

. PANEL, SUB FRAME1

8K2-21912-09-00

1
Out of stock

3

BRACKET 3

8G9-23883-00-00

1
Out of stock

4

PROTC, WIRE HARNESS

(8G9-82589-00-00)

1
Out of stock

5

NUT(6TA)

95307-04600-00

1

$6.69

In stock

6

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

BRACKET 4

8A5-23884-00-00

1
Out of stock

9

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

EMBLEM 1

(8K2-77351-00-00)

1
Out of stock

13

EMBLEM 2

8K2-77352-00-00

1
Out of stock

14

EMBLEM 3

8K2-77353-00-00

1
Out of stock

15

EMBLEM 11

(8K2-77366-00-00)

1
Out of stock

16

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

17

HOOD 1

8G9-21982-00-00

1
Out of stock

18

HOOD 2

8G9-21983-00-00

1
Out of stock

19

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

20

NUT, NYLON

95707-05300-00

—

$2.74

In stock

21

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

22

PATCH 10

(8G9-21997-00-00)

1
Out of stock

23

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

24

INDICATOR 2

8K2-77742-00-00

1
Out of stock

25

COVER, FOOTRESTOPTIONAL PARTS

8G6-27413-00-00

1
Out of stock

26

BRACKET 5

8G9-23885-00-00

1
Out of stock

27

RIVET (856)

90267-48014-00

—
Out of stock
