1980 Yamaha SRX440D Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

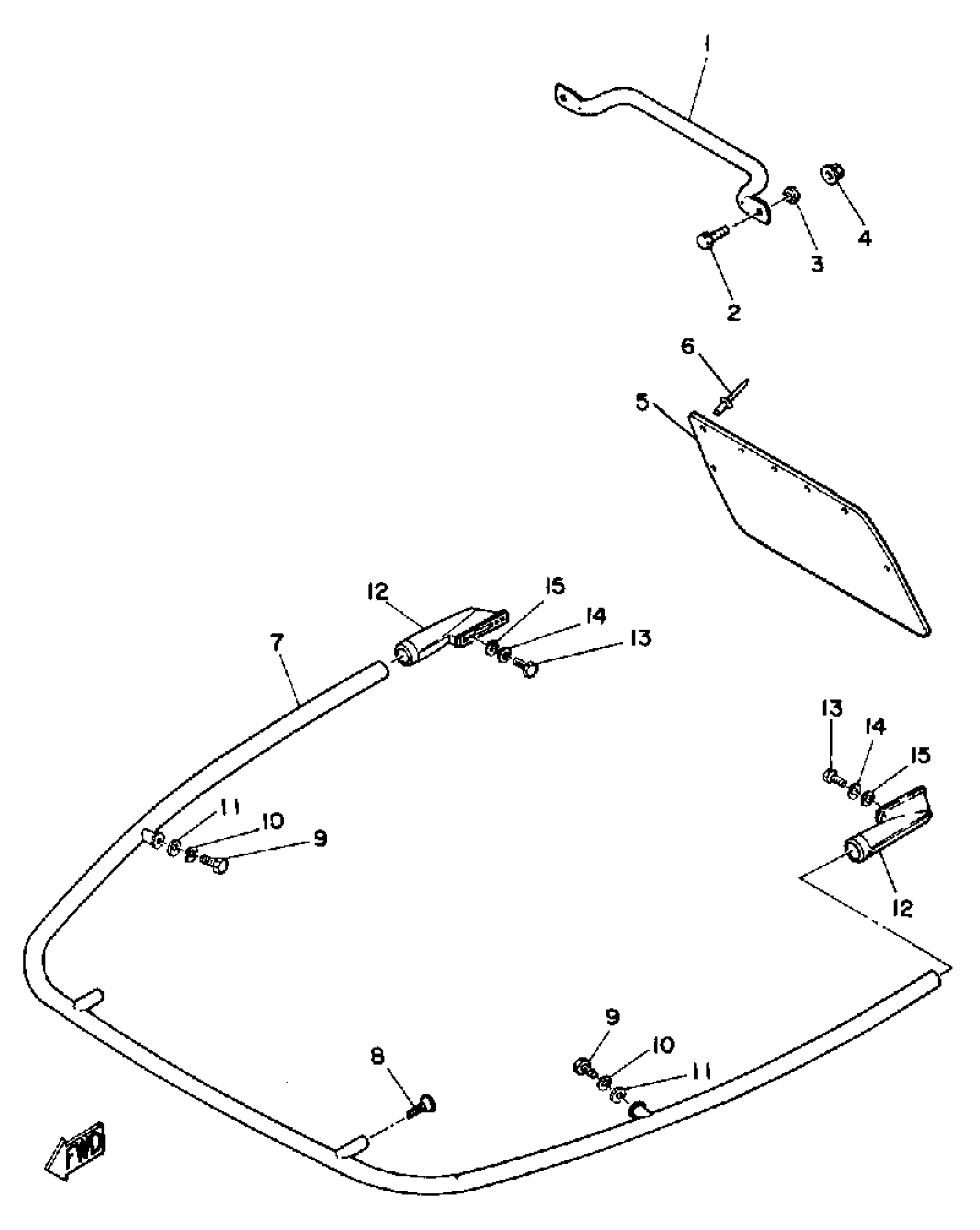

1980 Yamaha SRX440D Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, REAR 1

8E7-77541-00-00

1
Out of stock

2

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

NUT, NYLON

95717-08300-00

1

$2.57

In stock

5

FLAP

8V8-77595-00-00

1
Out of stock

6

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

7

FRONT BUMPER

8J0-77510-00-00

1
Out of stock

8

SCREW,FLAT HEAD

98707-08040-00

1
Out of stock

9

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

END, BUMPER

878-77523-01-00

1
Out of stock

13

BOLT HEXAGON

97001-05018-00

1
Out of stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock
