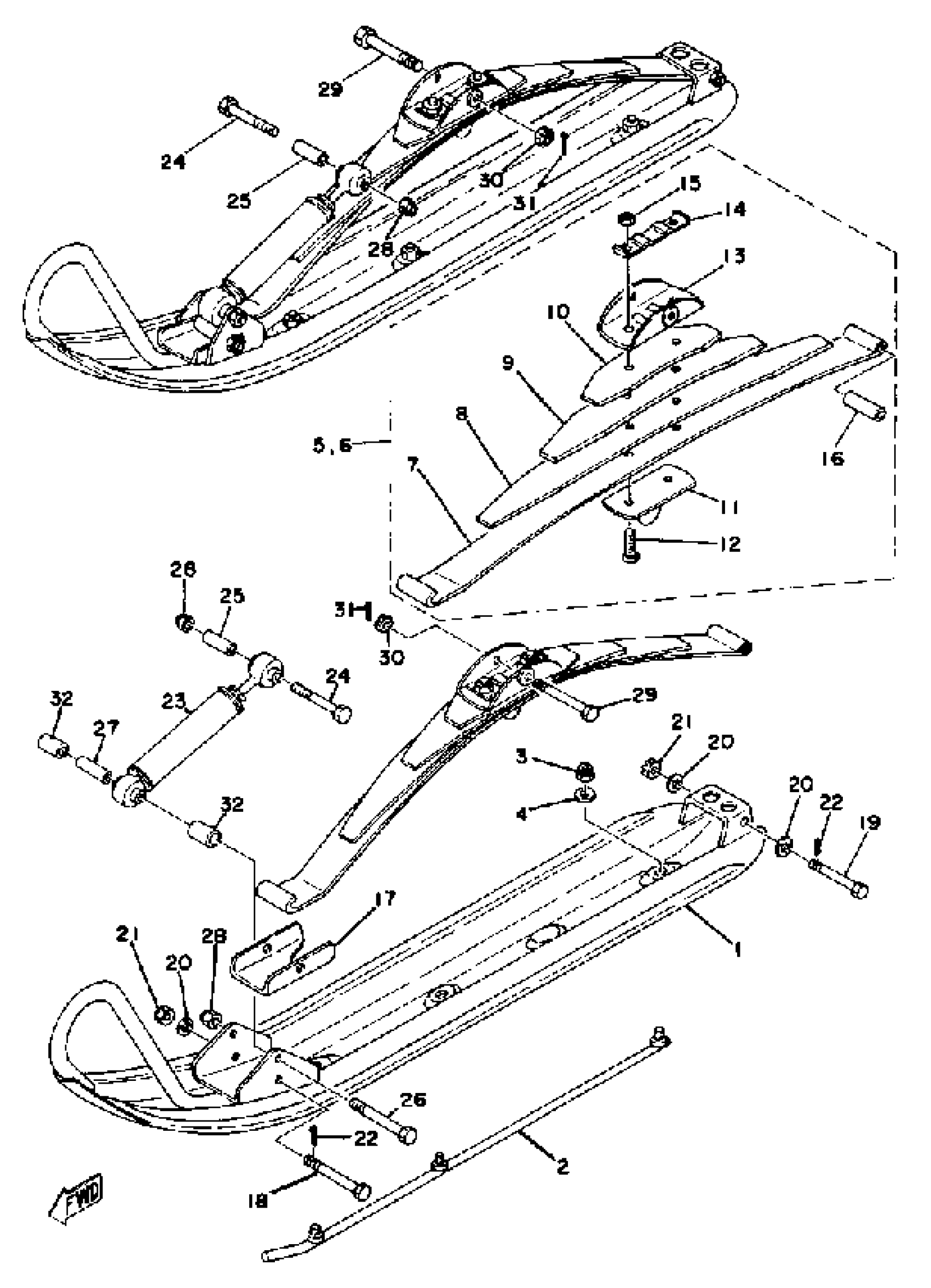

Find the part on the SKI diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SRX440B SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8G9-23710-00-00

1
Out of stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

SPRING ASSEMBLY 1

8G9-23760-00-00

1
Out of stock

6

SPRING ASSEMBLY 2

(8G9-23770-00-00)

1
Out of stock

7

LEAF 1

888-23761-10-00

1
Out of stock

8

LEAF 2

865-23762-10-00

1
Out of stock

9

LEAF 3

899-23763-10-00

—

$33.34

In stock

10

LEAF 4

899-23764-10-00

1
Out of stock

11

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

12

. BOLT

90109-105E7-00

1
Out of stock

13

. SADDLE 1

888-23766-10-00

1
Out of stock

14

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

15

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

16

COLLAR

90387-08478-00

1
Out of stock

17

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

18

BOLT, WITH HOLE

90102-08025-00

1
Out of stock

19

BOLT, PIN HOLE (8A7)

90102-08027-00

—

$7.35

In stock

20

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

21

NUT, SLOTTED

95307-08900-00

1
Out of stock

22

PIN, COTTER

91490-20025-00

—

$1.31

In stock

23

SHOCK ABSORBER ASSEMBLY

8G9-23350-00-00

1
Out of stock

24

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

25

COLLAR (878)

90387-08262-00

—

$9.02

In stock

26

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

27

COLLAR (864)

90387-08224-00

—

$7.52

In stock

28

NUT, NYLON

95717-08300-00

—

$2.57

In stock

29

BOLT, WITH HOLE

90102-12022-00

1
Out of stock

30

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

COLLAR

90387-12484-00

1
Out of stock
