1978 Yamaha SRX440B Brake Diagram

← All diagrams

Find the part on the Brake diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

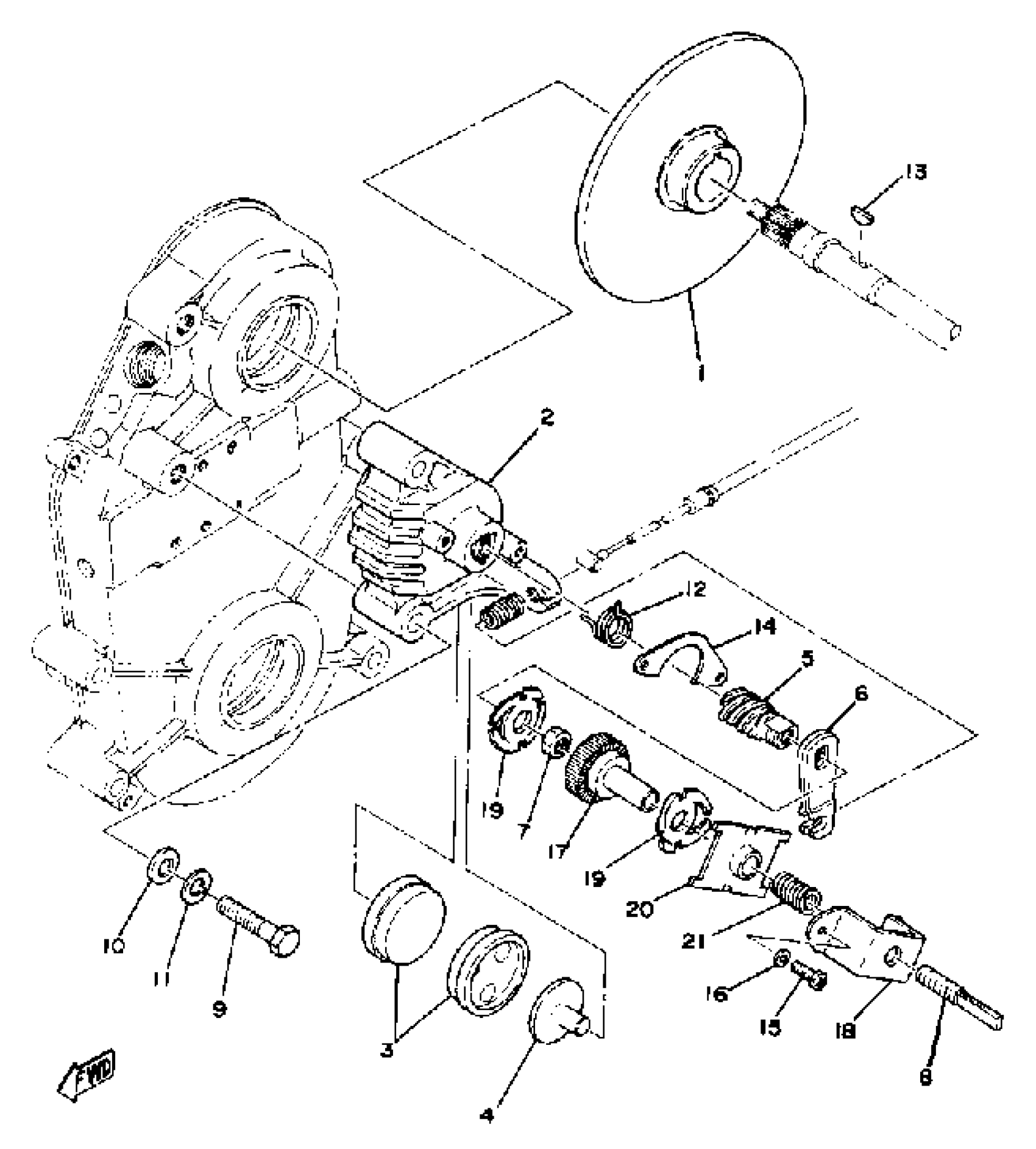

1978 Yamaha SRX440B Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

888-25831-00-00

1
Out of stock

2

BODY, CALIPER 1

8A7-25731-00-00

1
Out of stock

3

PAD, CALIPER 2

89J-25811-00-00

1

$23.38

In stock

4

PLATE, BACK UP

878-25733-00-00

1
Out of stock

5

CAM

(8H0-25728-00-00)

1
Out of stock

6

LEVER, BRAKE

878-25726-00-00

1
Out of stock

7

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

8

SCREW, SPEC''L SHAPE

90149-08122-00

1
Out of stock

9

BOLT

97012-10060-00

1
Out of stock

10

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

SPRING, TORSION

90508-35293-00

1
Out of stock

13

KEY

8J7-25848-00-00

1

$4.77

In stock

14

HOOK, SPRING

(8A7-25736-00-00)

1
Out of stock

15

SCREW, PAN

98507-06014-00

1

$6.18

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

RATCHET, ADJUSTING

(8H0-25771-00-00)

1
Out of stock

18

BRACKET, ADJUSTING

(8H0-25722-00-00)

1
Out of stock

19

LOCK, ONE WAY 1

(8H0-25772-00-00)

1
Out of stock

20

NO LONGER AVAILABLE

8H0-25773-00-00

1
Out of stock

21

SPRING, COMPRESSION

(90501-12501-00)

1
Out of stock
