1976 Yamaha SRX440 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

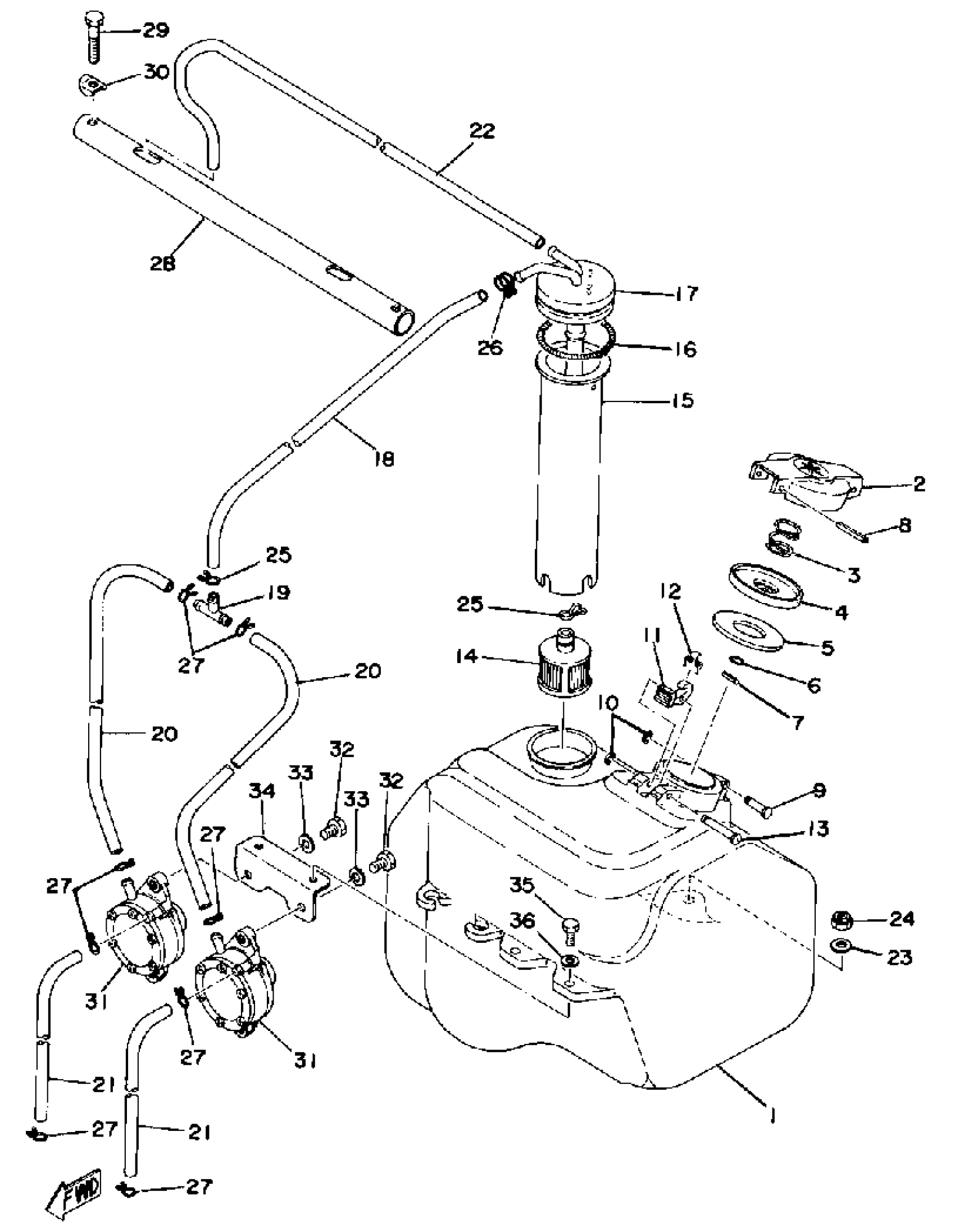

1976 Yamaha SRX440 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL PUMP ASSEMBLY

(8A7-24410-00-00)

1
Out of stock

2

BODY, CAP

(8A7-24611-00-00)

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

DISK,CAP

813-24613-01-00

1

$18.71

In stock

5

GASKET, CAP

256-24612-00-00

1
Out of stock

6

O-RING (256)

93210-04122-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

10

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

11

HOOK

83M-24628-00-00

1

$19.68

In stock

12

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

13

PIN (813)

90249-03017-00

1

$2.25

In stock

14

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

15

PIPE, SUCTION 2

865-24336-00-00

1
Out of stock

16

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

17

PIPE, SUCTION 1

(8A7-24335-00-00)

1
Out of stock

18

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

19

JOINT, PIPE (1)

807-24376-00-00

—

$4.68

In stock

20

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

—

$8.80

In stock

21

HOSE (806-24319-00)

90446-09051-00

1
Out of stock

22

HOSE

(90446-09069-00)

1
Out of stock

23

WASHER, PLATE

90201-08104-00

1
Out of stock

24

NUT, U

95617-08100-00

—

$6.78

In stock

25

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

26

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

27

CLIP (8L2)

90467-08017-00

—

$7.51

In stock

28

BAND, TNK FITTING 1

(878-24173-01-00)

1
Out of stock

29

BOLT (682)

97095-06040-00

—

$2.36

In stock

30

NO LONGER AVAILABLE

90215-06048-00

1
Out of stock

31

FUEL PUMP ASSEMBLY

(8A7-24410-00-00)

1
Out of stock

32

BOLT(62E)

97013-08012-00

—

$2.48

In stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

34

BRACKET, FUEL PUMP

(8A7-24491-01-00)

1
Out of stock

35

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

36

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
