2016 Yamaha SRX120 (SRX120GL) Steering Diagram

← All diagrams

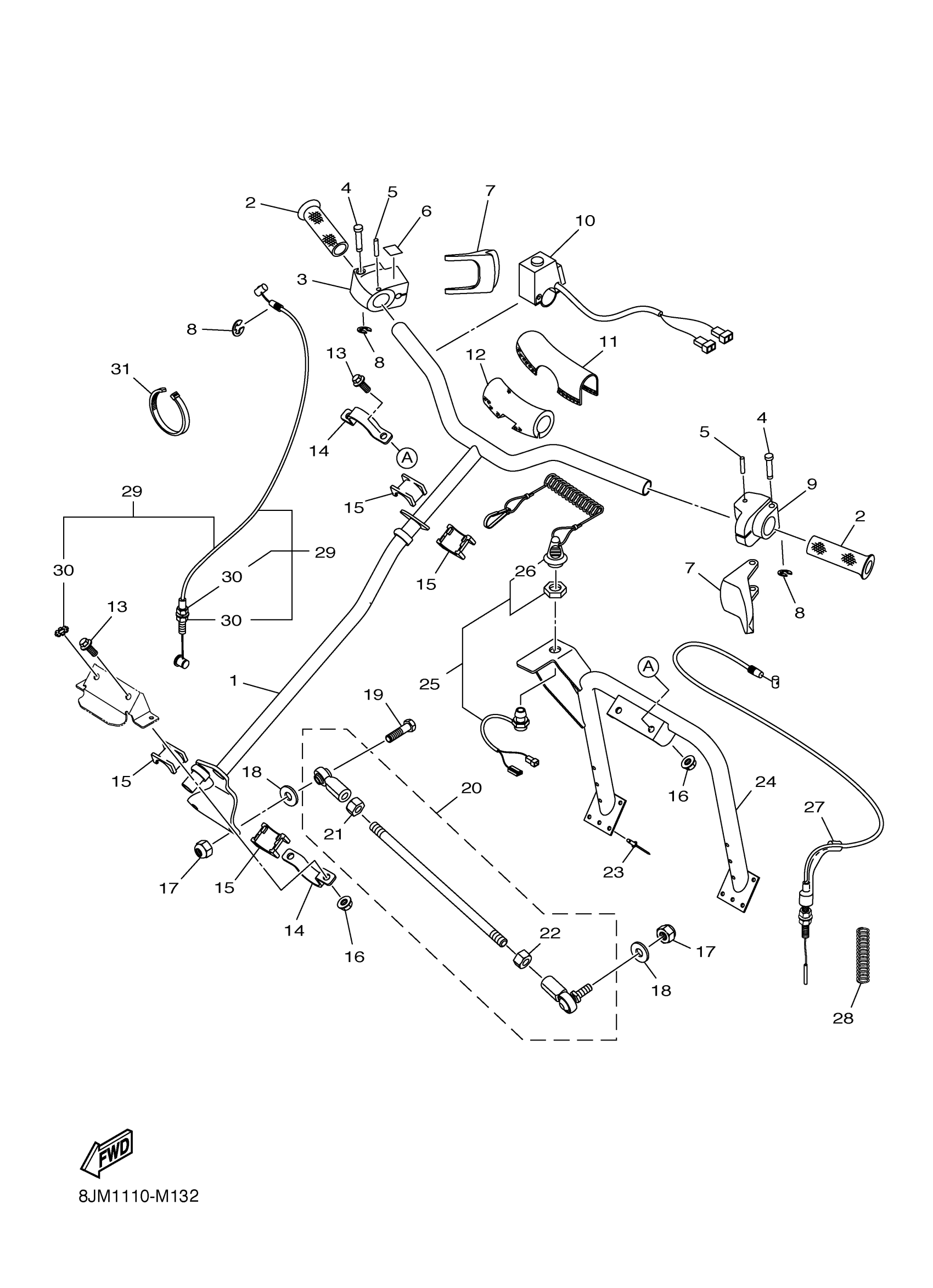

Find the part on the Steering diagram for your 2016 Yamaha SRX120 (SRX120GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SRX120 (SRX120GL) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

8JM-F3811-00-00

1
Out of stock

2

GRIP

8JM-F6241-00-00

1
Out of stock

3

HOLDER, LEVER 2

8JM-H2921-00-00

1
Out of stock

4

PIN, 1/4D X 1 5/8

8JM-RAY07-00-00

1
Out of stock

5

PIN, 4

8JM-RAY08-00-00

1
Out of stock

6

DECAL,SWITCH-EMERGENCY STOP

8JM-H2108-00-00

1
Out of stock

7

LEVER, CONTROL

8JM-H3912-00-00

1
Out of stock

8

RING RETAINING

8JM-RAH02-00-00

1
Out of stock

9

HOLDER, LEVER 1

8JM-H2911-00-00

1
Out of stock

10

SWITCH, STOP-ENGINE

8JM-H2575-00-00

—
Out of stock

11

COVER, HANDLEBAR PAD

8JM-F3818-00-00

1
Out of stock

12

PAD, HANDLEBAR

8JM-F3817-00-00

1
Out of stock

13

SCREW,CAP-HFH 1/4-20X0.750 Z&Y

8JM-RA106-00-00

—
Out of stock

14

HOLDER, BEARING

8JM-F3872-00-00

1
Out of stock

15

BEARING, STEERING

8JM-F3812-00-00

—
Out of stock

16

NUT, FLG. LOCKING

8JP-RA357-00-00

—
Out of stock

17

NUT,FLEX-LOC 5/16-24UNF Z&Y

8JM-RA306-00-00

—
Out of stock

18

WASHER,FLAT-5/16X.688X.065 Z&Y

8JM-RA403-00-00

—
Out of stock

19

BOLT, HEXAGON 5/16-24X1.5

8JM-RA113-00-00

1
Out of stock

20

TIE ROD ASSY - 06 F 120

8JM-F3830-00-00

—
Out of stock

21

. NUT, HEXAGON 5/16-24 LH

8JM-RA307-00-00

1
Out of stock

22

.. NUT, HEXAGON 5/16-24

8JM-RA308-00-00

1
Out of stock

23

RIVET, 5

8JP-RA514-00-00

—
Out of stock

24

STEERING GATE COMP.

8JM-F3870-00-00

1
Out of stock

25

STOP SWITCH ASSY

8JM-H2550-00-00

—
Out of stock

26

.. CAP, SWITCH

8JM-H2552-00-00

1
Out of stock

27

CABLE,BRAKE

8JM-F6340-00-00

—
Out of stock

28

SPRING, BRAKE RETURN

8JM-F5735-00-00

—
Out of stock

29

CABLE, THROTTLE 1

8JM-F6311-00-00

1
Out of stock

30

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

—
Out of stock

31

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

—
Out of stock
