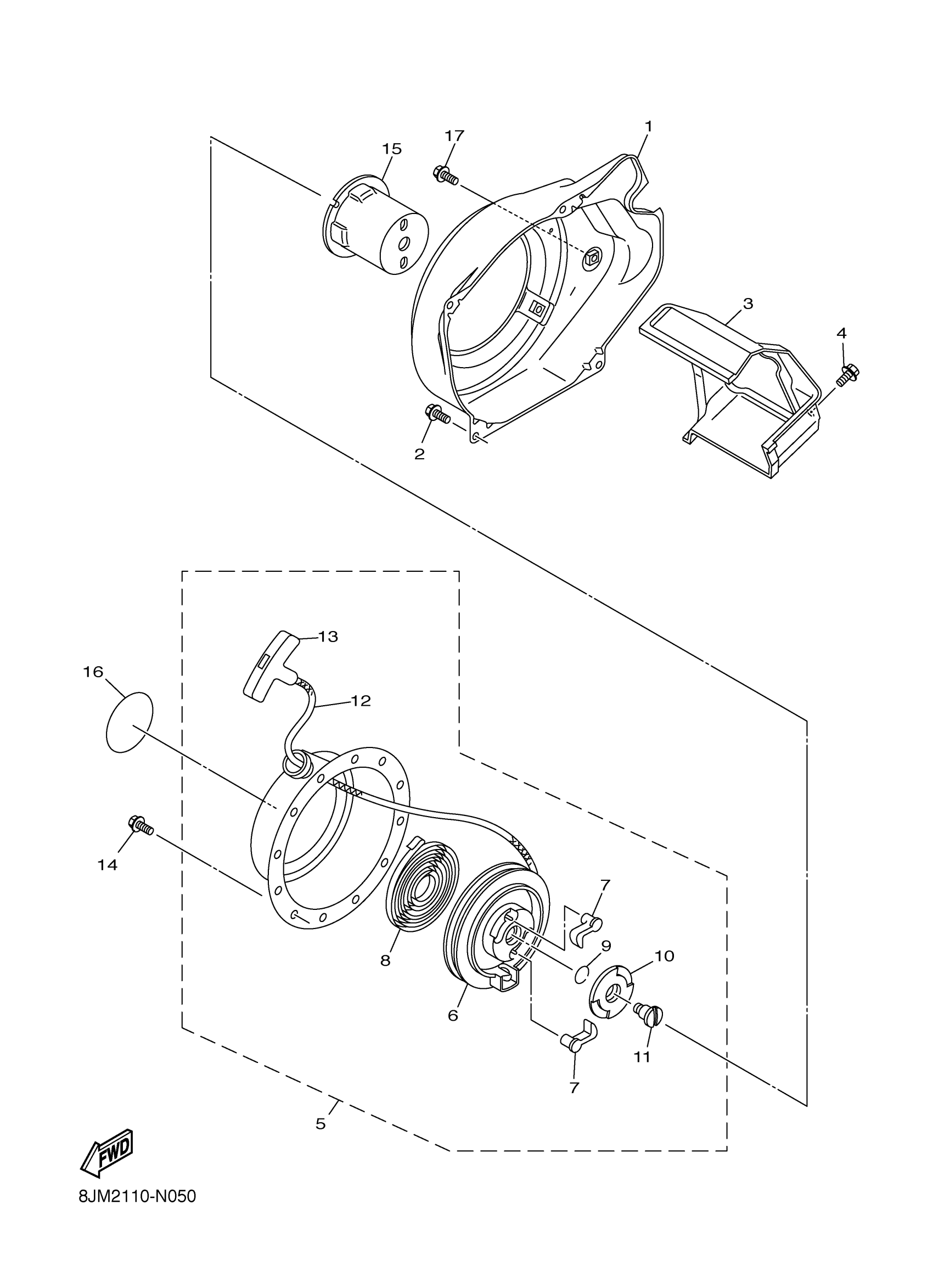

Yamaha SRX120GL (SRX120) 8JM8 2016 AIR SHROUD STARTER Diagram

#

Description
Price

1

CASE, FAN

7CN-E2621-01-00

$43.14

2

BOLT, FLANGE

95817-06012-00

$1.40

3

AIR SHROUD, CYLINDER 1

7CN-E2651-01-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.40

5

STARTER ASSY

7CN-E5710-70-00

$83.33

6

DRUM, SHEAVE

7CN-E5714-03-00

$23.82

7

PAWL, DRIVE

7CN-E5741-01-00

Unavailable

8

SPRING, STARTER

7CN-E5713-00-00

$21.89

9

SPRING, FRICTION

7CN-E5715-00-00

$1.42

10

PLATE, DRIVE

7CN-E5716-01-00

Unavailable

11

SCREW

7CN-E5793-00-00

$5.15

12

WIRE, STARTER

7CN-E5751-70-00

$14.32

13

HANDLE, STARTER

7CN-E5755-00-00

Unavailable

14

BOLT, FLANGE

95817-06008-00

$5.76

15

PULLEY, STARTER

7CN-E5723-01-00

Unavailable

16

EMBLEM

7CL-E2629-10-00

$4.67

17

BOLT, FLANGE

95817-06012-00

$1.40
