1973 Yamaha SR643B Rear Axle Diagram

← All diagrams

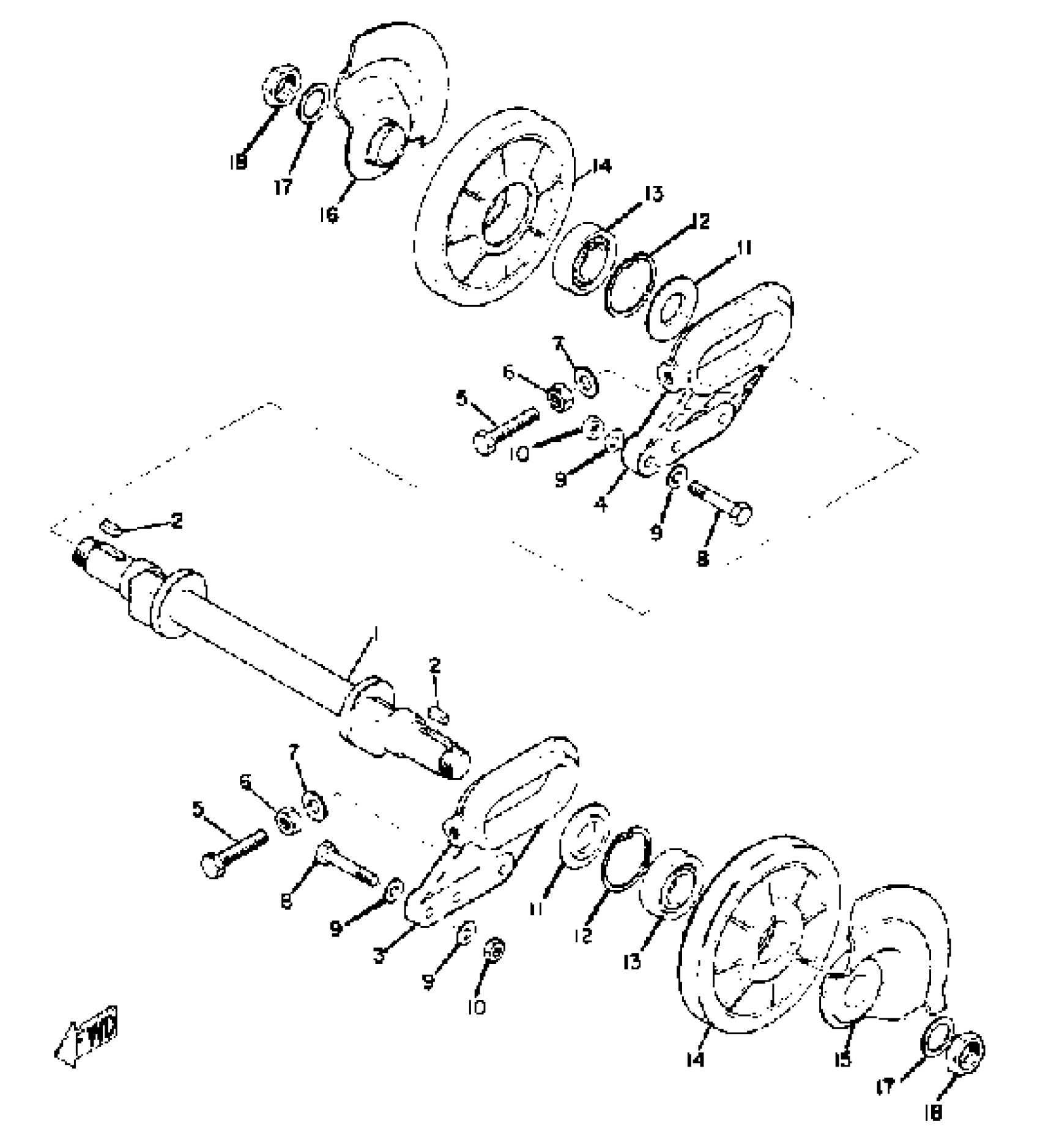

Find the part on the Rear Axle diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR643B Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR AXLE

(856-47520-00-00)

1
Out of stock

2

KEY, STRAIGHT

90282-05001-00

1

$7.75

In stock

3

SLIDER 1

(856-47441-00-00)

1
Out of stock

4

SLIDER 2

(856-47442-00-00)

1
Out of stock

5

BOLT

(90101-10124-00)

1
Out of stock

6

NUT(3BM)

95314-10600-00

1

$1.74

In stock

7

1

$3.00

In stock

8

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

11

PLATE

(856-47519-00-00)

1
Out of stock

12

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

13

BEARING

93306-20509-00

1

$27.45

In stock

14

WHEEL, GUIDE 2

(856-47535-00-00)

1
Out of stock

15

ARM, REAR PIVOT 1

(856-47361-00-00)

1
Out of stock

16

ARM, REAR PIVOT 2

(856-47362-00-00)

1
Out of stock

17

WASHER 810475810000

90208-22001-00

—

$7.35

In stock

18

NUT (821-47579-00)

90170-22094-00

—

$5.34

In stock
