1973 Yamaha SR643B Front Axle Diagram

← All diagrams

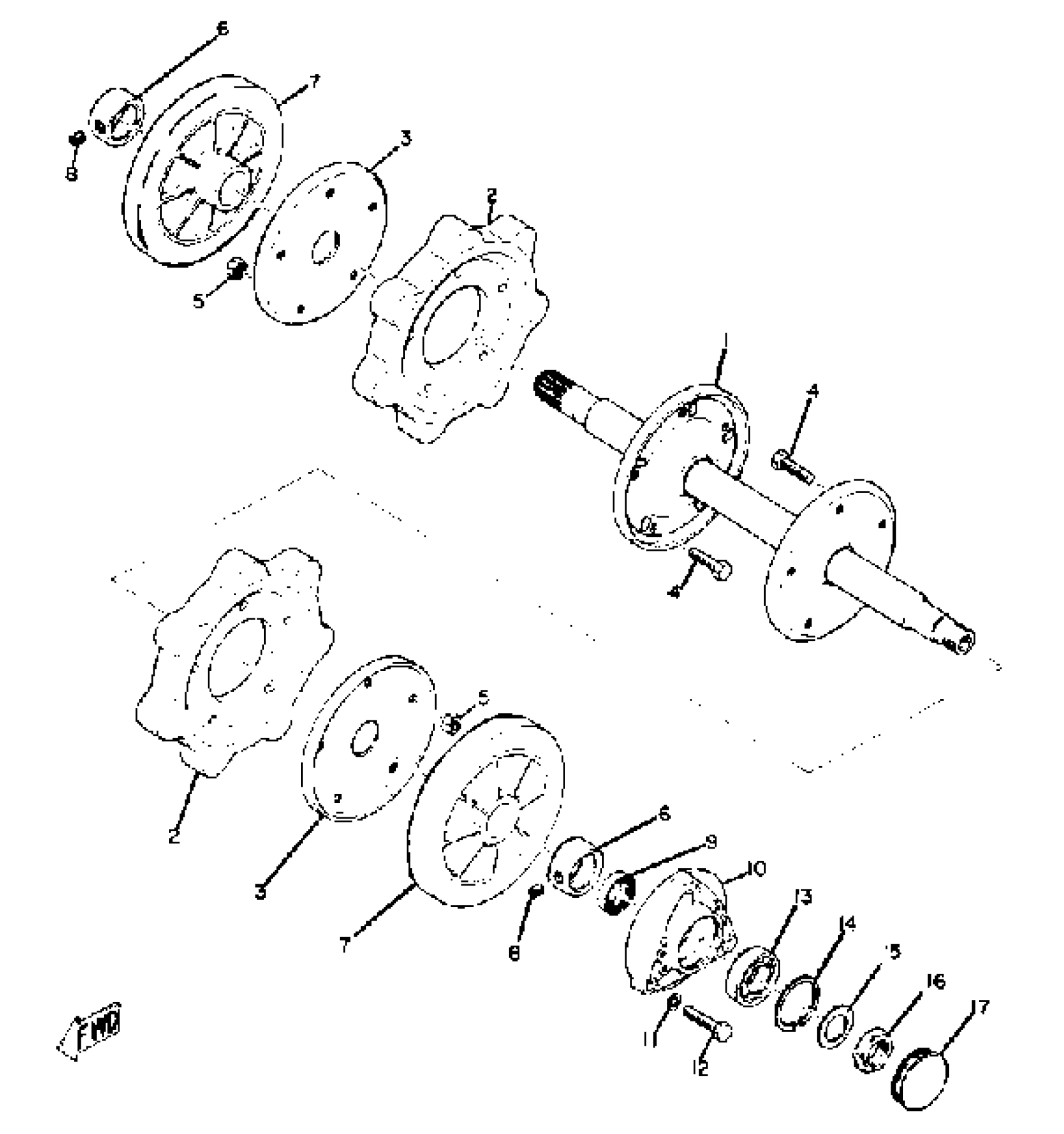

Find the part on the Front Axle diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR643B Front Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT AXLE

(856-47510-00-00)

1
Out of stock

2

WHEEL, SPROCKET 1

(856-47531-00-00)

1
Out of stock

3

RIM, SPROCKET WHL 2

(856-47522-00-00)

1
Out of stock

4

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

6

COLLAR

(856-47526-00-00)

1
Out of stock

7

WHEEL, GUIDE 1

(856-47534-00-00)

1
Out of stock

8

SCREW, SPEC''L SHAPE

(90149-08001-00)

1
Out of stock

9

OIL SEAL,SD-TYPE

93102-25332-00

1
Out of stock

10

HOUSING, FRONT AXLE

841-47551-00-00

1
Out of stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

BOLT

97013-08035-00

1

$4.80

In stock

13

BEARING

93306-00412-00

1
Out of stock

14

CIRCLIP, R-TYPE

93420-44029-00

1
Out of stock

15

WASHER 810475810000

90208-22001-00

1

$7.35

In stock

16

NUT (821-47579-00)

90170-22094-00

—

$5.34

In stock

17

CAP (NOT AVAIL)

810-47552-00-00

1
Out of stock
