1973 Yamaha SR643B Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

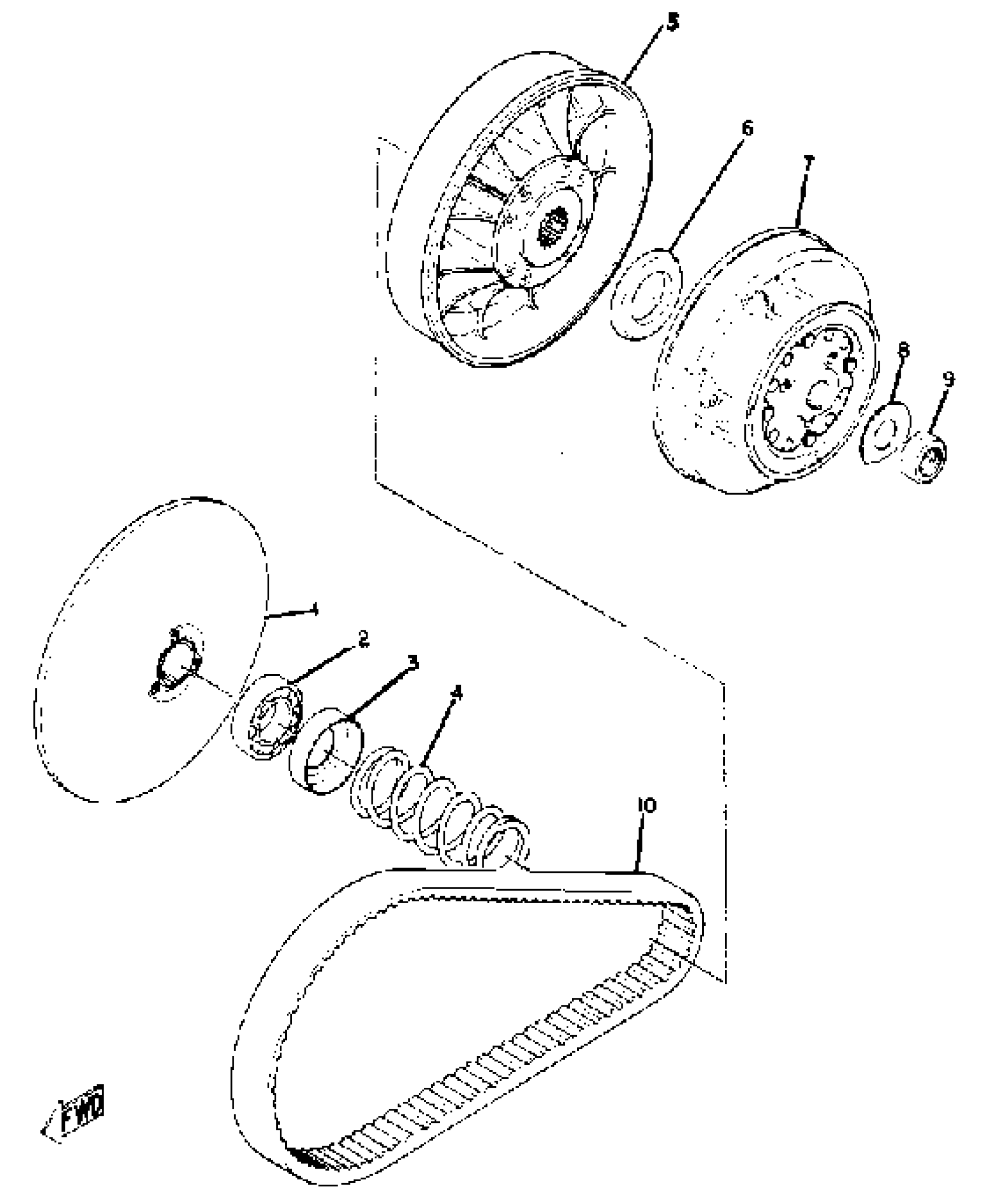

1973 Yamaha SR643B Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI FIXED SHEAVE

(858-17610-00-00)

1
Out of stock

2

BEARING

(93306-00603-00)

1
Out of stock

3

SEAT, SPRING

(836-17644-00-00)

1
Out of stock

4

UNAVAILABLE IN PRICE BOOK

(90501-55179-00)

1
Out of stock

5

PRI SLIDG SHEAVE

(858-17620-00-00)

1
Out of stock

5

TOOL

UNA-VAILA-BL-EI

1
Out of stock

6

CAM

(858-17623-01-00)

1
Out of stock

7

PRI SHV CAP

(858-17630-00-00)

1
Out of stock

8

WASHER, LOCK (856-17646-00)

90215-20091-00

1
Out of stock

9

NUT

95312-20700-00

1

$3.32

In stock

10

V-BELT

820-17641-01-00

1

$33.66

In stock
