1973 Yamaha SR643B C - D - I - Magneto Diagram

← All diagrams

Find the part on the C - D - I - Magneto diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

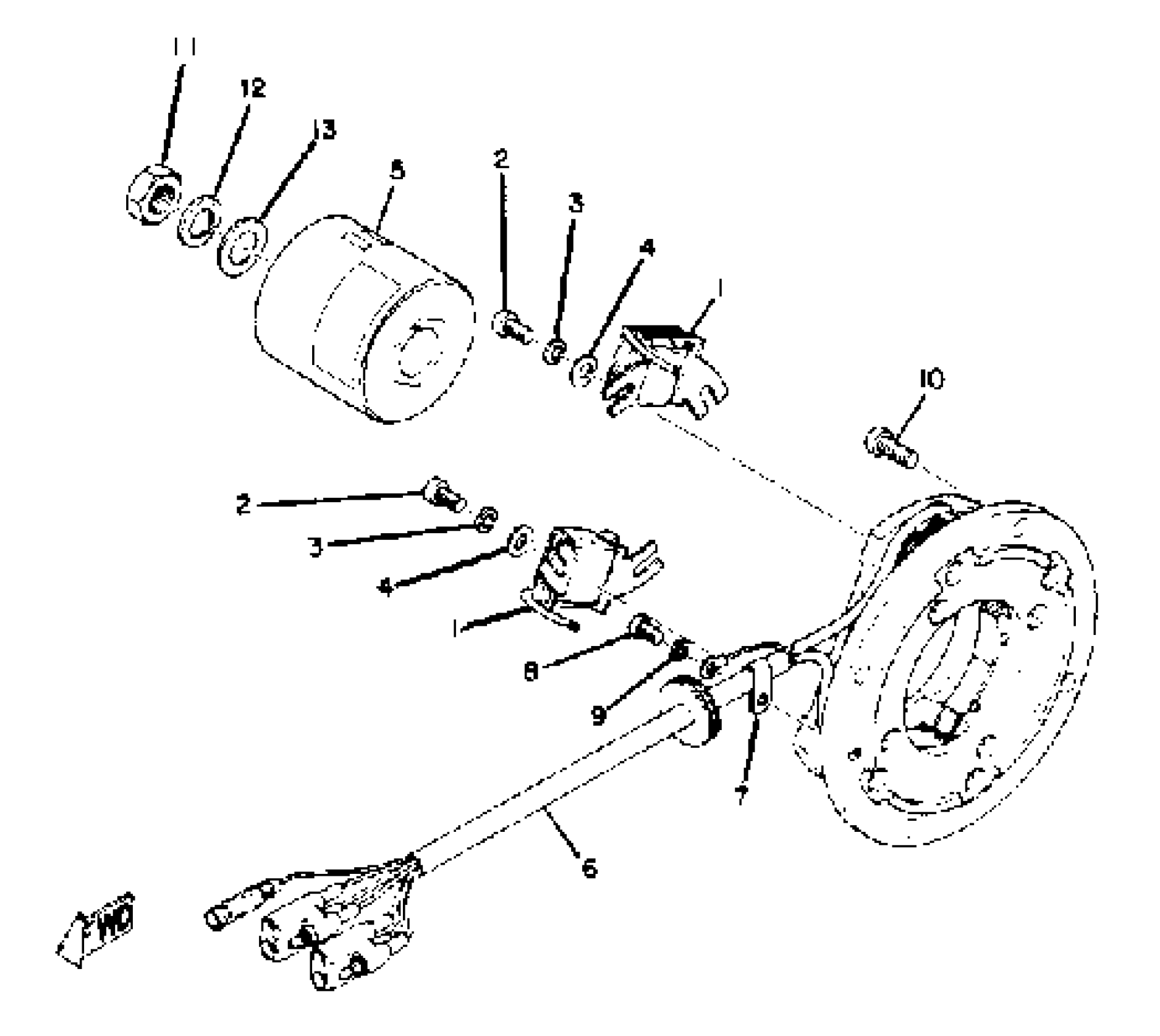

1973 Yamaha SR643B C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(857-85500-10-00)

1
Out of stock

1

COIL PULSER

(857-85543-10-00)

1
Out of stock

2

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

5

ROTOR ASSEMBLY

(857-85550-10-00)

1
Out of stock

6

LEAD WIRE ASSEMBLY

(857-85515-10-00)

1
Out of stock

7

. CLAMP

109-81328-11-00

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

12

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

13

WASHER, PLATE

(90201-12525-00)

1
Out of stock
