1973 Yamaha SR643B Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

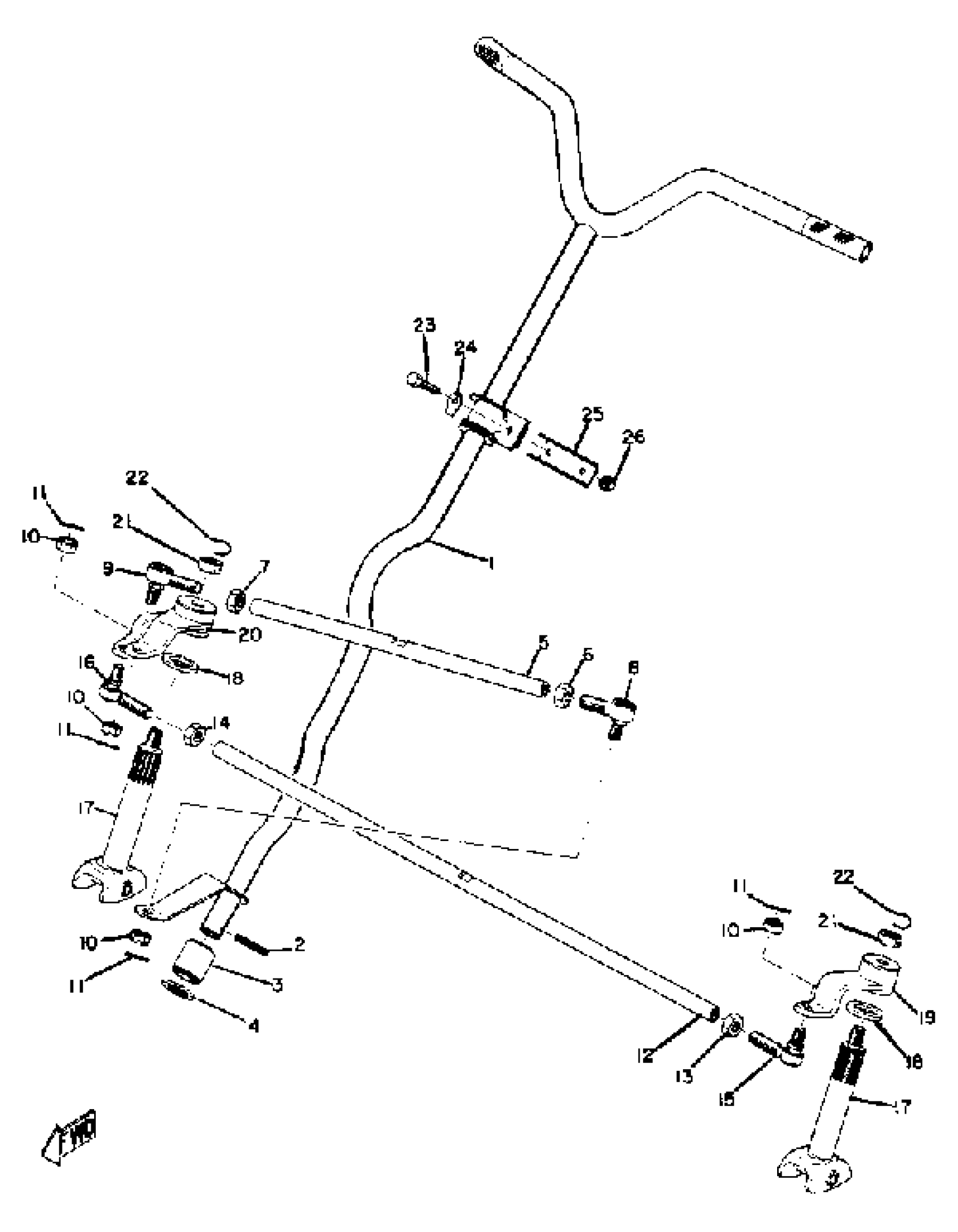

1973 Yamaha SR643B Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(856-23811-01-00)

1
Out of stock

2

PIN, SPRING

91609-60040-00

1
Out of stock

3

BEARING, STRG LOWER

(856-23875-00-00)

1
Out of stock

4

BEARING, STEERING

(856-23812-00-00)

1
Out of stock

5

ROD, TIE

(856-23831-00-00)

1
Out of stock

6

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

7

NUT (821-23834-00)

90170-12054-00

1
Out of stock

8

JOINT, UNIVERSAL 1

(821-23841-90-00)

1
Out of stock

9

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

10

NUT, CASTLE

90171-10002-00

1
Out of stock

11

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

12

ROD, STEERING RELAY

(856-23821-00-00)

1
Out of stock

13

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

14

NUT (821-23834-00)

90170-12054-00

1
Out of stock

15

JOINT, UNIVERSAL 1

(821-23841-90-00)

1
Out of stock

16

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

17

COLUMN, SKI 1

(857-23853-00-00)

1
Out of stock

18

SPACER

(90560-25047-00)

1
Out of stock

19

ARM, OUTSIDE 1

(856-23851-00-00)

1
Out of stock

20

ARM, OUTSIDE 2

(856-23852-00-00)

1
Out of stock

21

NUT, DRILLED

(95306-12100-00)

1
Out of stock

22

TOOL

UNA-VAILA-BL-EI

1
Out of stock

23

BOLT (682)

97095-06040-00

—

$2.36

In stock

24

WASHER, LOCK

(90215-06038-00)

1
Out of stock

25

WASHER, LOCK 2

(856-23895-00-00)

1
Out of stock

26

NUT, NYLON

95707-06300-00

—

$3.20

In stock
