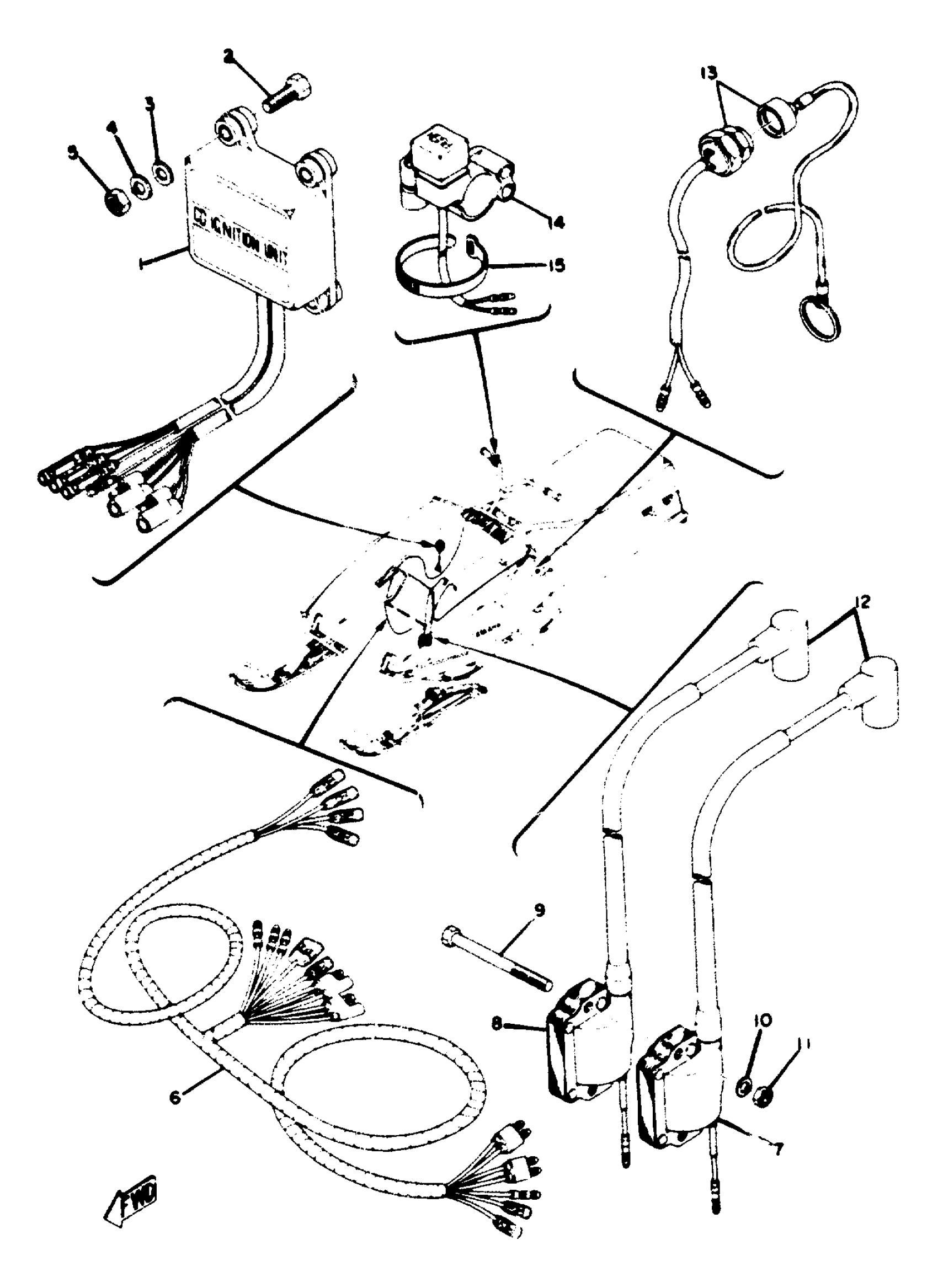

Yamaha SR643B 1973 ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

(857-85540-10-00)

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$2.78

3

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

4

WASHER, SPRING

92995-06100-00

$2.95

5

NUT, HEXAGON

95380-06600-00

$4.11

6

WIRE HARNESS ASSEMBLY

(857-82590-20-00)

Unavailable

7

IGNITION COIL ASSEMBLY

(878-82310-30-00)

Unavailable

8

IGNITION COIL ASSEMBLY

(857-82320-30-00)

Unavailable

9

BOLT, HEXAGON

(97306-06070-00)

Unavailable

10

WASHER, SPRING

92907-06100-00

$0.98

11

NUT(6TA)

95317-06600-00

$2.52

12

PLUG CAP ASSY

663-82370-01-00

$14.99

13

STOP SWITCH ASSEMBLY

856-82550-01-00

Unavailable

14

SWITCH, HANDLE 1

(820-83976-00-00)

Unavailable

15

UNAVAILABLE IN PRICE BOOK

168-83963-00-00

Unavailable
