1990 Yamaha SRV (SR540P) Track Suspension 2 Diagram

← All diagrams

Find the part on the Track Suspension 2 diagram for your 1990 Yamaha SRV (SR540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

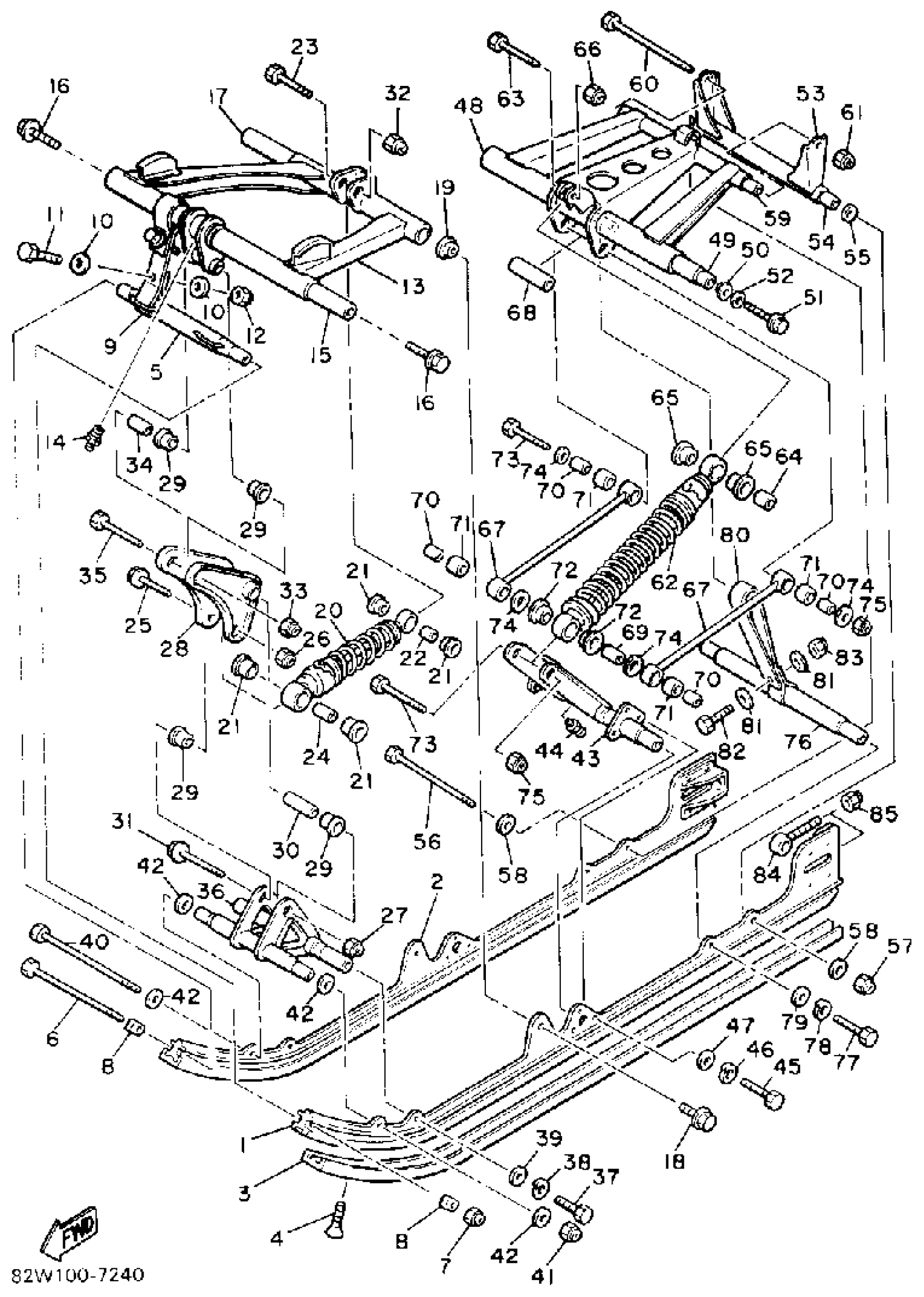

1990 Yamaha SRV (SR540P) Track Suspension 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SLIDING 2

88R-W4741-00-00

1
Out of stock

2

FRAME SLIDING 2

88R-W4741-00-00

1
Out of stock

3

RUNNER,SLIDING 1

8R9-47421-00-XX

1
Out of stock

4

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

5

BRACKET 1

8U7-47415-00-00

1
Out of stock

6

BOLT,HEXAGON

97027-08255-00

1
Out of stock

7

NUT, NYLON

95717-08300-00

1

$2.57

In stock

8

WASHER

8U7-47359-00-00

1
Out of stock

9

STOPPER 1

8U7-47495-00-00

1
Out of stock

10

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

11

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

12

NUT, NYLON

95707-06300-00

1

$3.20

In stock

13

ARM, PIVOT 1

8U7-47331-00-00

1
Out of stock

14

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

15

SHAFT 1

885-47465-03-00

1
Out of stock

16

BOLT (8V0)

90109-10771-00

—

$5.00

In stock

17

SHAFT 3

82M-47485-02-00

1
Out of stock

18

BOLT, FLANGE

95817-10030-00

—

$6.17

In stock

19

COLLAR (8U7)

90387-105G6-00

—

$6.48

In stock

20

SHOCK ABSORBER 2

8V9-47481-00-00

1
Out of stock

21

COLLAR (8U7)

90387-123G4-00

—

$3.55

In stock

22

COLLAR

90387-08775-00

1
Out of stock

23

. BOLT

90101-08557-00

1
Out of stock

24

COLLAR

90387-08478-00

1
Out of stock

25

BOLT, WITH WASHER

90119-08015-00

1

$2.48

In stock

26

NUT, NYLON

95717-08300-00

1

$2.57

In stock

27

NUT, U

95617-08100-00

—

$6.78

In stock

28

BRACKET 6

8U7-47464-00-00

1
Out of stock

29

COLLAR

90387-123G5-00

1
Out of stock

30

COLLAR

90387-08478-00

1
Out of stock

31

BOLT, WITH WASHER

90119-08015-00

1

$2.48

In stock

32

NUT, NYLON

95717-08300-00

1

$2.57

In stock

33

NUT, U

95617-08100-00

—

$6.78

In stock

34

COLLAR

90387-084G0-00

1
Out of stock

35

BOLT, HEXAGON

97027-08100-00

—

$4.55

In stock

36

BRACKET 4

8U7-47418-00-00

1
Out of stock

37

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

38

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

39

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

40

BOLT,HEXAGON

97027-08255-00

1
Out of stock

41

NUT, NYLON

95717-08300-00

1

$2.57

In stock

42

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

43

BRACKET 2

8AX-47416-01-00

1
Out of stock

44

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

45

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

46

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

47

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

48

ARM, PIVOT 2 (8U7-47332-00-00)

99999-02178-00

1
Out of stock

49

SHAFT 2

8U7-47475-01-00

1
Out of stock

50

COLLAR

8Y0-47319-00-00

1
Out of stock

51

BOLT (8V0)

90109-10771-00

—

$5.00

In stock

52

WASHER, PLATE (2H7)

90201-10669-00

—

$6.26

In stock

53

BRACKET 3

8U7-47417-00-00

1
Out of stock

54

COLLAR

90387-08632-00

1
Out of stock

55

WASHER (1T1)

90201-08649-00

—
Out of stock

56

BOLT,HEXAGON

97027-08255-00

1
Out of stock

57

NUT, NYLON

95717-08300-00

1

$2.57

In stock

58

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

59

COLLAR (8U7)

90387-083G6-00

—

$9.75

In stock

60

BOLT (83L)

97027-08220-00

1
Out of stock

61

NUT, NYLON

95717-08300-00

1

$2.57

In stock

62

SHOCK ABSORBER

8Y0-47480-00-00

1
Out of stock

63

BOLT

90101-10561-00

1
Out of stock

64

COLLAR (8U7)

90387-105G5-00

—

$7.35

In stock

65

COLLAR (8U7)

90387-145G7-00

—

$9.65

In stock

66

NUT, NYLON

95707-10300-00

—

$6.68

In stock

67

ROD, RELAY

8U7-47494-02-00

—
Out of stock

68

COLLAR

90387-103G9-00

1
Out of stock

69

COLLAR

90387-104G1-00

1
Out of stock

70

COLLAR(87A)

90387-100X3-00

—

$3.49

In stock

71

COLLAR (8U7)

90387-143G7-00

—

$9.10

In stock

72

COLLAR (8U7)

90387-144G2-00

—

$8.77

In stock

73

BOLT

90101-10560-00

1
Out of stock

74

WASHER, PLATE (17K)

90201-106F2-00

—

$7.66

In stock

75

NUT, NYLON

95707-10300-00

—

$6.68

In stock

76

SHAFT 4

8V0-47486-00-00

1
Out of stock

77

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

78

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

79

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

80

STOPPER 2

8U7-47496-00-00

1
Out of stock

81

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

82

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

83

NUT, NYLON

95707-06300-00

1

$3.20

In stock

84

COLLAR 3

8K2-47479-01-00

—

$25.69

In stock

85

NUT, NYLON

95707-10300-00

—

$6.68

In stock
