1990 Yamaha SRV (SR540P) Track Suspension 1 Diagram

← All diagrams

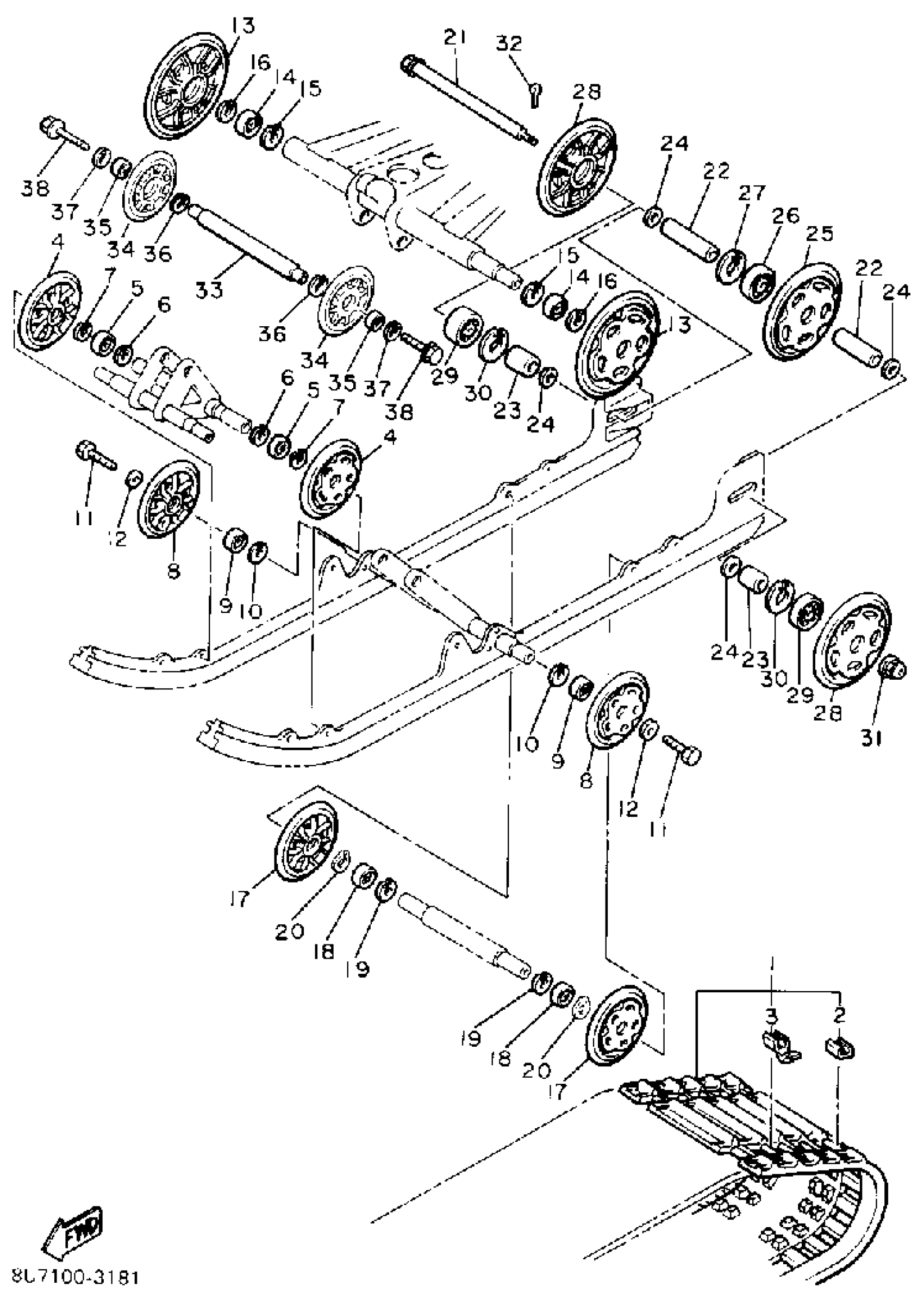

Find the part on the Track Suspension 1 diagram for your 1990 Yamaha SRV (SR540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha SRV (SR540P) Track Suspension 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

87F-47110-01-00

1
Out of stock

2

PLATE, REINFORCEMENT

89A-47113-00-00

1

$4.17

In stock

3

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

4

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

5

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

6

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

7

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

8

SUSPENSION WHEEL COMP.

87U-47320-00-00

1
Out of stock

9

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

10

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

11

BOLT (8K2)

90109-08559-00

1

$6.92

In stock

12

WASHER (8G1)

90201-08681-00

1

$6.22

In stock

13

SUSPENSION WHEEL COMP.

8U7-47320-00-00

—

$45.03

In stock

14

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

15

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

16

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

17

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

18

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

19

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

20

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

21

REAR AXLE COMP.

8L8-47520-02-00

—

$83.57

In stock

22

COLLAR

90387-202H9-00

1
Out of stock

23

COLLAR

90387-20022-00

—

$21.23

In stock

24

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

25

GUIDE WHEEL COMP.

8K2-47530-00-00

—

$117.57

In stock

26

—

$33.86

In stock

27

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

28

GUIDE WHEEL COMP.

8M6-47530-00-00

1
Out of stock

29

—

$33.86

In stock

30

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

31

NUT, SELF-LOCKING (8BF)

95607-14200-00

—
Out of stock

32

PIN, COTTER

91490-30030-00

—

$7.15

In stock

33

IDLER

8L1-47461-00-00

1
Out of stock

34

SUSPENSION WHEEL COMP.

8H8-47320-00-00

—

$53.83

In stock

35

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

36

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

37

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

38

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock
