1990 Yamaha SRV (SR540P) Brake Diagram

← All diagrams

Find the part on the Brake diagram for your 1990 Yamaha SRV (SR540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

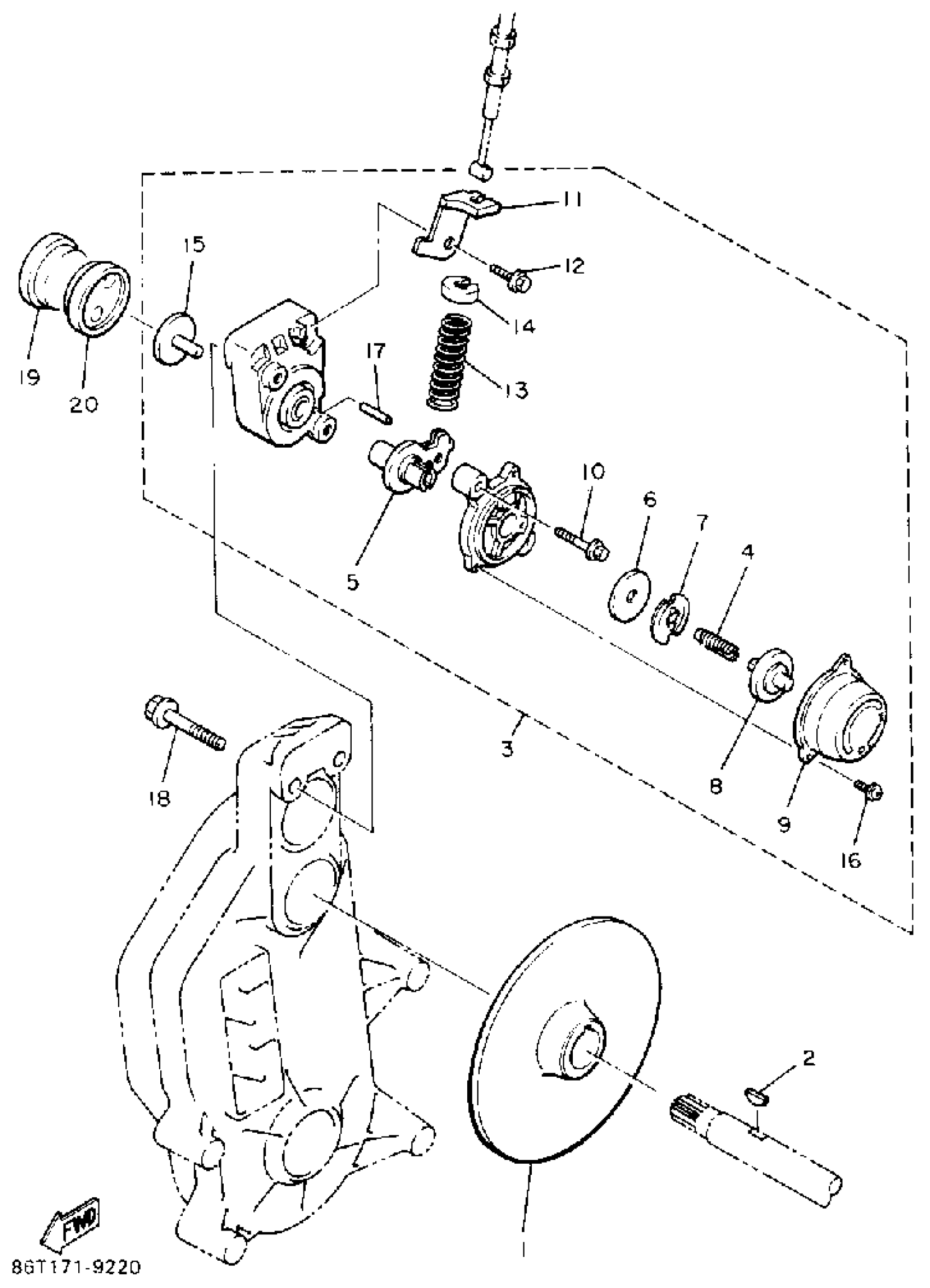

1990 Yamaha SRV (SR540P) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC,BRAKE

8L8-25831-01-00

1
Out of stock

2

KEY

8J7-25848-00-00

1

$4.77

In stock

3

CALIPER BODY COMP.1

86M-25730-01-00

1
Out of stock

4

SCREW, ADJUSTING 1

86M-25738-00-00

1

$8.91

In stock

5

. LEVER, BRAKE

86M-25726-00-00

1
Out of stock

6

SHIM, CALIPER

86M-25827-00-00

—

$2.37

In stock

7

LOCK, ONE WAY 2

86M-25773-00-00

—

$8.91

In stock

8

RATCHET, ADJUSTING

86M-25771-00-00

1

$6.58

In stock

9

COVER

86M-25772-00-00

—

$35.52

In stock

10

BOLT, CALIPER

86M-25818-00-00

—

$4.29

In stock

11

. BRACKET, CALIPER

86M-25721-00-00

1
Out of stock

12

BOLT 3

86M-25826-00-00

1

$1.95

In stock

13

. SPRING, COMPRESSION

86M-25743-00-00

1
Out of stock

14

. SPRING, STOPPER

86M-25714-00-00

1
Out of stock

15

PLATE, BACK UP

86M-25733-00-00

—

$12.78

In stock

16

BOLT, FITTING

86M-25833-00-00

—

$0.28

In stock

17

PIN 2

86M-25744-00-00

—

$1.27

In stock

18

BOLT, FLANGE(8AB)

95817-10050-00

—

$5.03

In stock

19

PAD, CALIPER 2

89J-25811-00-00

—

$23.38

In stock

20

PAD, CALIPER 2

89J-25911-00-00

—

$50.02

In stock
