1990 Yamaha SRV (SR540P) Instrument Panel Diagram

← All diagrams

Find the part on the Instrument Panel diagram for your 1990 Yamaha SRV (SR540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

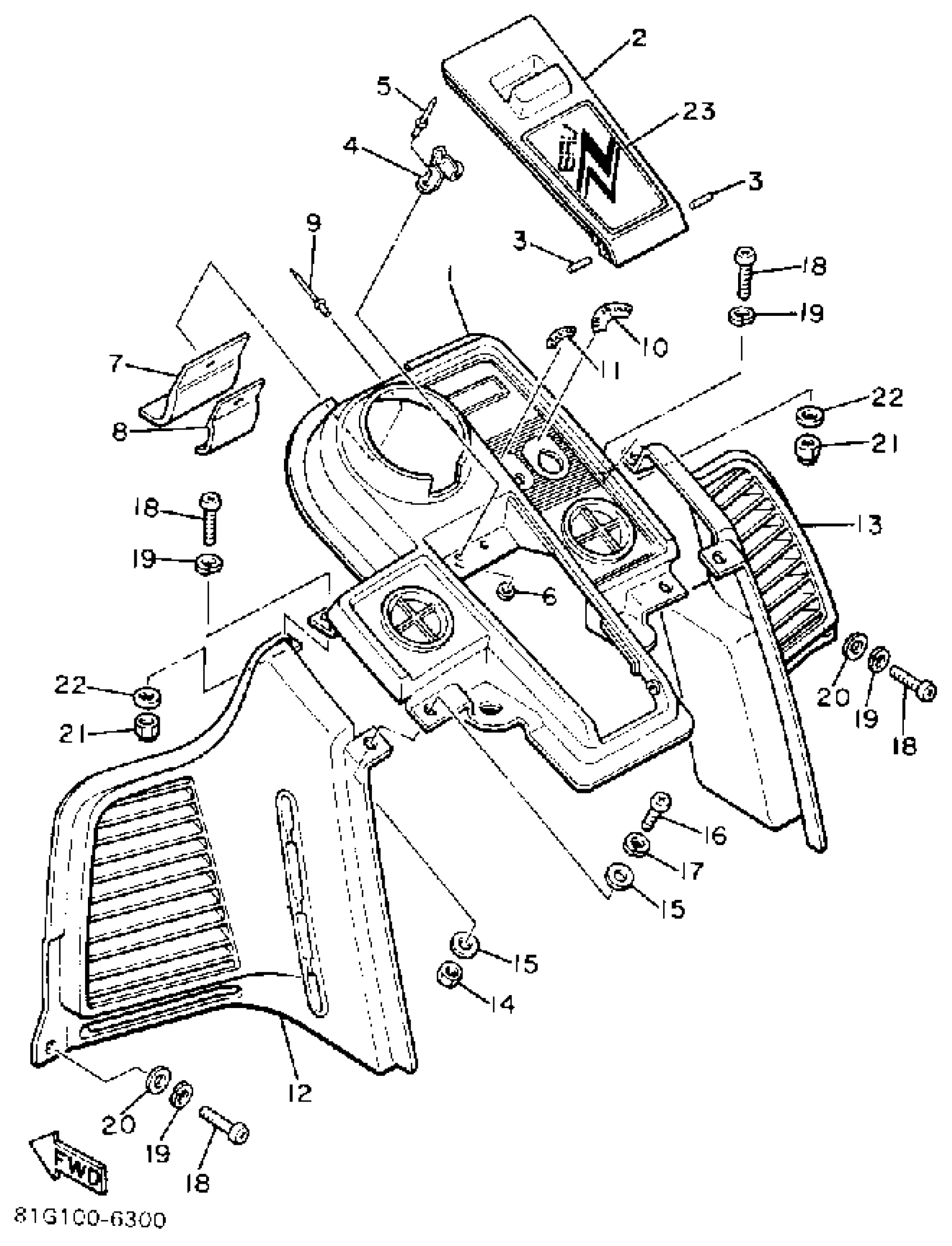

1990 Yamaha SRV (SR540P) Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL,INSTRUMENT

8Y0-77711-00-00

1
Out of stock

2

PANEL, INSTRUMENT

8K4-77712-00-00

1
Out of stock

3

PIN, HINGE

8K4-77477-00-00

1
Out of stock

4

SPRING, SEAT BACK

821-24794-01-00

1
Out of stock

5

RIVET, BLIND (2YK)

90267-32146-00

1

$5.62

In stock

6

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

7

STRIP, WEATHER 1

8K4-77161-00-00

1
Out of stock

8

PLATE 1

8K4-77185-00-00

1
Out of stock

9

RIVET (856)

90267-48014-00

1
Out of stock

10

INDICATOR 1

8K2-77741-01-00

1
Out of stock

11

INDICATOR 2

8K4-77742-00-00

1
Out of stock

12

LOUVER 1

8K4-77131-00-00

1
Out of stock

13

LOUVER 2

8K4-77132-00-00

1
Out of stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

16

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

17

WASHER, SPRING

92907-06100-00

—
Out of stock

18

SCREW, PAN

98517-06020-00

—
Out of stock

19

WASHER, SPRING

92907-06100-00

—
Out of stock

20

WASHER, PLATE

90201-06086-00

—
Out of stock

21

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

22

WASHER, PLATE

90201-06045-00

—

$6.18

In stock

23

ORMNT, INSTR PNL 1INSTRUMENT PANEL 1

86U-77715-00-00

1
Out of stock
