1985 Yamaha SRV (SR540J) Meter Diagram

← All diagrams

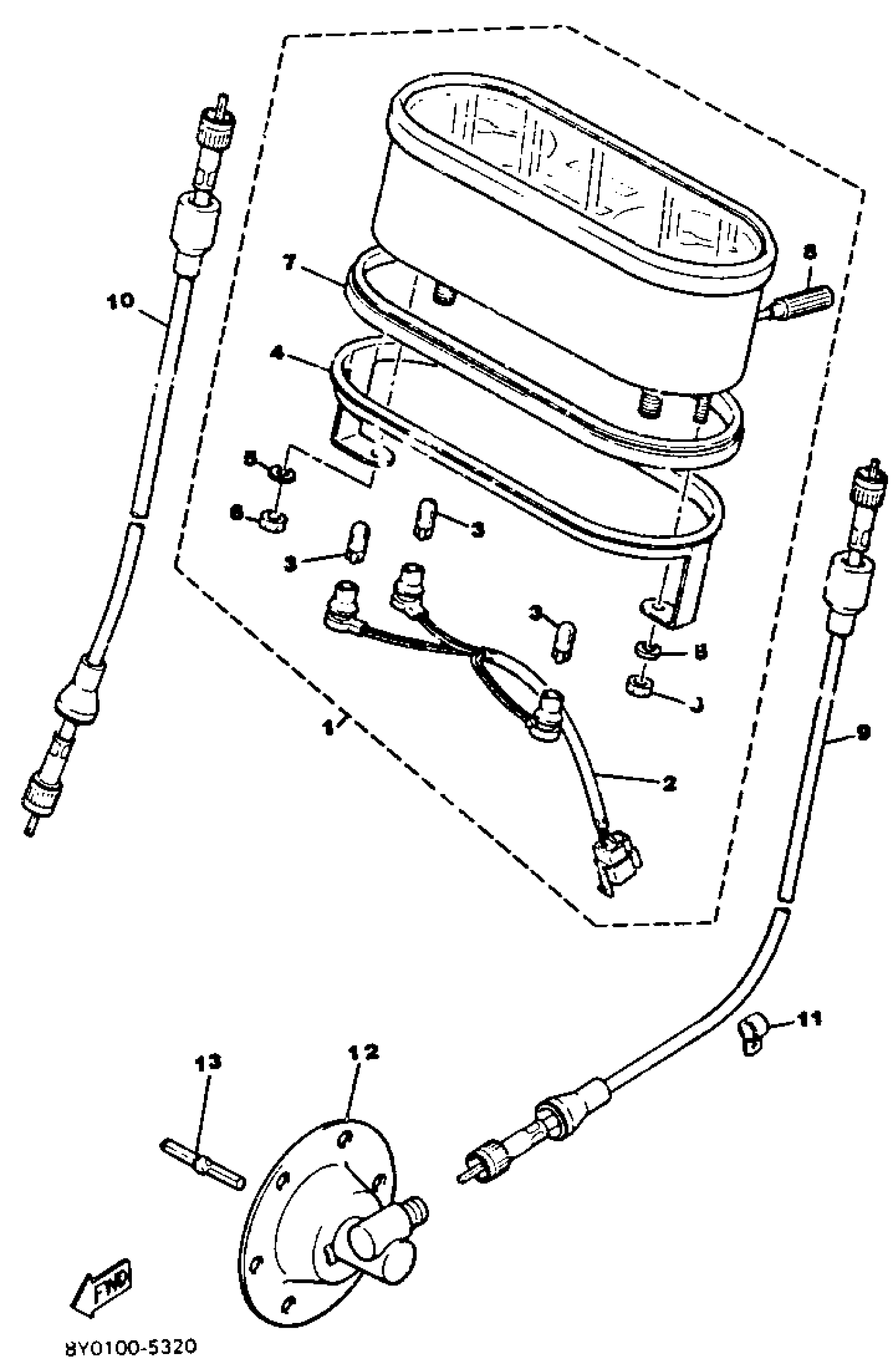

Find the part on the Meter diagram for your 1985 Yamaha SRV (SR540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha SRV (SR540J) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

81R-83500-40-00

1
Out of stock

1

SPEEDOMETER ASY

81R-83500-40-00

1
Out of stock

2

. SOCKET, METER

8U9-83536-00-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

. BRACKET, METER

8K4-83519-01-00

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

. DAMPER

8K4-83513-00-00

1
Out of stock

8

. KNOB, TRIP METER

8L8-83578-00-00

1
Out of stock

9

SPEEDOMETER CABLE ASSEMBLY

8K4-83550-00-00

1
Out of stock

10

TACHOMETER CABLE ASSEMBLY

8A1-83550-02-00

1
Out of stock

11

CLAMP (6A4)

90461-06M01-00

—

$5.32

In stock

12

METER GEAR HOUSING COMP.

8L9-47700-00-00

—

$68.52

In stock

13

JOINT

8K4-47715-00-00

1

$4.60

In stock
