1984 Yamaha SRV (SR540H) Primary Sheave Diagram

← All diagrams

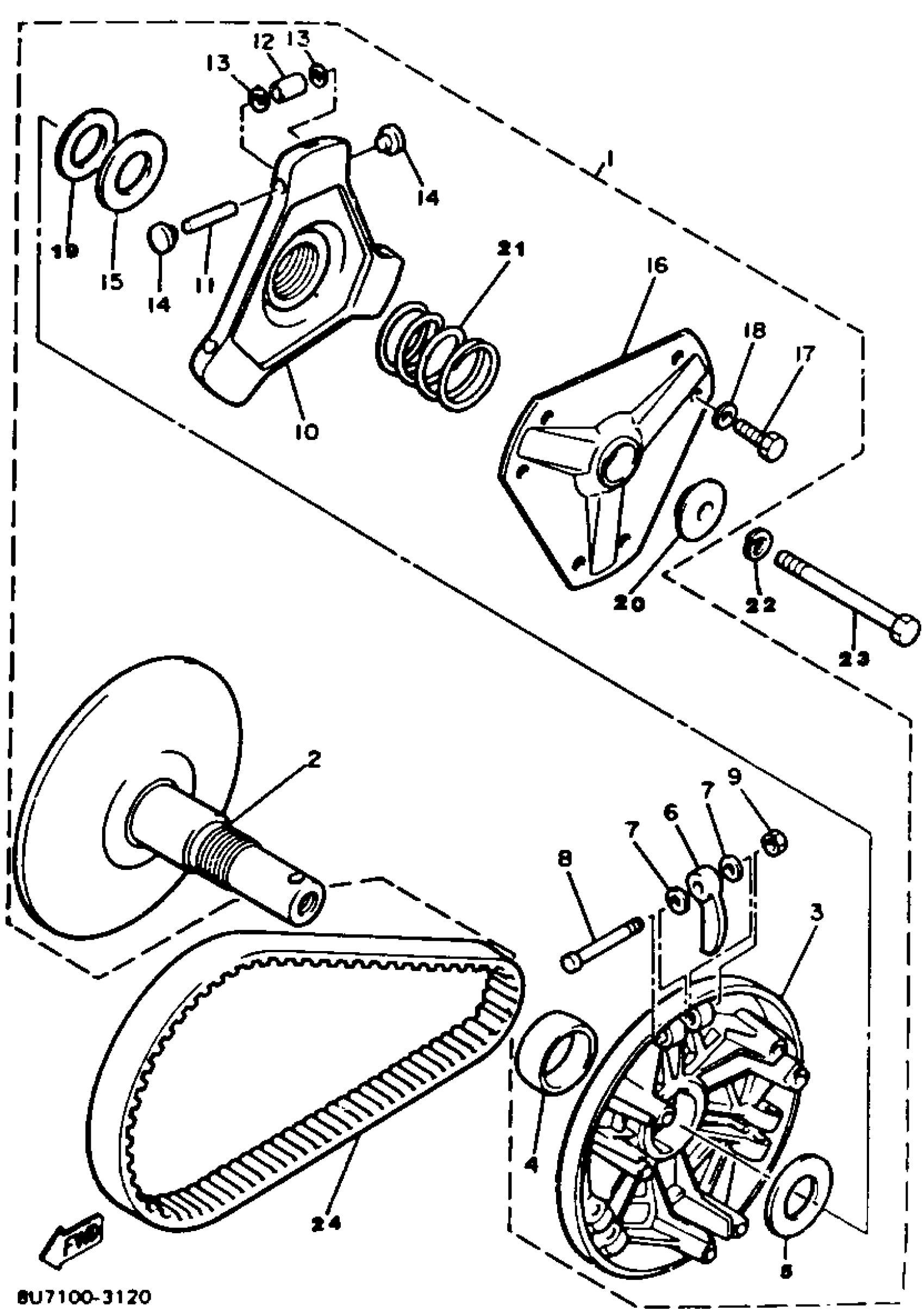

Find the part on the Primary Sheave diagram for your 1984 Yamaha SRV (SR540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha SRV (SR540H) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY SHEAVE ASS''Y

8U7-17601-00-00

1
Out of stock

2

. PRI FIXED SHEAVESHEAVE COMP

8U7-17610-00-00

1
Out of stock

3

. SHEAVE, PRI SLIDING

8U7-17621-00-00

1
Out of stock

4

. BUSH COMET

8U7-17625-00-00

1
Out of stock

5

STOPPER

(8U7-17639-00-00)

1
Out of stock

6

. WEIGHT (8U7-17633-11-00)

8U7-17633-10-00

1
Out of stock

6

. WEIGHT (8U7-17633-11-00)

8U7-17633-10-00

1
Out of stock

7

. SPACER

8U7-17649-00-00

1
Out of stock

8

. BOLT WEIGHT COMET

8U7-17616-00-00

1
Out of stock

9

. NUT

8U7-17668-00-00

1
Out of stock

10

. SPIDER

8U7-17627-00-00

1
Out of stock

11

. PIN

8U7-17636-00-00

1
Out of stock

12

. COLLAR

8U7-17645-00-00

1
Out of stock

13

. WASHER, BELLEVILLE

8U7-17658-00-00

1
Out of stock

14

. SLIDER

8U7-17653-00-00

1
Out of stock

15

. SPACER 1

8U7-17654-00-00

1
Out of stock

16

. PRI SHV CAPCAP COMP

8U7-17630-00-00

1
Out of stock

17

. BOLT CAP COMET

8U7-17617-00-00

1
Out of stock

18

. WASHER, LOCK

8U7-17646-00-00

1
Out of stock

19

. SHIM

8U9-17687-00-00

1
Out of stock

20

. WASHER

8U7-17648-00-00

1
Out of stock

21

. SPRING

8U7-17643-00-00

1
Out of stock

21

. SPRING

8U7-17643-00-00

1
Out of stock

22

WASHER, SPRING

90204-13010-00

1
Out of stock

23

BOLT

8U7-17647-01-00

1
Out of stock

24

V-BELT

89X-17641-01-00

1

$48.52

In stock
