1980 Yamaha SR540D Steering SR540E-F Diagram

← All diagrams

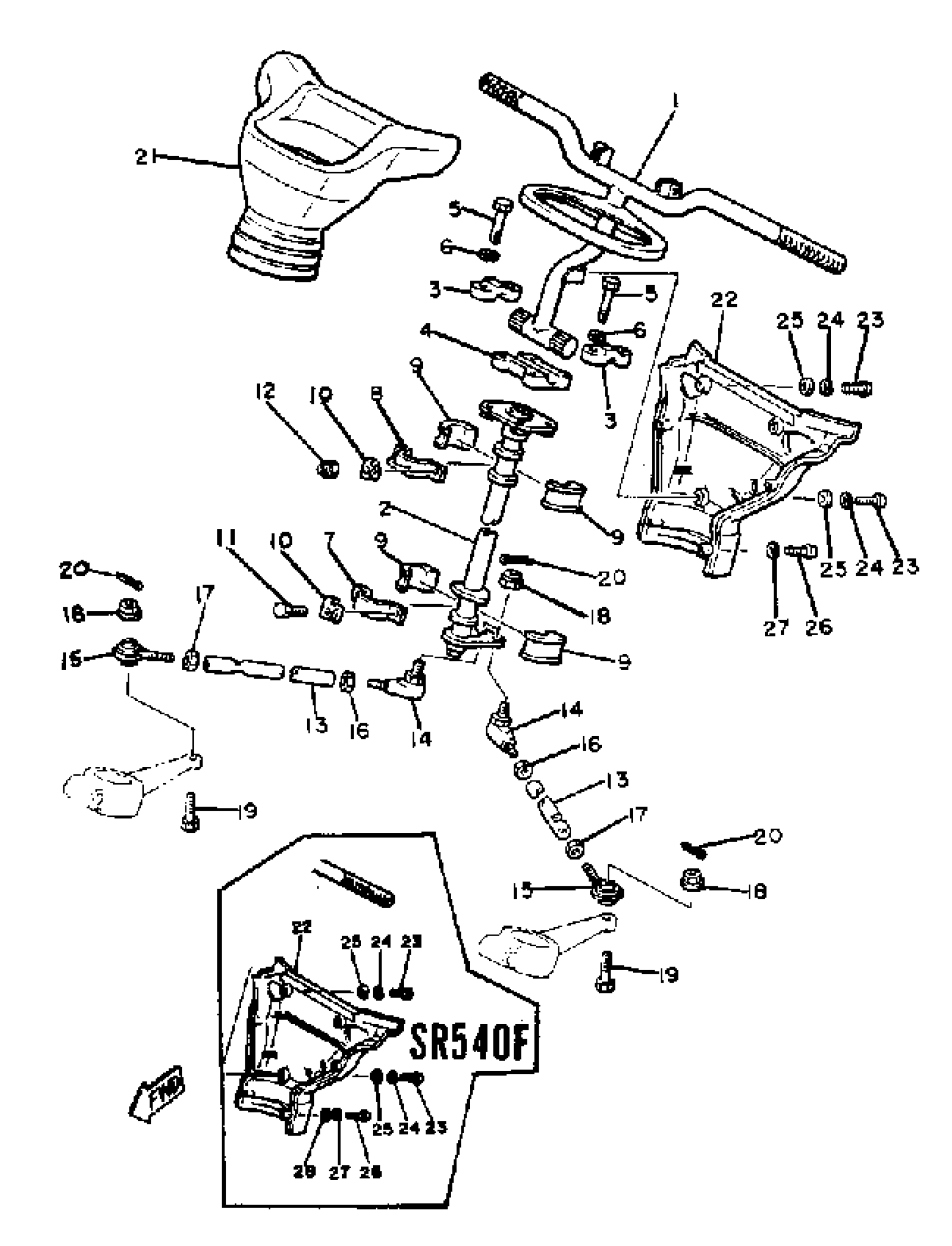

Find the part on the Steering SR540E-F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Steering SR540E-F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

81R-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8L8-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

4

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

5

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BRACKET, STEERING LOWER

84M-23868-00-00

—

$32.05

In stock

8

HOLDER, BEARING

84M-23872-00-00

—

$16.78

In stock

9

BEARING, STEERING

8F3-23812-00-00

1

$9.89

In stock

10

WASHER, LOCK 1

8AC-23894-01-00

1

$3.62

In stock

11

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

12

NUT, NYLON

95717-08300-00

1

$2.57

In stock

13

ROD,STEERING RELAY

85L-23821-00-00

1
Out of stock

14

JOINT, UNIVERSAL 1

86X-23841-00-00

1

$51.36

In stock

15

JOINT, UNIVERSAL 3

87S-23847-01-00

1

$44.71

In stock

16

NUT (682)

95380-10700-00

1

$5.78

In stock

17

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

18

NUT, NYLON

95707-10300-00

—

$6.68

In stock

19

BOLT, WITH HOLE

90102-10031-00

—

$15.65

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

PAD, STEERING

8L8-23815-01-00

1
Out of stock

22

PAD, STEERING

8L8-23817-00-00

1
Out of stock

22

PAD KIT (8L8-23817-01)

99999-01429-00

1
Out of stock

23

SCREW, PAN

98517-05012-00

—

$3.91

In stock

24

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

25

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

25

WASHER(1RW)

92907-05600-00

—
Out of stock

26

SCREW, PAN HEAD(6G8)

98507-04010-00

—

$3.26

In stock

27

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

28

WASHER(JF2)

92907-04600-00

—

$1.23

In stock
