SKI SR540D-E-F
1980 Yamaha SR540D SKI SR540D-E-F Diagram

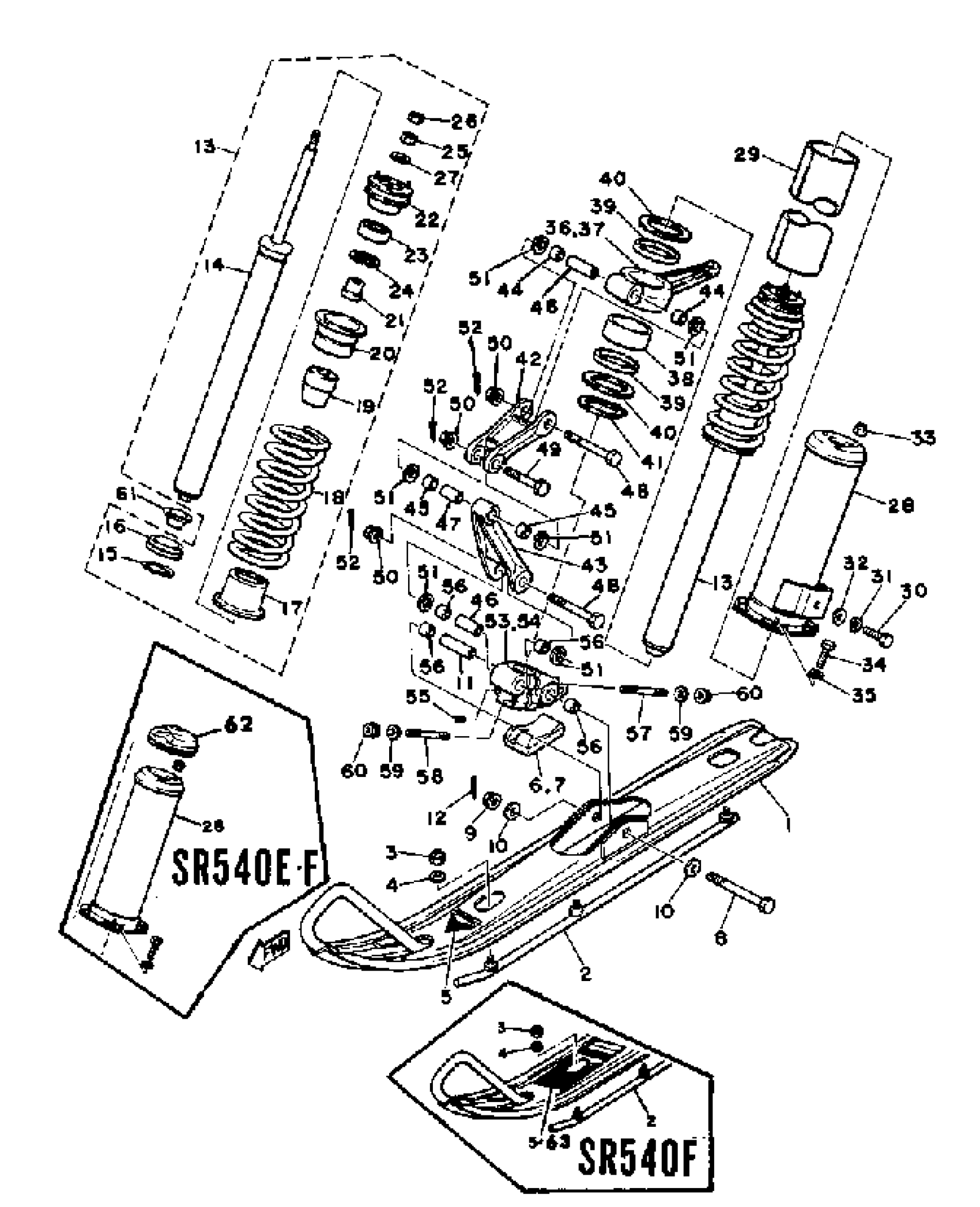

Find the part on the SKI SR540D-E-F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI 1
8L0-23710-00-00
2
SKI RUNNER, 1
888-23731-01-XX
5
EMBLEM 10
(8L0-77365-00-00)
5
EMBLEM 10
8R6-77365-00-00
6
STOPPER 1
8L0-23743-01-00
7
STOPPER 2
8L0-23744-01-00
8
BOLT, WITH HOLE
90102-10040-00
10
WASHER(6TA)
92907-10600-00
13
ABSORBER ASSEMBLY 1
(8L0-2376A-00-00)
13
ABSORBER ASSEMBLY 1
8L9-2376A-00-00
14
DAMPER SUB-ASSEMBLY.
(8L0-22401-00-00)
14
. DAMPER SUB-ASSEMBLY
8L9-22401-00-00
15
. CLIP
90468-15098-00
15
. CIRCLIP, OUTER
93440-36087-00
16
SEAT, SPRING 1
(8L0-23768-00-00)
16
SEAT, SPRING 1
(8L9-23768-00-00)
17
. SEAT, SPRING 2
8L0-23777-00-00
17
. SEAT, SPRING 2
8L9-23777-00-00
18
. SPRING, COMPRESSION
90501-70584-00
19
. BUMP, STOP
8L0-22493-00-00
20
PLATE, BACK UP
8AB-23788-00-00
21
. COLLAR
90387-100A5-00
22
. HOLDER, BEARING
8L0-2376H-00-00
25
. NUT
90170-08220-00
28
HOLDER, ABSORBER
8L0-2376J-00-00
28
HOLDER, ABSORBER
8L9-2376J-00-00
36
ARM, OUTSIDE 1
(8L0-23851-00-00)
36
ARM, OUTSIDE 1
8L9-23851-00-00
37
ARM, OUTSIDE 2
8L0-23852-00-00
37
ARM, OUTSIDE 2
8L9-23852-00-00
38
BUSH, BIMETAL FORM
(90384-50092-00)
39
O-RING (620)
93210-49046-00
39
O-RING (583 CYL. HEAD SIDE COV
93210-49296-00
40
WASHER, PLATE
90201-50798-00
41
. CIRCLIP, S-TYPE (S-35)
93410-35027-00
49
BOLT, WITH HOLE
90102-10038-00
51
WASHER PLATE 626441260000
90202-14037-00
53
BRACKET, 1 (L.H)
8L9-2376E-00-00
54
BRACKET 2 (R.H)
8L9-2377E-00-00
57
BOLT, STUD
90116-08323-00
61
CAP 1
8L0-23741-00-00
62
PROTECTOR 3
8M6-77553-00-00
63
EMBLEM 11
8R6-77366-00-00
More Suspension & Wheels diagrams
