1980 Yamaha SR540D Steering SR540D Diagram

← All diagrams

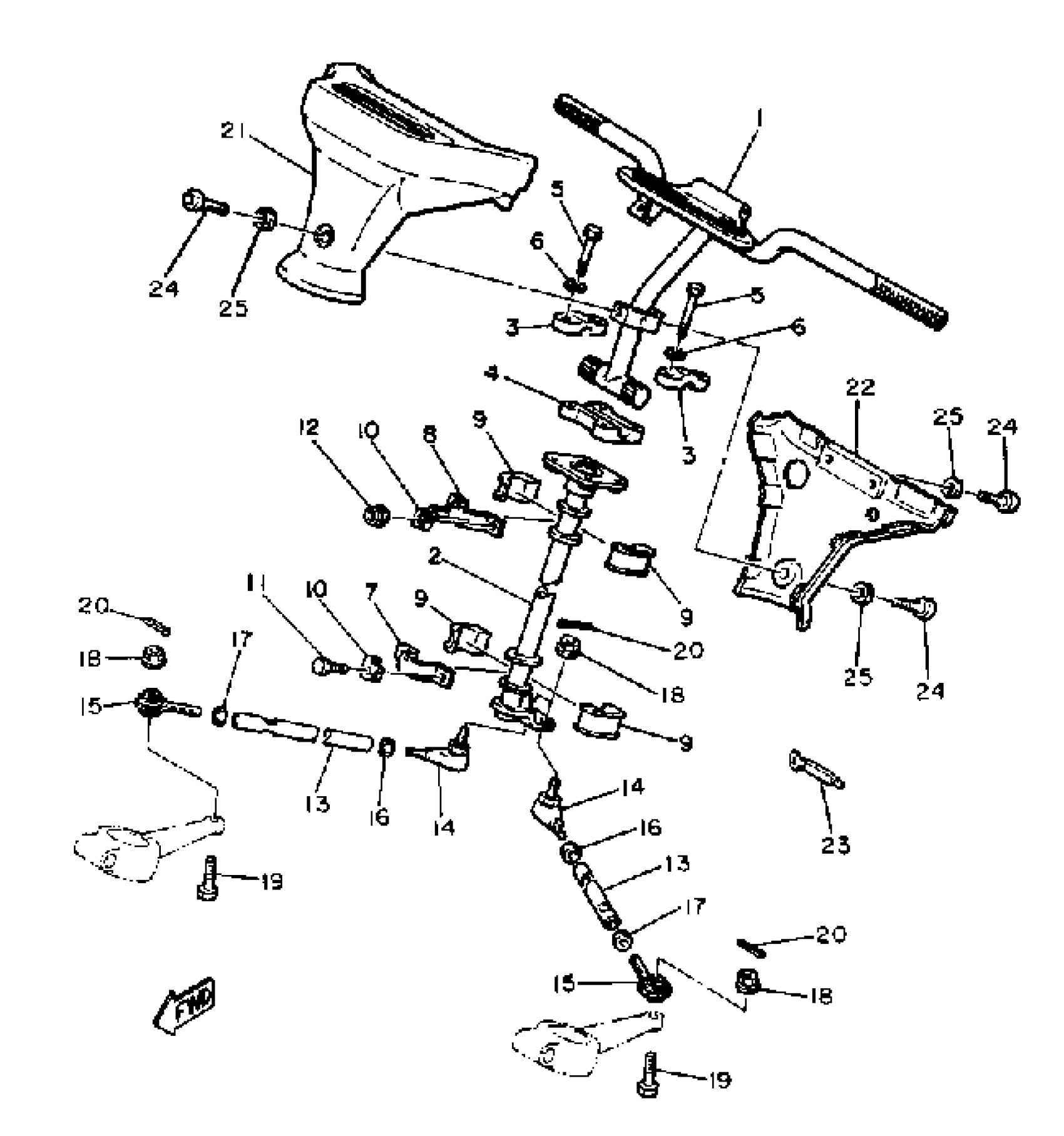

Find the part on the Steering SR540D diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Steering SR540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(8K4-23811-01-00)

1
Out of stock

2

COLUMN, steering 2 (8K4-23813-00)

8K4-23813-01-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

4

HOLDER HANDLE UPR

164-23441-01-38

1
Out of stock

5

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BRACKET, STEERING LOWER

84M-23868-00-00

—

$32.05

In stock

8

HOLDER, BEARING

84M-23872-00-00

—

$16.78

In stock

9

BEARING, STEERING

8F3-23812-00-00

1

$9.89

In stock

10

WASHER, LOCK

90215-08143-00

1
Out of stock

11

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

12

NUT, NYLON

95717-08300-00

1

$2.57

In stock

13

ROD,STEERING RELAY

85L-23821-00-00

1
Out of stock

14

JOINT, UNIVERSAL 1

86X-23841-00-00

1

$51.36

In stock

15

JOINT, UNIVERSAL 3

87S-23847-01-00

1

$44.71

In stock

16

NUT (682)

95380-10700-00

1

$5.78

In stock

17

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

18

NUT, NYLON

95707-10300-00

—

$6.68

In stock

19

BOLT, WITH HOLE

90102-10031-00

—

$15.65

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

PAD, STEERING

(8K4-23815-01-00)

1
Out of stock

22

PAD, STEERING

(8K4-23817-01-00)

1
Out of stock

23

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

24

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

25

COLLAR

90387-06794-00

1
Out of stock
