1980 Yamaha SR540D Instrument Panel SR540E-F Diagram

← All diagrams

Find the part on the Instrument Panel SR540E-F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

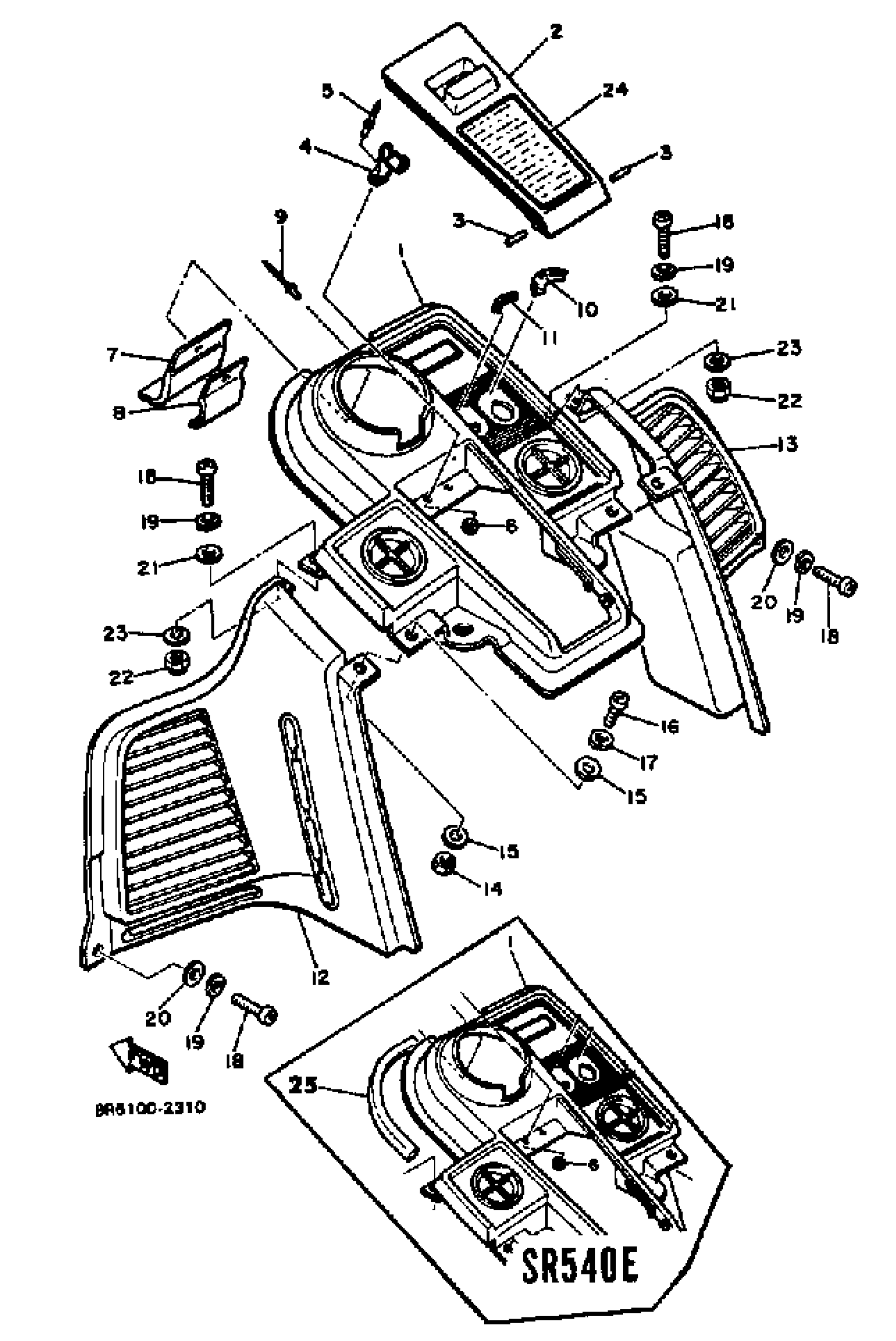

1980 Yamaha SR540D Instrument Panel SR540E-F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL,INSTRUMENT

8Y0-77711-00-00

1
Out of stock

2

PANEL, INSTRUMENT

8K4-77712-00-00

1
Out of stock

3

PIN, HINGE

8K4-77477-00-00

1
Out of stock

4

SPRING, SEAT BACK

821-24794-01-00

1
Out of stock

5

RIVET, BLIND (2YK)

90267-32146-00

1

$5.62

In stock

6

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

7

STRIP, WEATHER 1

8K4-77161-00-00

1
Out of stock

8

PLATE 1

8K4-77185-00-00

1
Out of stock

9

RIVET (856)

90267-48014-00

1
Out of stock

10

INDICATOR 1

8K2-77741-01-00

1
Out of stock

11

INDICATOR 2

8K4-77742-00-00

1
Out of stock

12

LOUVER 1

8K4-77131-00-00

1
Out of stock

13

LOUVER 2

8K4-77132-00-00

1
Out of stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

16

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

17

WASHER, SPRING

92907-06100-00

—
Out of stock

18

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

18

SCREW, PAN

98517-06020-00

—
Out of stock

19

WASHER, SPRING

92907-06100-00

—
Out of stock

20

WASHER, PLATE

90201-06086-00

—
Out of stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

23

WASHER, PLATE

90201-06045-00

—

$6.18

In stock

24

LABEL, WARNING 1

8K4-77761-00-00

1
Out of stock

24

LABEL, WARNING 1

8N8-77761-00-00

1
Out of stock

25

STRIP, WEATHER 2

8K4-77162-00-00

1
Out of stock
← Instrument Panel SR540D Meter SR540D-E-F →
