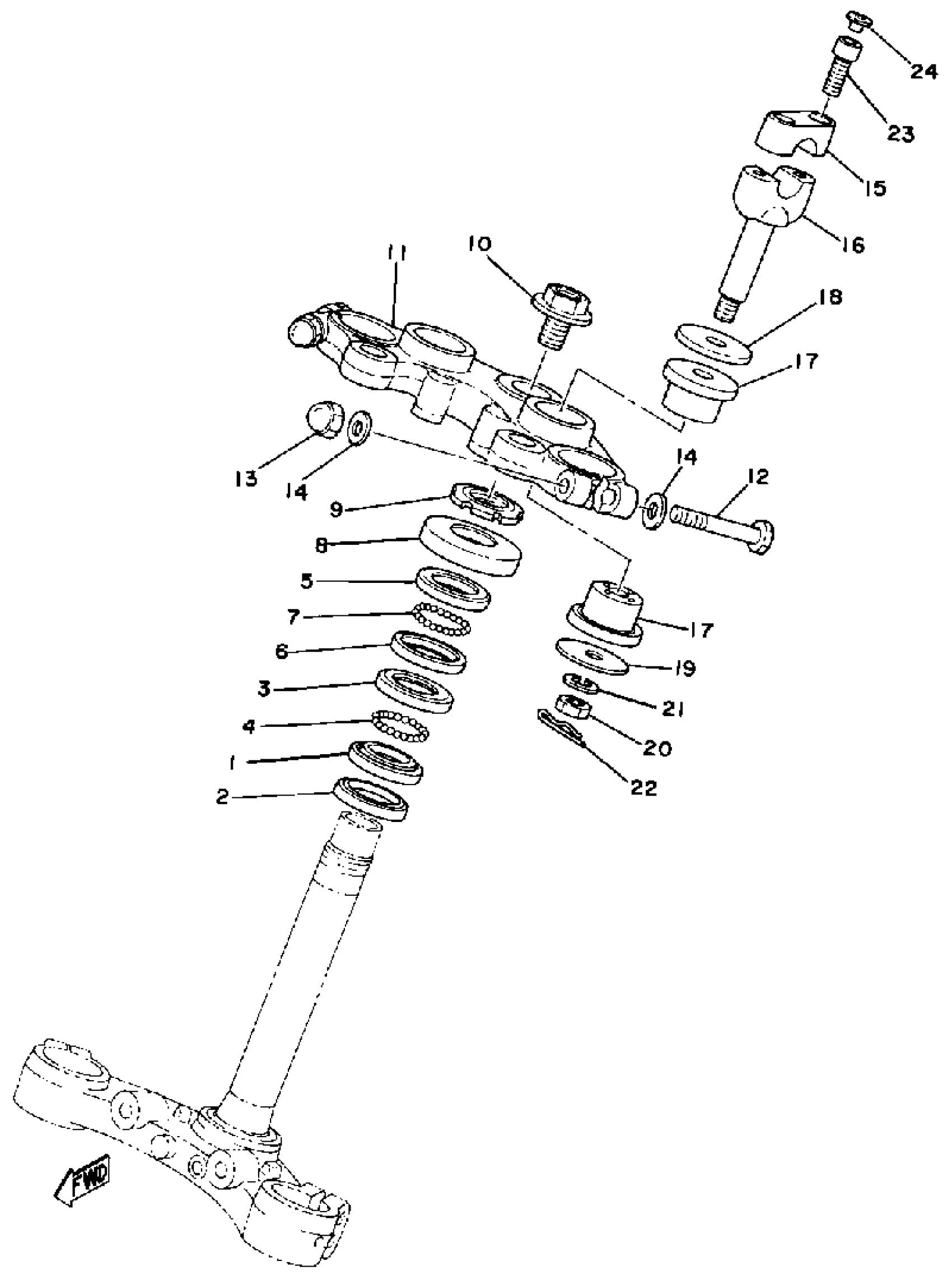

Yamaha SR500H (SR500H) 1981 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$6.54

2

SEAL, DUST

164-23462-00-00

$5.98

3

RACE, BALL 2

B6E-23412-00-00

$9.05

4

BALL

93501-04011-00

$5.84

5

RACE, BALL 1

BP2-23411-00-00

$7.83

6

RACE, BALL 2

BP2-23412-00-00

$5.33

7

BALL

93503-16003-00

$1.96

8

COVER BALL RACE

10V-23416-01-00

Unavailable

9

NUT

90179-25004-00

$19.41

10

BOLT (2A2)

90105-14102-00

$4.81

11

CROWN, HANDLE

(2J2-23435-00-98)

Unavailable

12

BOLT, HEXAGON

97013-08055-00

$3.02

13

NUT, CROWN

95303-08800-00

$7.01

14

.. WASHER, PLATE

92990-08600-00

$2.17

15

HOLDER, HANDLE UPR

360-23441-01-98

Unavailable

16

HOLDER, HANDLE LOWER

4AA-23442-01-98

Unavailable

17

BUSHING, RUBBER

1T4-23434-00-00

Unavailable

18

WASHER (1J7)

90209-12151-00

Unavailable

19

WASHER PLATE 256234440000

90201-10149-00

Unavailable

20

NUT (682)

95380-10700-00

$5.27

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

CLIP 136253750000

90468-12006-00

Unavailable

23

BOLT, SOCKET

91317-08025-00

Unavailable

24

CAP, BOLT (371,447)

341-23469-00-00

Unavailable
