1981 Yamaha SR500H (SR500H) Rear Wheel Diagram

← All diagrams

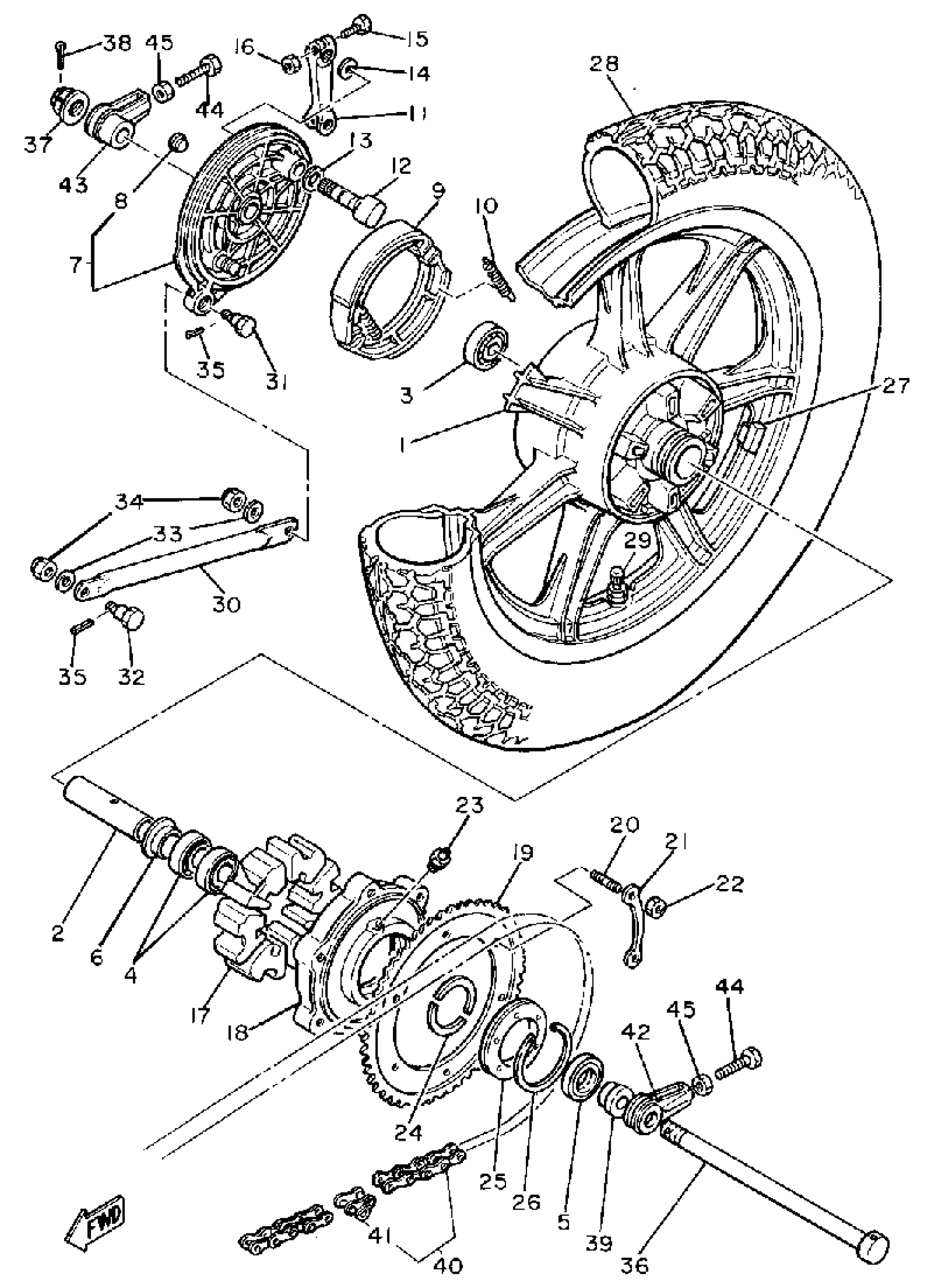

Find the part on the Rear Wheel diagram for your 1981 Yamaha SR500H (SR500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR500H (SR500H) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST REAR

(3H1-25338-00-98)

1
Out of stock

2

SPACER

90560-17311-00

—
Out of stock

3

BEARING

93306-20320-00

1
Out of stock

3

BEARING

93306-20320-00

1
Out of stock

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

1
Out of stock

5

OIL SEAL (25X40X8-248)

93102-25061-00

1
Out of stock

6

FLANGE, SPACER

146-25315-00-00

1
Out of stock

7

BRAKE SHOE PLT ASSEMBLY

1E6-25321-12-98

1
Out of stock

8

GROMMET (397)

90480-10068-00

1
Out of stock

9

BRAKE SHOE KIT

3GW-W253A-00-00

1
Out of stock

10

SPRING, TENSION 2462533300

90507-20002-00

1
Out of stock

11

LEVER, CAMSHAFT

42X-25355-00-00

1
Out of stock

12

CAMSHAFT

4L0-25351-00-00

—
Out of stock

13

SHIM, CAM SHAFT

148-25353-00-00

1
Out of stock

14

SEAL, CAM SHAFT

148-25359-00-00

1
Out of stock

15

BOLT, HEXAGON (538)

90101-06278-00

—
Out of stock

16

NUT(650)

95380-06700-00

—
Out of stock

17

DAMPER, CLUTCH

2J2-25364-00-00

—
Out of stock

18

CLUTCH, HUB

1E6-25366-00-98

1
Out of stock

19

SPROCKET, DRIVN 44T

2J2-25444-10-00

1
Out of stock

20

BOLT, STUD (483)

90116-08218-00

—
Out of stock

21

WASHER

2XJ-25412-00-00

—
Out of stock

22

NUT (583)

90170-08193-00

—
Out of stock

23

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

24

STOPPER, HUB

1E6-25318-01-00

—
Out of stock

25

SEAL, HUB DUST

1E6-25319-01-00

—
Out of stock

26

CIRCLIP (1E6)

93450-78080-00

—
Out of stock

27

BALANCER, WHEEL

5MT-25398-00-00

—
Out of stock

27

BALANCER, WHEEL

5MT-25398-00-00

—
Out of stock

27

BALANCER, WHEEL

5MT-25398-00-00

—
Out of stock

28

400S18 G503TL

(94140-18411-00)

1
Out of stock

29

VALVE, RIM (31A)

93900-00031-00

—
Out of stock

30

BAR, TENSION

3H0-25371-00-00

—
Out of stock

31

BOLT (537 TENSION BAR)

90109-08406-00

—
Out of stock

32

BOLT (183-25378-00)

90109-08368-00

—
Out of stock

33

WASHER, PLAIN

92990-08200-00

1
Out of stock

34

NUT

90185-08055-00

—
Out of stock

35

PIN, COTTER

91490-20025-00

—
Out of stock

36

AXLE,WHEEL

150-25381-01-00

1
Out of stock

37

NUT, CASTLE (2H6)

90171-16024-00

—
Out of stock

38

PIN, COTTER

91490-30030-00

—
Out of stock

39

COLLAR (1E6)

90387-17530-00

—
Out of stock

40

CHAIN 50HDS-104L

94580-05104-00

1
Out of stock

41

. JOINT CHAIN

94680-20011-00

1
Out of stock

42

PULLER, CHAIN 1

48U-25388-00-00

—
Out of stock

43

PULLER, CHAIN 2

341-25389-00-00

1
Out of stock

44

BOLT

90101-08060-00

—
Out of stock

45

. NUT

95380-08700-00

1
Out of stock
