1981 Yamaha SR500H (SR500H) Side Cover Tool Diagram

← All diagrams

Find the part on the Side Cover Tool diagram for your 1981 Yamaha SR500H (SR500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

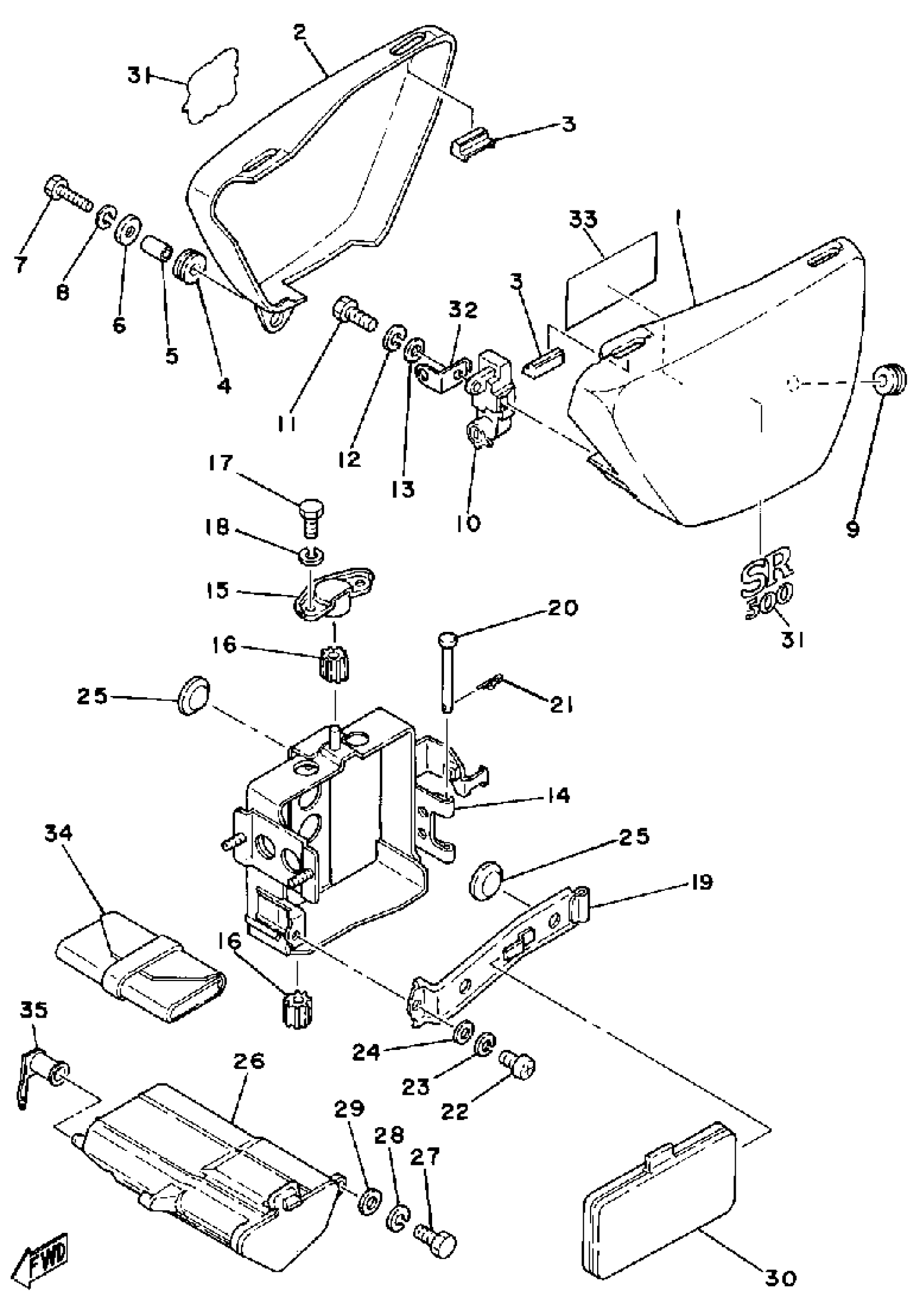

1981 Yamaha SR500H (SR500H) Side Cover Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

2J2-21711-01-6M

1
Out of stock

2

COVER, SIDE 2

2J2-21721-01-6M

1
Out of stock

3

DAMPER, SIDE COVER

466-21717-00-00

1
Out of stock

4

GROMMET 260845590000

90480-14105-00

1
Out of stock

5

COLLAR, LEVER 1

36Y-83913-01-00

1

$8.94

In stock

6

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

7

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

GROMMET (2J2)

90480-12236-00

1
Out of stock

10

SIDE COVER LOCK ASSY

4R8-21708-01-00

—
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

BOX, BATT.

2J2-21170-00-00

1
Out of stock

15

BRACKET, BATT BOX

2J2-21149-01-00

1
Out of stock

16

DAMPER, SIDE COVER

2J2-21729-00-00

—

$4.68

In stock

17

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

PLATE

(2J2-2176E-00-00)

1
Out of stock

20

PIN, CLEVIS

91701-05055-00

—
Out of stock

21

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

22

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

25

PAD, BATTERY

371-82121-00-00

—

$7.91

In stock

26

BOX, TOOL

2J2-21240-01-00

1
Out of stock

27

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

WASHER, PLATE

90201-06M08-00

1
Out of stock

30

BOX

(2J2-21245-00-00)

1
Out of stock

31

EMBLEM 1

4R8-21781-00-00

1
Out of stock

32

HOLDER, KNOB

(2J2-21794-00-00)

1
Out of stock

33

PLATE, SPEC

(4R9-21683-00-00)

1
Out of stock

34

TOOL KIT (1E6-28100-10)

1JN-W2810-00-00

1
Out of stock

35

STOPPER, BOX

(2J2-21172-00-00)

1
Out of stock
