1981 Yamaha SR500H (SR500H) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1981 Yamaha SR500H (SR500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

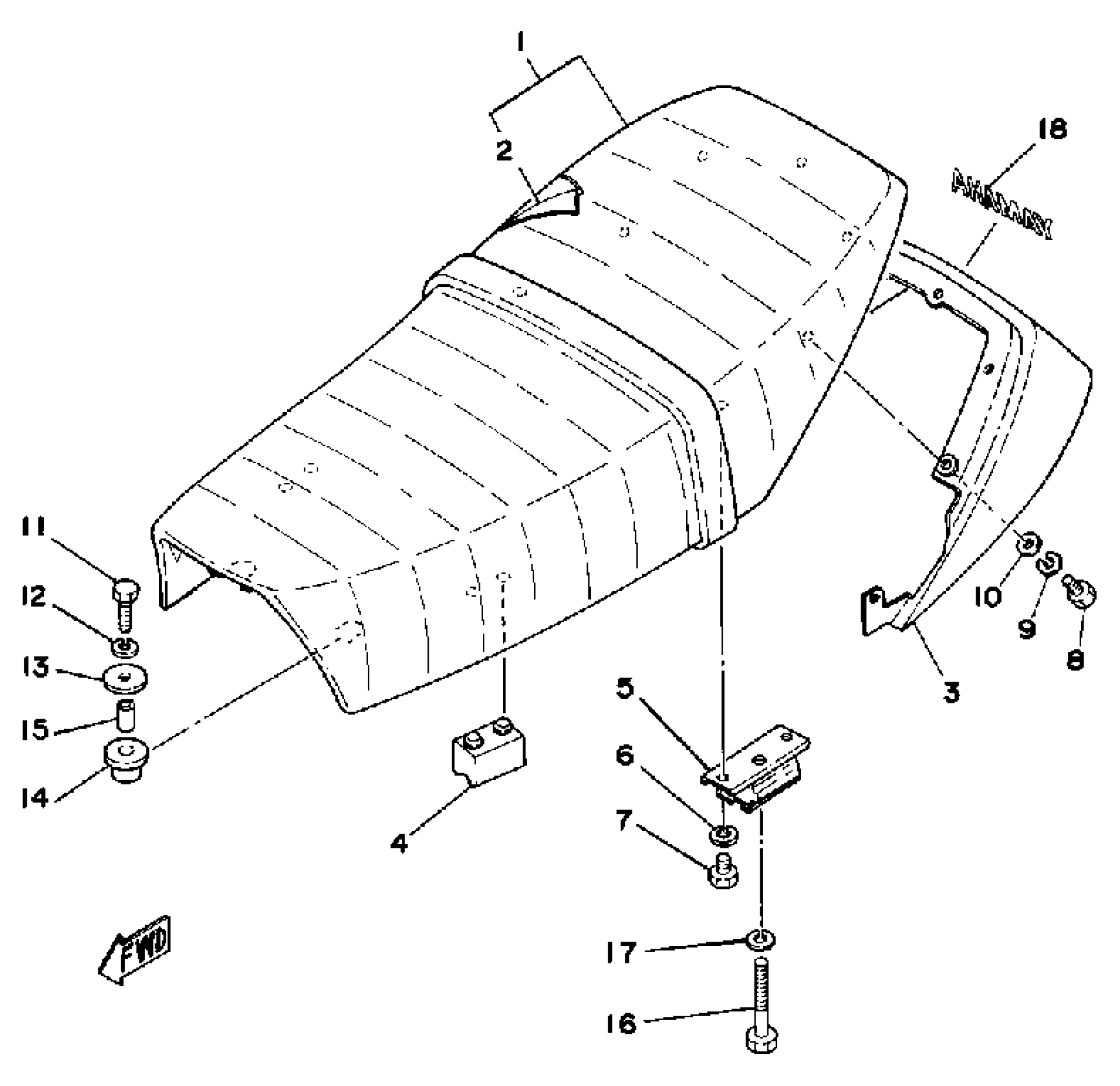

1981 Yamaha SR500H (SR500H) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY (2J2-24730-91)

2J2-W2472-01-00

1
Out of stock

2

. COVER, DOUBLE SEAT

2J2-24731-00-00

1
Out of stock

3

COVER, TAIL

2J2-24756-00-JX

1
Out of stock

4

DAMPER, SEAT 1

2J2-24723-00-00

—
Out of stock

5

DAMPER, SEAT 2

2J2-24724-01-00

—
Out of stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

8

BOLT, HEXAGON

97013-05012-00

1

$1.43

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

11

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER PLATE 248217570000

90201-06074-00

1

$6.29

In stock

14

DAMPER, SEAT

2J2-24737-00-00

1
Out of stock

15

COLLAR, LEVER 1

36Y-83913-01-00

1

$8.94

In stock

16

BOLT, HEXAGON

90101-08439-00

—
Out of stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

18

EMBLEM, YAMAHA

99245-00100-00

1
Out of stock
