1980 Yamaha SR500G (SR500G) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1980 Yamaha SR500G (SR500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

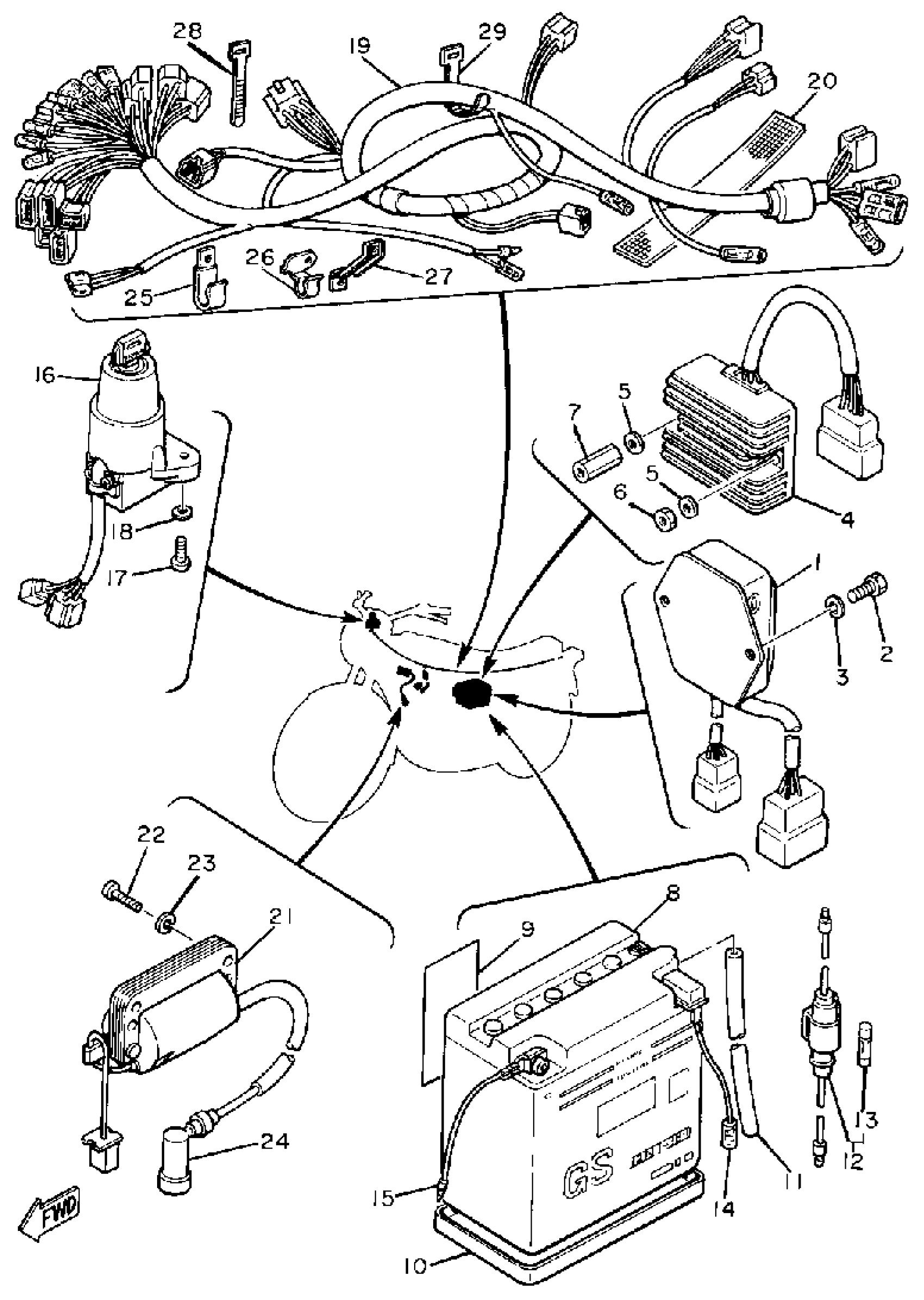

1980 Yamaha SR500G (SR500G) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSY

3H1-85540-51-00

1
Out of stock

2

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

RECTIFIER & REGULATOR ASSY

2J2-81960-A1-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

NUT

90170-06249-00

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

165-82110-90-00

1
Out of stock

9

LABEL, BATTERY

40A-82141-G0-00

1
Out of stock

10

SEAT, BATTERY

123-82122-00-00

1
Out of stock

11

HOSE

90445-08383-00

1
Out of stock

12

FUSE HOLDER ASSEMBLY

2J2-82150-10-00

1
Out of stock

13

FUSE

682-82151-02-00

1
Out of stock

14

WIRE, PLUS LEAD

1M1-82115-00-00

—
Out of stock

15

WIRE, MINUS LEAD

2J2-82116-00-00

1
Out of stock

16

MAIN SWITCH ASSEMBLYASSEMBLY

3GW-82501-00-00

1
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

18

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

19

WIRE HARNESS ASSEMBLY

2J2-82590-61-00

1
Out of stock

20

PROTC, WIRE HARNESS

(2J2-82589-01-00)

1
Out of stock

21

IGNITI0N C0IL ASSY

2J2-82310-51-00

—

$147.23

In stock

22

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

PLUG CAP ASSY

1J7-82370-00-00

—
Out of stock

24

PLUG CAP ASSY

1J7-82370-00-00

—
Out of stock

25

CLAMP

(90465-10018-00)

1
Out of stock

26

CLAMP

90465-10090-00

1
Out of stock

27

CLAMP

(90465-08144-00)

1
Out of stock

28

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

29

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
