1979 Yamaha SR500F (SR500F) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

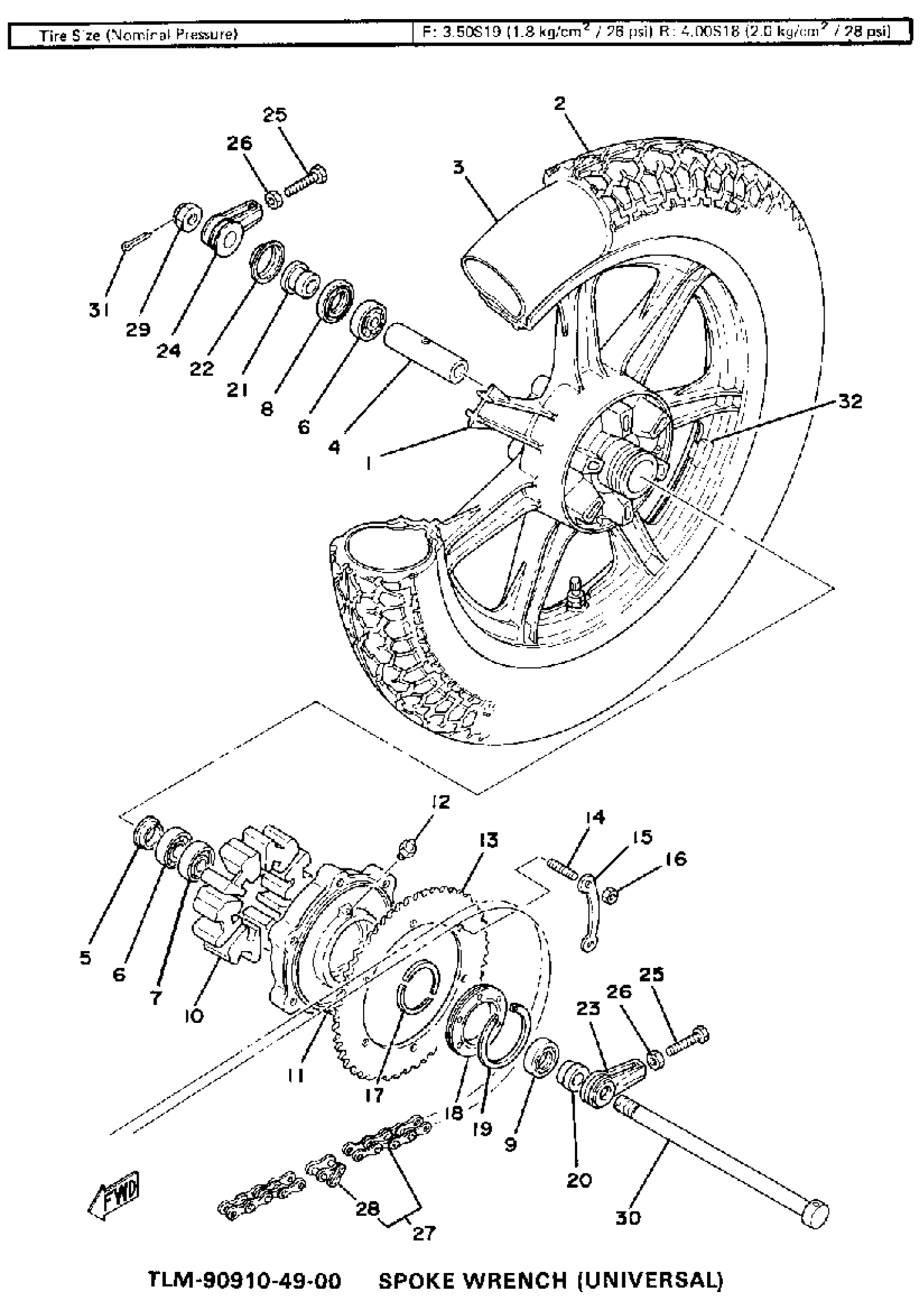

1979 Yamaha SR500F (SR500F) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST REAR

(2J2-25338-20-00)

1
Out of stock

2

400X18 BS G503

(94140-18386-00)

1
Out of stock

3

TUBE (5A8)

94212-18188-00

1

$32.23

In stock

4

SPACER

90560-17311-00

—
Out of stock

5

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

6

1

$31.64

In stock

7

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

8

OIL SEAL (28X47X7-102)

93102-28022-00

1

$12.63

In stock

9

OIL SEAL (25X40X8-248)

93102-25061-00

1

$11.00

In stock

10

DAMPER, CLUTCH

2J2-25364-00-00

1
Out of stock

11

CLUTCH, HUB

1E6-25366-00-98

1
Out of stock

12

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

13

SPROCKET, DRIVN 44T

2J2-25444-10-00

1
Out of stock

14

BOLT, STUD (483)

90116-08218-00

1

$7.08

In stock

15

WASHER

2XJ-25412-00-00

1
Out of stock

16

NUT (583)

90170-08193-00

—
Out of stock

17

STOPPER, HUB

1E6-25318-01-00

—
Out of stock

18

SEAL, HUB DUST

1E6-25319-01-00

—
Out of stock

19

CIRCLIP (1E6)

93450-78080-00

—
Out of stock

20

COLLAR (1E6)

90387-17530-00

—

$9.83

In stock

21

COLLAR

90387-17536-00

1
Out of stock

22

COVER, HUB DUST

(1J3-25118-00-00)

1
Out of stock

23

PULLER, CHAIN 1

48U-25388-00-00

—
Out of stock

24

PULLER, CHAIN 1

(2J2-25388-00-00)

1
Out of stock

25

BOLT

90101-08060-00

—

$4.92

In stock

26

. NUT

95380-08700-00

1

$3.07

In stock

27

CHAIN 50HDS-104L

94580-05104-00

1
Out of stock

28

. JOINT CHAIN

94680-20011-00

1
Out of stock

29

NUT, CASTLE (2H6)

90171-16024-00

—

$21.74

In stock

30

AXLE,WHEEL

150-25381-01-00

1
Out of stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

32

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

32

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock
