1979 Yamaha SR500F (SR500F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

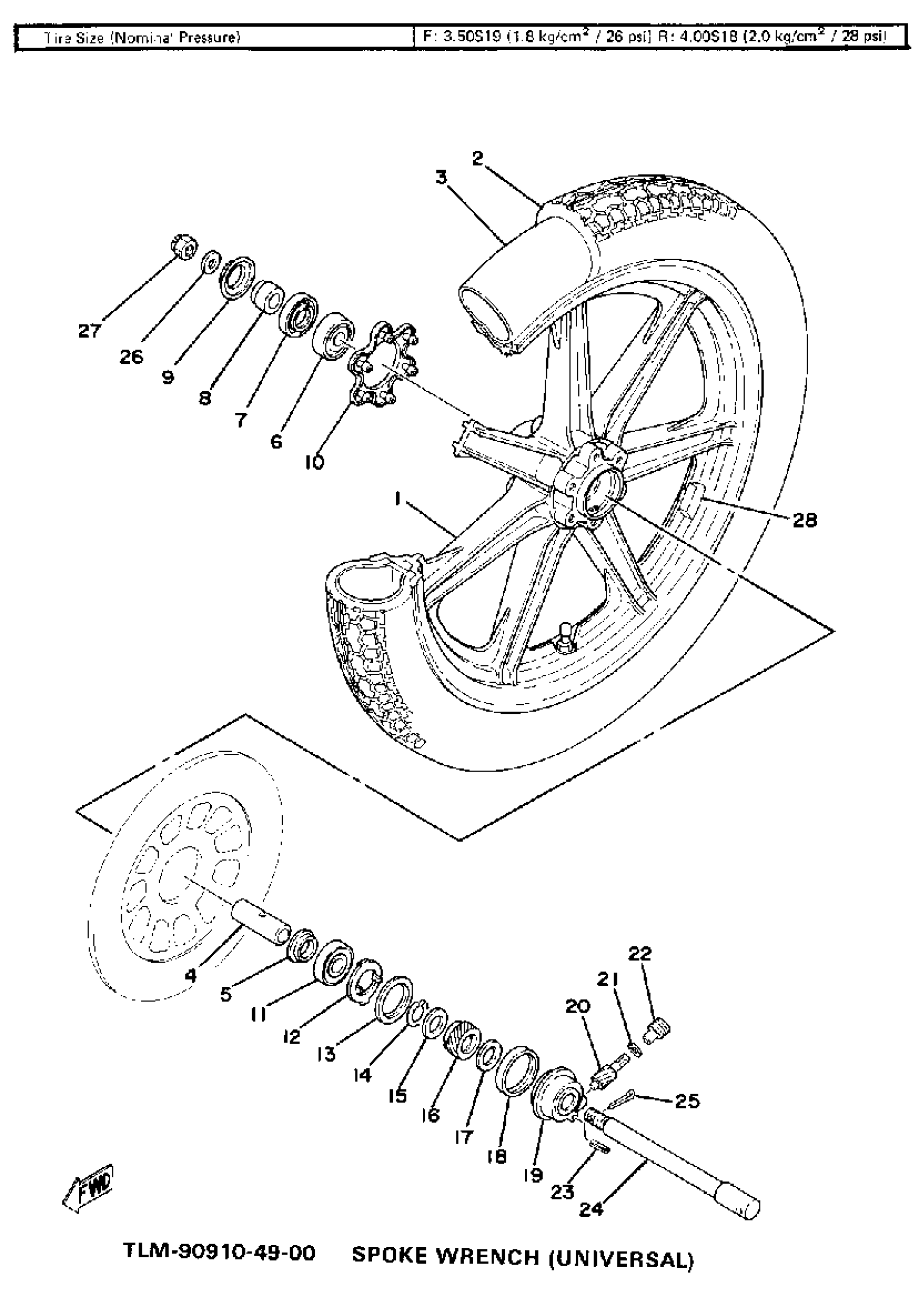

1979 Yamaha SR500F (SR500F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST FRONT

(2H7-25168-20-00)

1
Out of stock

2

350 X 19 BS G503

(94135-19385-00)

1
Out of stock

3

TUBE(42X)

94210-19224-00

1

$28.95

In stock

4

SPACER 341251170100

90560-17126-00

1
Out of stock

5

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

6

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

7

OIL SEAL (28X47X7-102)

93102-28022-00

1

$12.63

In stock

8

COLLAR

90387-17433-00

1
Out of stock

9

COVER, HUB DUST

341-25118-00-00

1
Out of stock

10

COVER, HOUSING

1U4-25847-00-00

1
Out of stock

11

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

12

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

13

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

14

RING, STOP

341-25137-00-00

1
Out of stock

15

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

16

GEAR, DRIVE

341-25135-01-00

1
Out of stock

17

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

18

OIL SEAL (45X56X6)

93105-45017-00

—
Out of stock

19

HOUSING, GEAR

341-25191-01-00

1
Out of stock

20

GEAR, METER

306-25138-00-00

1
Out of stock

21

SHIM, ROD

102-18416-00-00

1
Out of stock

22

BUSH

306-25136-00-00

1
Out of stock

23

PIN, SPRING (V60)

91609-20014-00

—

$1.78

In stock

24

AXLE, WHEEL

99999-04072-00

—
Out of stock

25

PIN, COTTER

91490-30030-00

—

$7.15

In stock

26

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

27

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

28

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

28

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

28

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock
