FRONT FORK

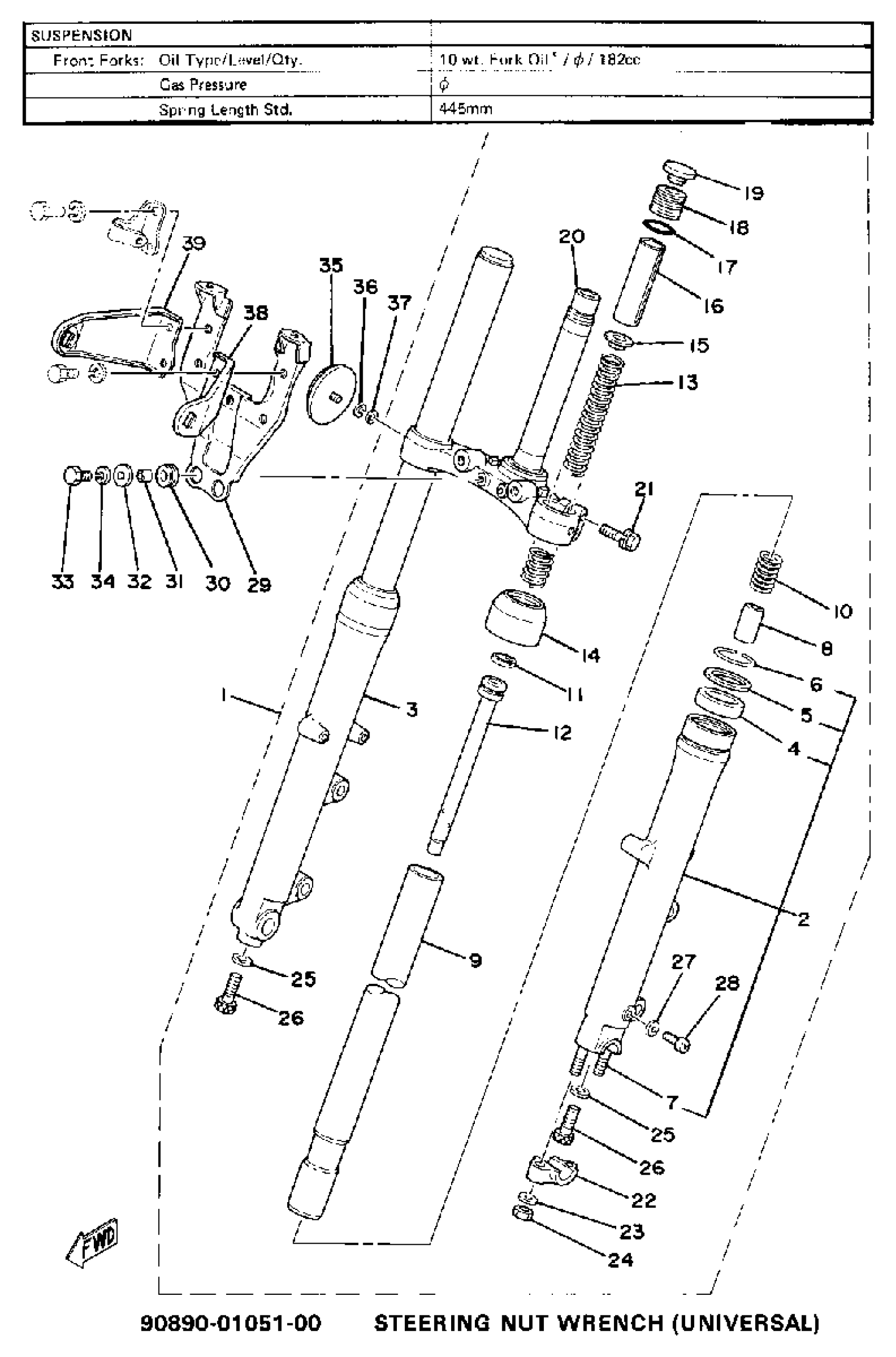

1979 Yamaha SR500F (SR500F) Front Fork Diagram
Find the part on the Front Fork diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY
(2J2-23101-01-00)
2
. TUBE, OUTER 1
2F0-23126-00-00
3
. TUBE, OUTER 2
2F0-23136-00-00
7
BOLT, STUD (278)
90116-08261-00
9
TUBE, INNER
2F0-23110-00-00
10
SPRING, REBOUND
(2F0-23151-00-00)
12
. CYLINDER, FRTFRK
2F0-23170-00-00
13
. SPRING, FRONT FORK
2J2-23141-00-00
15
. SEAT, SPRING UPPER
256-23142-60-00
16
SPACER
(33Y-23118-00-00)
17
RING, CAP BOLT
2F0-23114-00-00
18
. BOLT, CAP
1T3-23111-50-00
19
CAP
1T3-23168-50-00
20
. UNDER BRACKET
2J4-23340-30-33
22
HOLDER,AXLE
341-23167-50-00
29
COVER, UPPER 1
2J2-23121-02-33
35
REFLECTOR, FRONT 1
355-85111-01-00
36
YBS67-5 WASHER, SPRING
92990-05100-00
38
COVER, UPPER 2
2J2-23131-00-93
39
STAY, HEADLIGHT
2J2-23174-00-93
