1972 Yamaha SR433B (SR433B) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

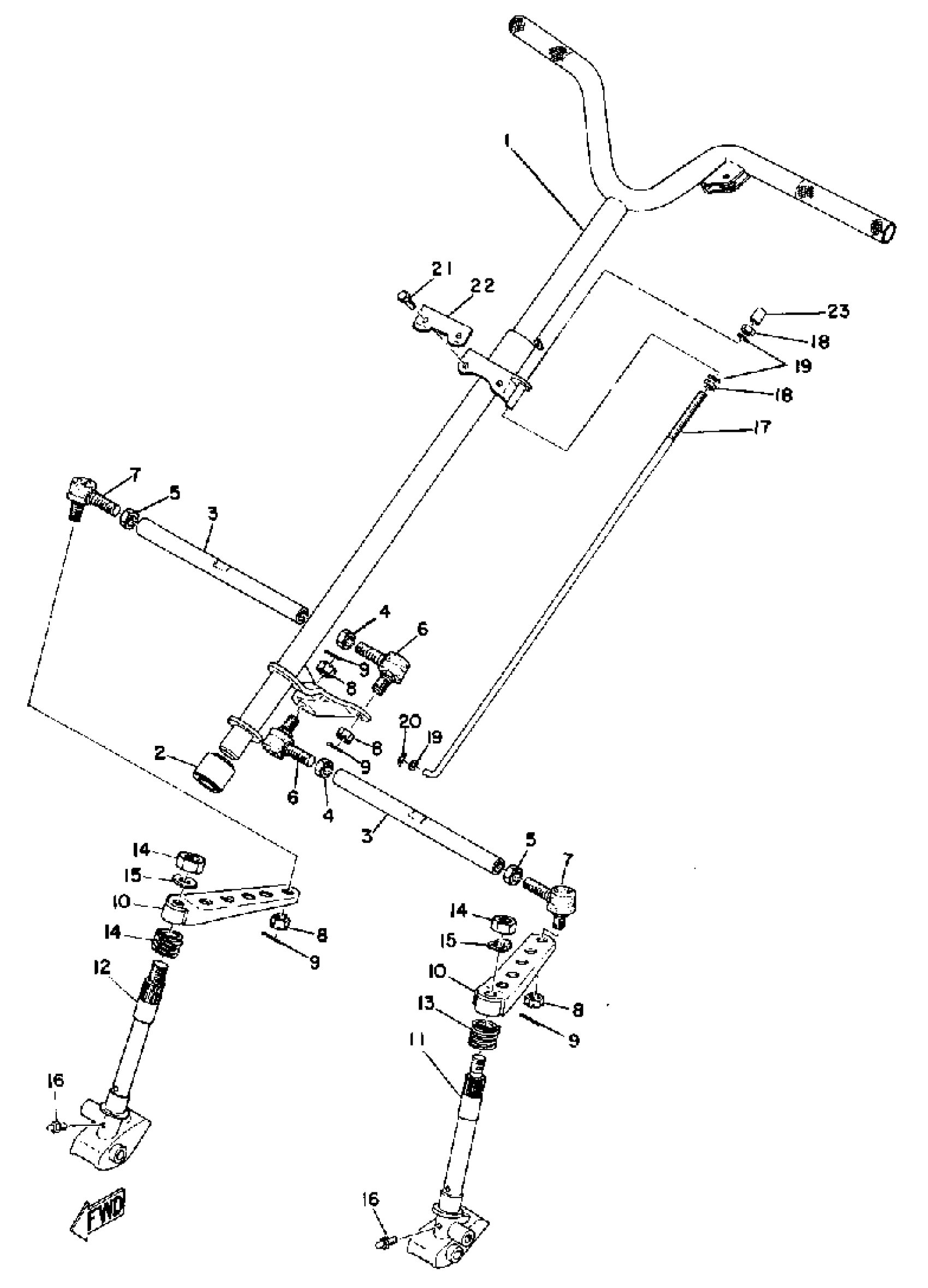

1972 Yamaha SR433B (SR433B) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(829-23811-00-00)

1
Out of stock

2

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

3

ROD, STEERING RELAY

(826-23821-00-00)

1
Out of stock

4

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

5

NUT (821-23834-00)

90170-12054-00

1
Out of stock

6

JOINT, UNIVERSAL 1

(821-23841-90-00)

1
Out of stock

7

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

8

NUT, CASTLE

90171-10002-00

1
Out of stock

9

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

10

ARM, OUTSIDE 1

(810-23851-00-00)

1
Out of stock

11

COLUMN, SKI 1

810-23853-00-00

1
Out of stock

12

COLUMN, SKI 2

810-23854-00-00

1
Out of stock

13

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

14

NUT, HEXAGON

95337-12600-00

1
Out of stock

15

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

16

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

17

BAR, TENSION

813-23861-00-00

1
Out of stock

18

NUT(650)

95380-06700-00

—

$6.17

In stock

19

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

20

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

21

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

22

WASHER, LOCK 1

(810-23894-00-00)

1
Out of stock

23

CAP, TENSION BAR

(818-23862-00-00)

1
Out of stock
