1972 Yamaha SR433B (SR433B) Steering Gate Diagram

← All diagrams

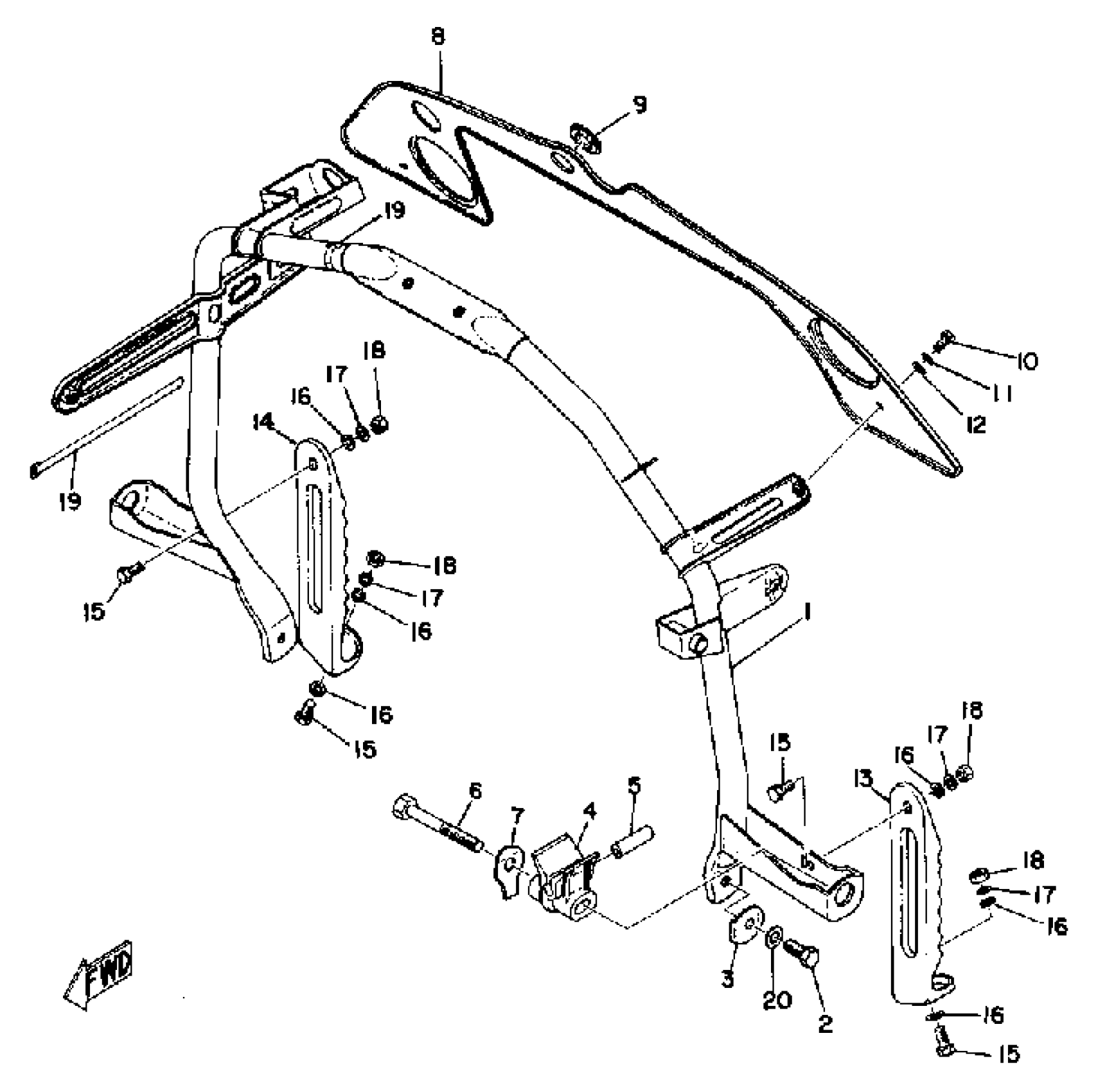

Find the part on the Steering Gate diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SR433B (SR433B) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(829-23870-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

4

CLAMP

(90464-09003-00)

1
Out of stock

5

STOPPER

821-77188-01-00

1
Out of stock

6

BOLT (810-77537-00)

90101-08039-00

1
Out of stock

7

WASHER, LOCK

(90215-08039-00)

1
Out of stock

8

PANEL, INSTRUMENT

(829-77711-00-00)

1
Out of stock

9

GROMMET

(102-82598-00-00)

1
Out of stock

10

BOLT

97027-05010-00

—

$5.62

In stock

11

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

12

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

13

FOOTREST 1

(810-27411-00-00)

1
Out of stock

14

FOOTREST 2

(810-27421-00-00)

1
Out of stock

15

BOLT (661)

97013-06012-00

1

$4.71

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

20

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
