1972 Yamaha SR433B (SR433B) SKI - SKI Damper Diagram

← All diagrams

Find the part on the SKI - SKI Damper diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

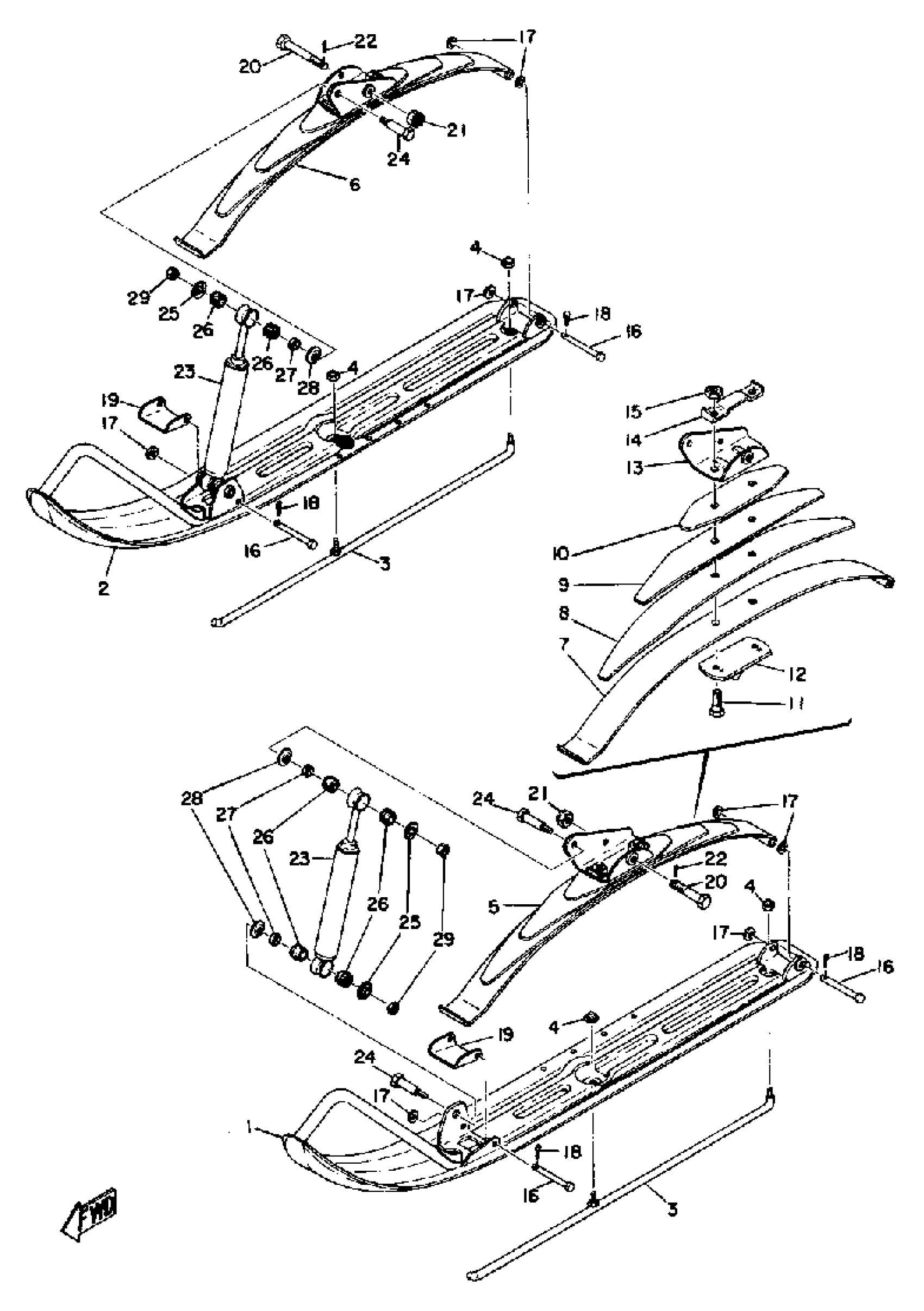

1972 Yamaha SR433B (SR433B) SKI - SKI Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

(829-23710-00-00)

1
Out of stock

2

SKI 2

(829-23720-00-00)

1
Out of stock

3

RUNNER 1

821-23731-01-00

1
Out of stock

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

5

SPRING ASSEMBLY 1

(829-23760-00-00)

1
Out of stock

6

SPRING ASSEMBLY 2

(829-23770-00-00)

1
Out of stock

7

LEAF 1

(810-23761-00-00)

1
Out of stock

8

. LEAF 3

811-23763-00-00

1
Out of stock

9

LEAF 4

(810-23764-00-00)

1
Out of stock

10

LEAF 5

(810-23771-00-00)

1
Out of stock

11

BOLT

90101-10025-00

1

$7.51

In stock

12

. SEAT, SPRING 1

802-23768-00-00

1
Out of stock

13

SADDLE 1

(829-23766-00-00)

1
Out of stock

13

SADDLE 2

(829-23776-00-00)

1
Out of stock

14

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

15

NUT(6TD)

95337-10600-00

—

$6.98

In stock

16

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

17

WASHER, PLATE(49E)

90201-087H6-00

—

$1.62

In stock

18

PIN COTTER

91490-30025-00

—
Out of stock

19

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

20

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

21

NUT, SLOTTED

95306-10900-00

1
Out of stock

22

PIN, COTTER

91490-20025-00

—

$1.31

In stock

23

SHOCK ABSORBER ASSEMBLY

(829-23350-00-00)

1
Out of stock

24

BOLT

(90109-08014-00)

1
Out of stock

25

WASHER, SPEC''L SHAP

(90209-13012-00)

1
Out of stock

26

BUSH, SPEC''L RUBBER (829-23357-00)

90385-12004-00

1
Out of stock

27

COLLAR

(90387-12104-00)

1
Out of stock

28

WASHER, SPEC''L SHAP

(90209-09011-00)

1
Out of stock

29

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock
