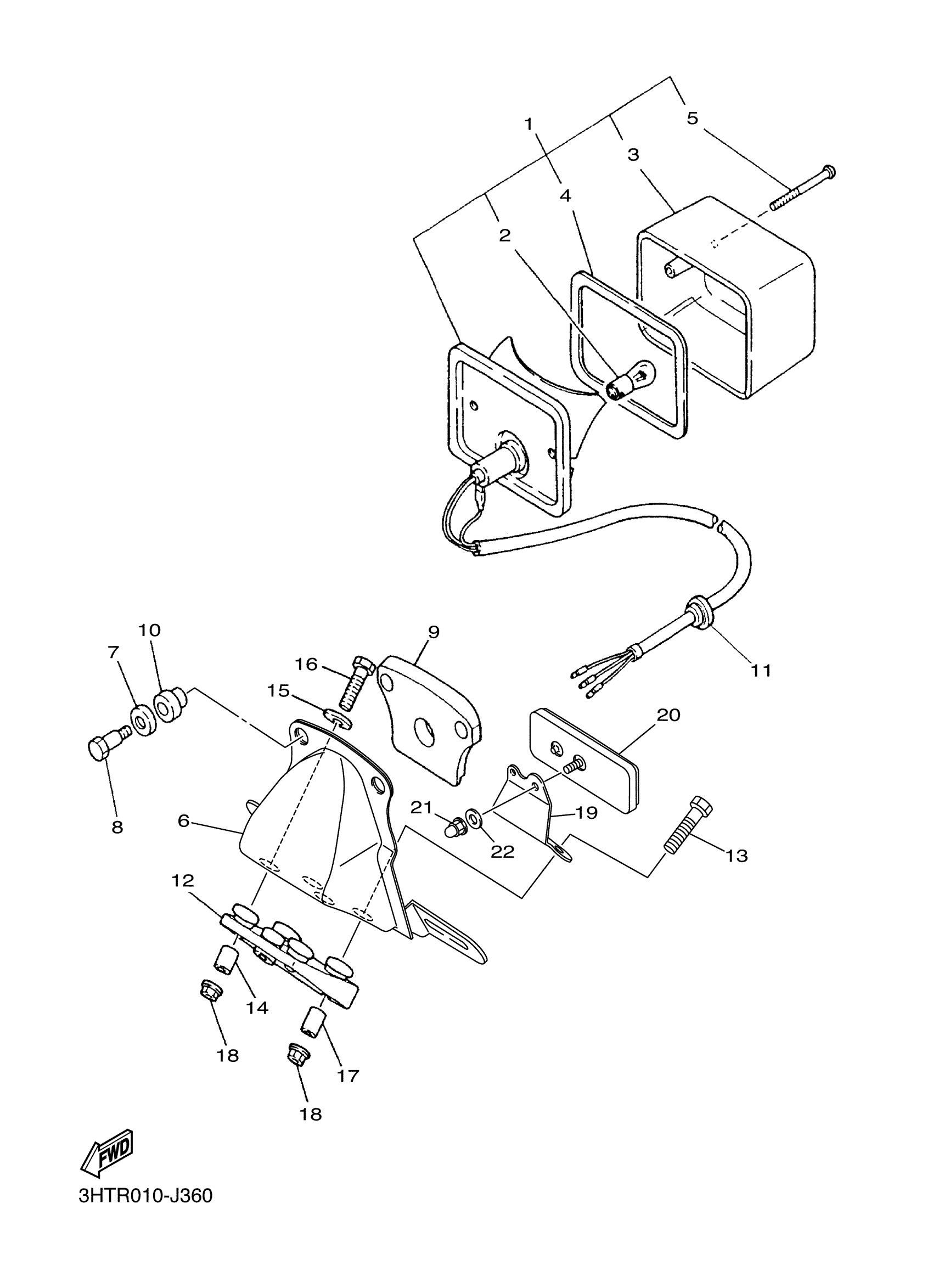

Yamaha SR400JL (SR400) 2RDG 2018 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASS

2RD-84710-10-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, TAIL LAMP

1M1-84521-60-00

$34.25

4

GASKET, TAIL LENS

1M1-84523-60-00

$10.29

5

SCREW, ADJUSTING

5BF-8433E-00-00

$5.70

6

BRACKET, LICENSE

3HT-84751-20-00

$109.18

7

WASHER, SPECIAL

2H7-84754-00-00

$9.70

8

SCREW

3HT-84526-00-00

$3.55

9

SEAT, BASE

1M1-84512-60-00

Unavailable

10

DAMPER

1M1-84527-60-00

$7.03

11

GROMMET 152845180000

90480-12013-00

$6.02

12

DAMPER, TAIL LAMP.

2J2-84753-00-00

Unavailable

13

BOLT, HEXAGON

97017-06030-00

$2.80

14

COLLAR

90387-07020-00

$5.75

15

WASHER, PLATE

90201-06380-00

$0.54

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

COLLAR

90387-0714A-00

Unavailable

18

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

19

BRACKET, REFLECTOR

3HT-21641-00-00

Unavailable

20

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

21

NUT, CROWN

90176-05003-00

Unavailable

22

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
