2018 Yamaha SR400 (SR400JL) Electrical 2 Diagram

← All diagrams

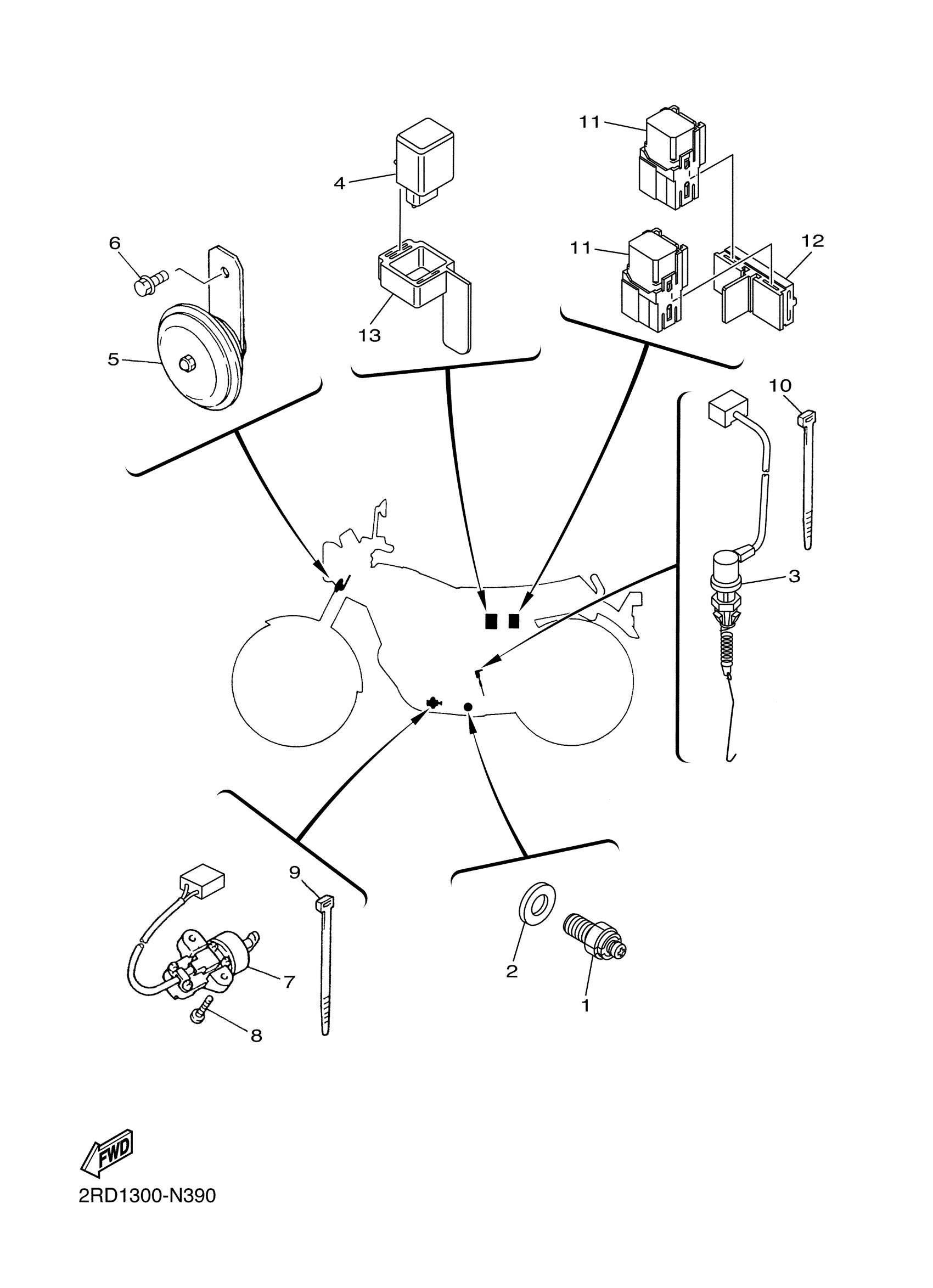

Find the part on the Electrical 2 diagram for your 2018 Yamaha SR400 (SR400JL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha SR400 (SR400JL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

2

GASKET (1KH,1.0T)

90430-10148-00

1

$4.74

In stock

3

STOP SWITCH ASSY

3HT-82530-00-00

—
Out of stock

4

FLASHER RELAY ASSY

3HT-83350-01-00

—
Out of stock

5

HORN

25G-83371-00-00

—
Out of stock

6

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

7

SWITCH, SIDE STAND

3D8-82566-71-00

—
Out of stock

8

SCREW, PAN HEAD

98507-05014-00

1

$6.18

In stock

9

BAND

1UA-82591-00-00

1
Out of stock

10

BAND

1UA-82591-00-00

1
Out of stock

11

RELAY ASSY (5UM-E0)

5UM-81950-E0-00

1

$18.21

In stock

12

HOLDER, RELAY

5XT-81952-00-00

—

$9.43

In stock

13

DAMPER

3HT-82176-00-00

—
Out of stock
