2018 Yamaha SR400 (SR400JL) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 2018 Yamaha SR400 (SR400JL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

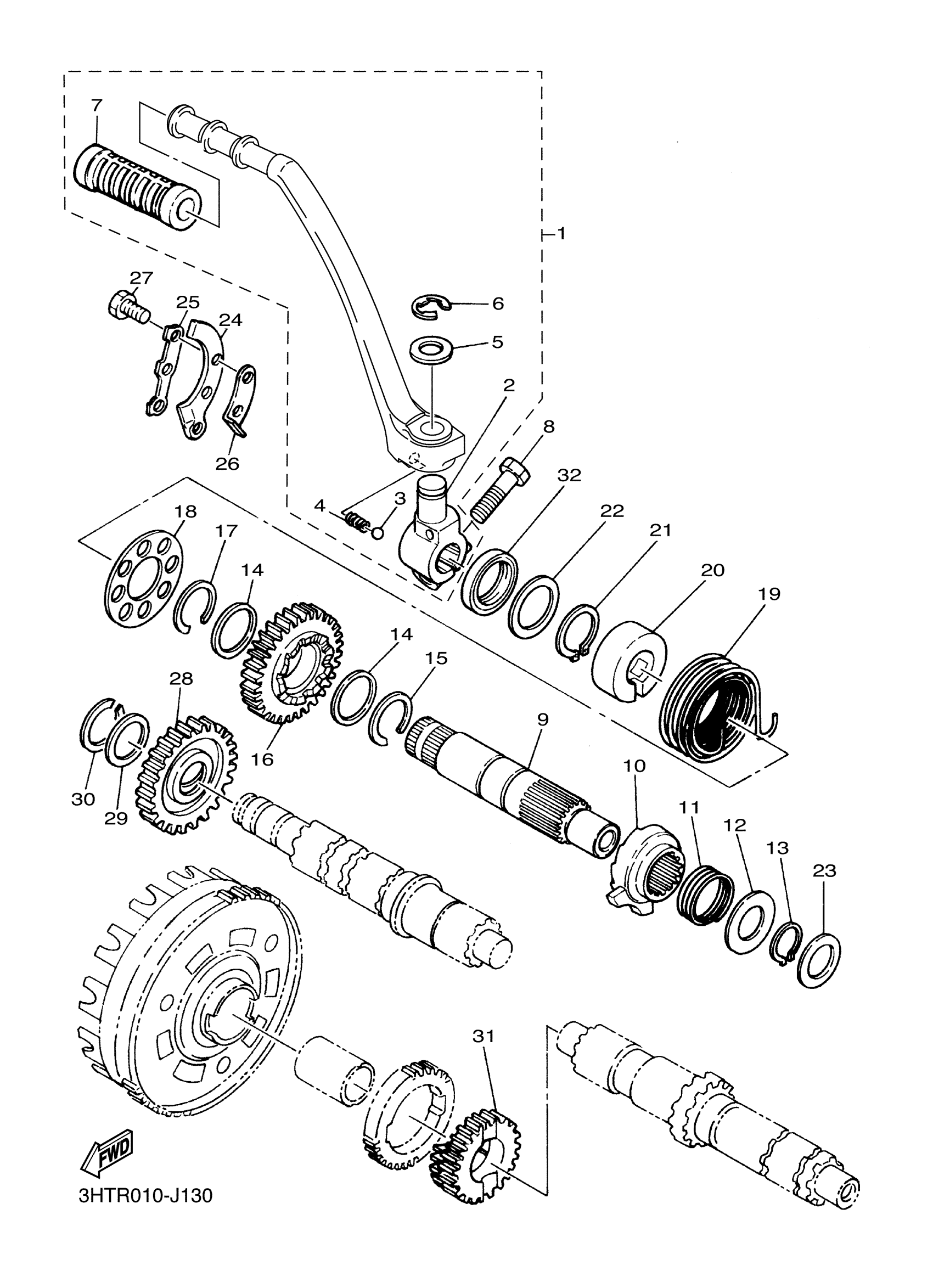

2018 Yamaha SR400 (SR400JL) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSY

3HT-15610-R0-00

—
Out of stock

2

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

3

BALL (12R)

93507-32031-00

1
Out of stock

4

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

5

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

6

CIRCLIP

99006-10600-00

1

$6.91

In stock

7

COVER, KICK CRANK

1T1-15618-00-00

1
Out of stock

8

BOLT

97024-08030-00

1
Out of stock

9

AXLE, KICK

583-15661-00-00

—
Out of stock

10

WHEEL, RACHET

583-15671-00-00

—
Out of stock

11

SPRING COMPRESSION363156750000

90501-23143-00

—
Out of stock

12

COVER, SPRING

363-15676-00-00

1
Out of stock

13

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

14

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

15

CIRCLIP

93440-25020-00

1
Out of stock

16

GEAR, KICK

583-15641-00-00

—
Out of stock

17

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

18

COVER, SPRING

583-15676-00-00

1
Out of stock

19

SPRING, TORSION (583 KICK)

90508-32280-00

—
Out of stock

20

SPACER

90560-25154-00

1
Out of stock

21

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

22

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

23

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

24

GUIDE, RACHET WHEEL

583-15674-00-00

—
Out of stock

25

WASHER, LOCK

363-15686-00-00

—
Out of stock

26

STOPPER

434-15668-00-00

—
Out of stock

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

28

GEAR, KICK IDLE

583-15651-00-00

—
Out of stock

29

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

30

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

31

GEAR, KICK PINION

3HT-15631-00-00

—
Out of stock

32

OIL SEAL (25X35X7-256)

93102-25064-00

—
Out of stock
