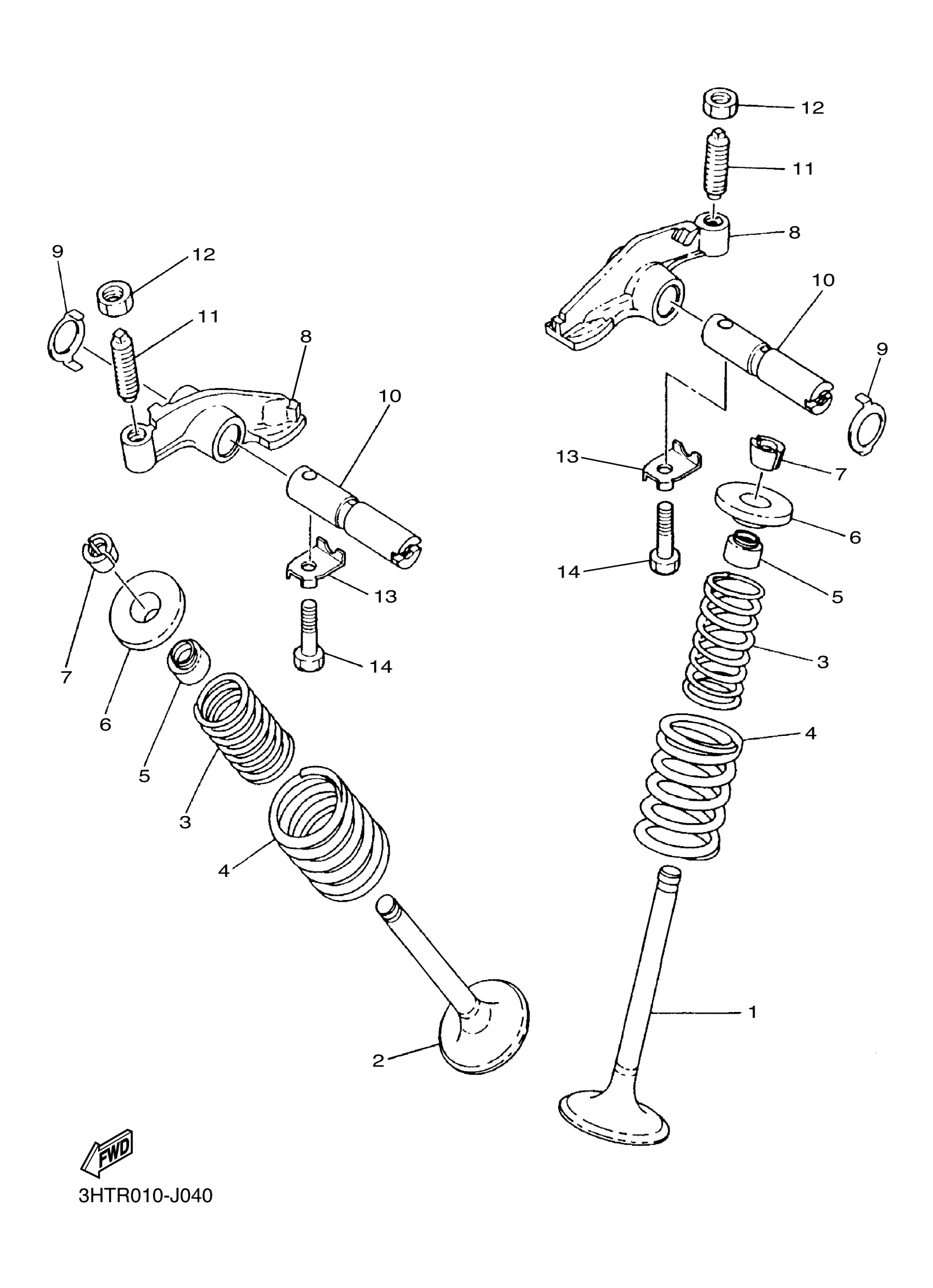

Yamaha SR400GCB (SR400 CA) 2RDA 2016 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

2J2-12111-01-00

$56.31

2

VALVE, EXHAUST

5A8-12121-00-00

$85.21

3

SPRING, COMPRESSION (1T1)

90501-31454-00

$10.96

4

SPRING, COMPRESSION (1T1)

90501-44455-00

$13.44

5

SEAL, VALVE STEM OIL

341-12119-02-00

$13.26

6

RETAINER, VALVE SPRING

256-12117-02-00

$14.14

7

LOCK, VALVE SPRING (447)

341-12118-00-00

$8.14

8

ARM, VALVE ROCKER

3HT-12151-00-00

$46.77

9

WASHER, WAVE

90206-12002-00

$3.12

10

SHAFT, ROCKER 2

583-12156-02-00

$41.61

11

SCREW, VALVE ADJUSTING

3HT-12159-R0-00

$13.61

12

NUT, HEXAGON

90170-08173-00

$6.26

13

WASHER, LOCK (3Y3)

90215-06168-00

$4.02

14

SCREW 341272170000

90153-06008-00

$5.67
