2016 Yamaha SR400 CA (SR400GCB) Oil Pump Diagram

← All diagrams

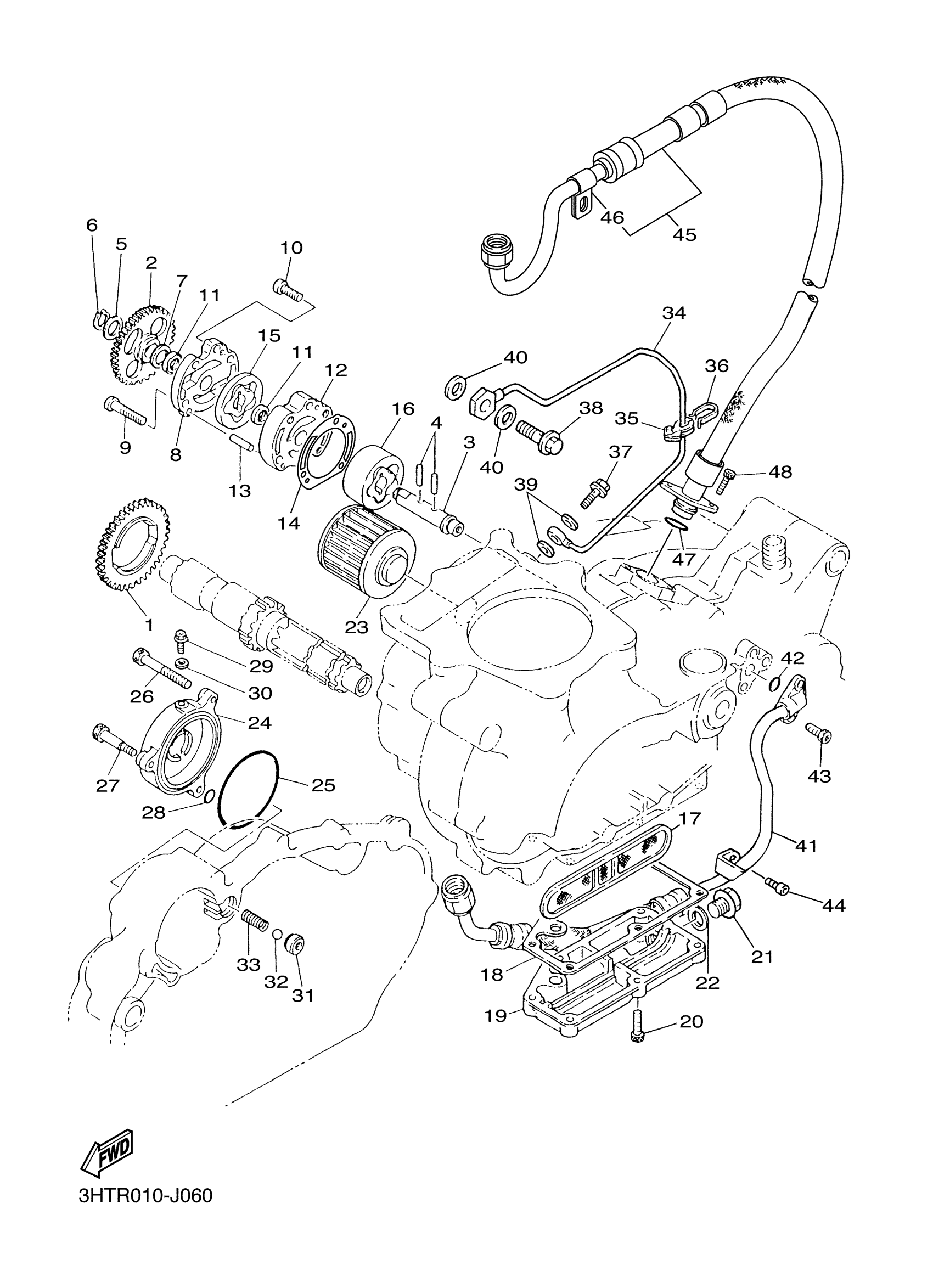

Find the part on the Oil Pump diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SR400 CA (SR400GCB) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, DRIVE

583-13324-00-00

—
Out of stock

2

GEAR, DRIVEN

583-13325-00-00

—
Out of stock

3

SHAFT, PUMP

583-13314-01-00

—
Out of stock

4

PIN,DOWEL

93603-17070-00

1
Out of stock

5

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

6

CIRCLIP(10W)

99009-10400-00

1
Out of stock

7

WASHER PLATE 164185720000

90201-12166-00

1
Out of stock

8

COVER, PUMP

583-13316-02-00

—
Out of stock

9

BOLT, FLANGE

95022-06030-00

1
Out of stock

10

BOLT, FLANGE

95022-06016-00

1
Out of stock

11

OIL SEAL (11X15X3-341)

93104-11038-00

1
Out of stock

12

HOUSING, ROTOR

583-13336-02-00

—
Out of stock

13

PIN,DOWEL (620)

93604-22050-00

1
Out of stock

14

GASKET, PUMP COVER

3HT-13329-00-00

1
Out of stock

15

ROTOR 1 ASSY

583-13310-01-00

—
Out of stock

16

ROTOR 2 ASSY

583-13320-00-00

—
Out of stock

17

STRAINER, OIL

583-13411-00-00

—
Out of stock

18

GASKET, STRAINER COVER

3HT-13414-00-00

—
Out of stock

19

COVER, STRAINER

583-13417-01-00

—
Out of stock

20

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

21

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

—
Out of stock

22

GASKET

214-11198-01-00

—
Out of stock

23

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

—
Out of stock

24

COVER, ELEMENT

2J2-13447-00-00

—
Out of stock

25

O-RING (583 OIL CLEANER)

93210-64297-00

—
Out of stock

26

BOLT, SOCKET

91314-06060-00

—
Out of stock

27

BOLT (2H0)

90109-06511-00

—
Out of stock

28

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

—
Out of stock

29

SCREW

90149-05018-00

—
Out of stock

30

GASKET

90430-05126-00

1
Out of stock

31

SEAT, CHECK BALL

583-13113-00-00

—
Out of stock

32

BALL

93503-08007-00

—
Out of stock

33

SPRING (583 OIL CLEANER)

90501-05378-00

—
Out of stock

34

PIPE, DELIVERY 1

33Y-13161-01-00

—
Out of stock

35

CLAMP

4X7-15485-01-00

—
Out of stock

36

CLIP (4X7)

90468-05113-00

—
Out of stock

37

BOLT, UNION

90401-08006-00

—
Out of stock

38

BOLT, UNION(2Y0)

90401-14097-00

—
Out of stock

39

GASKET

90430-08119-00

—
Out of stock

40

GASKET 256131670000

90430-14043-00

—
Out of stock

41

HOSE, OIL 1

3GW-13464-01-00

—
Out of stock

42

O-RING (371)

93210-10197-00

—
Out of stock

43

BOLT, SOCKET

91314-06016-00

—
Out of stock

44

BOLT,SOCKET

91317-06012-00

—
Out of stock

45

HOSE, OIL 2

3HT-13465-R3-00

—
Out of stock

46

. CLAMP

90461-10042-00

1
Out of stock

47

O-RING (341)

93210-15171-00

—
Out of stock

48

BOLT, SOCKET

91314-06016-00

—
Out of stock
