2016 Yamaha SR400 CA (SR400GCB) Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

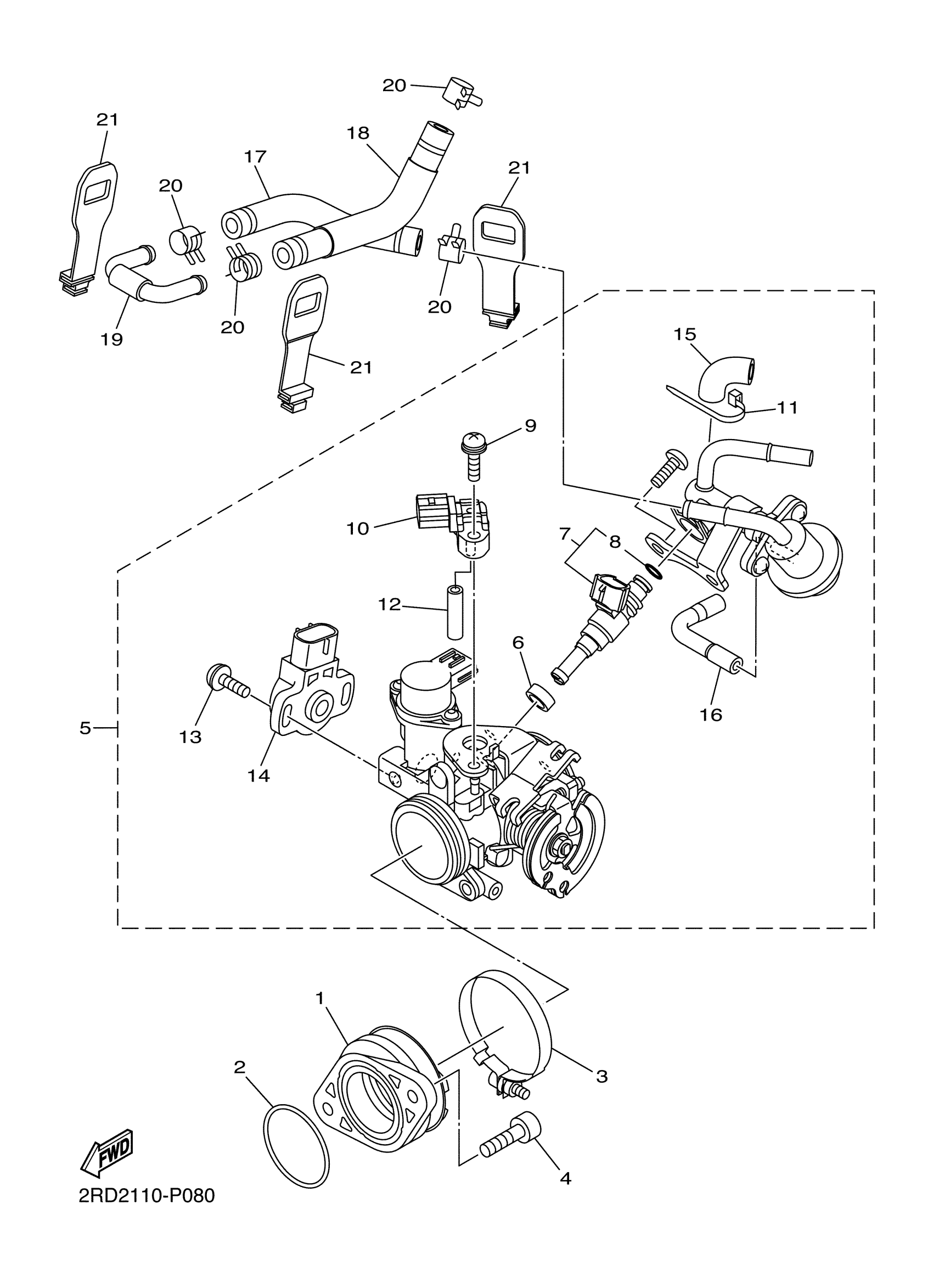

2016 Yamaha SR400 CA (SR400GCB) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

3HT-13586-R0-00

—
Out of stock

2

O-RING(36Y)

93210-40659-00

—

$7.95

In stock

3

HOSE CLAMP ASSY

90450-54006-00

1

$12.80

In stock

4

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

5

THROTTLE BODY ASSY

3HT-13750-R1-00

—
Out of stock

6

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

7

INJECTOR ASSY

4C8-13761-00-00

1

$185.99

In stock

8

O-RING

5PS-14147-00-00

1

$10.95

In stock

9

SCREW

2C0-14216-00-00

1

$3.03

In stock

10

SENSOR, PRESSURE

5S7-82380-00-00

1

$161.56

In stock

11

CLIP

4KM-14137-00-00

1

$5.26

In stock

12

PIPE 1

5FL-14348-10-00

1

$4.00

In stock

13

SCREW

8CC-14216-10-00

1

$7.12

In stock

14

THROTTLE SENSOR ASSY

3P6-85885-01-00

1
Out of stock

15

HOSE

3D7-14987-00-00

—
Out of stock

16

HOSE, VACUUM SENSING 2

3HT-13544-R0-00

—
Out of stock

17

PIPE, FUEL 2

2RD-13972-00-00

—
Out of stock

18

PIPE, FUEL 3

2RD-13973-00-00

—
Out of stock

19

NIPPLE ASSY

3HT-14389-R0-00

—
Out of stock

20

CLIP

90467-12003-00

—

$6.25

In stock

21

COVER 2

5JW-1479J-02-00

—
Out of stock
