2016 Yamaha SR400 CA (SR400GCB) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

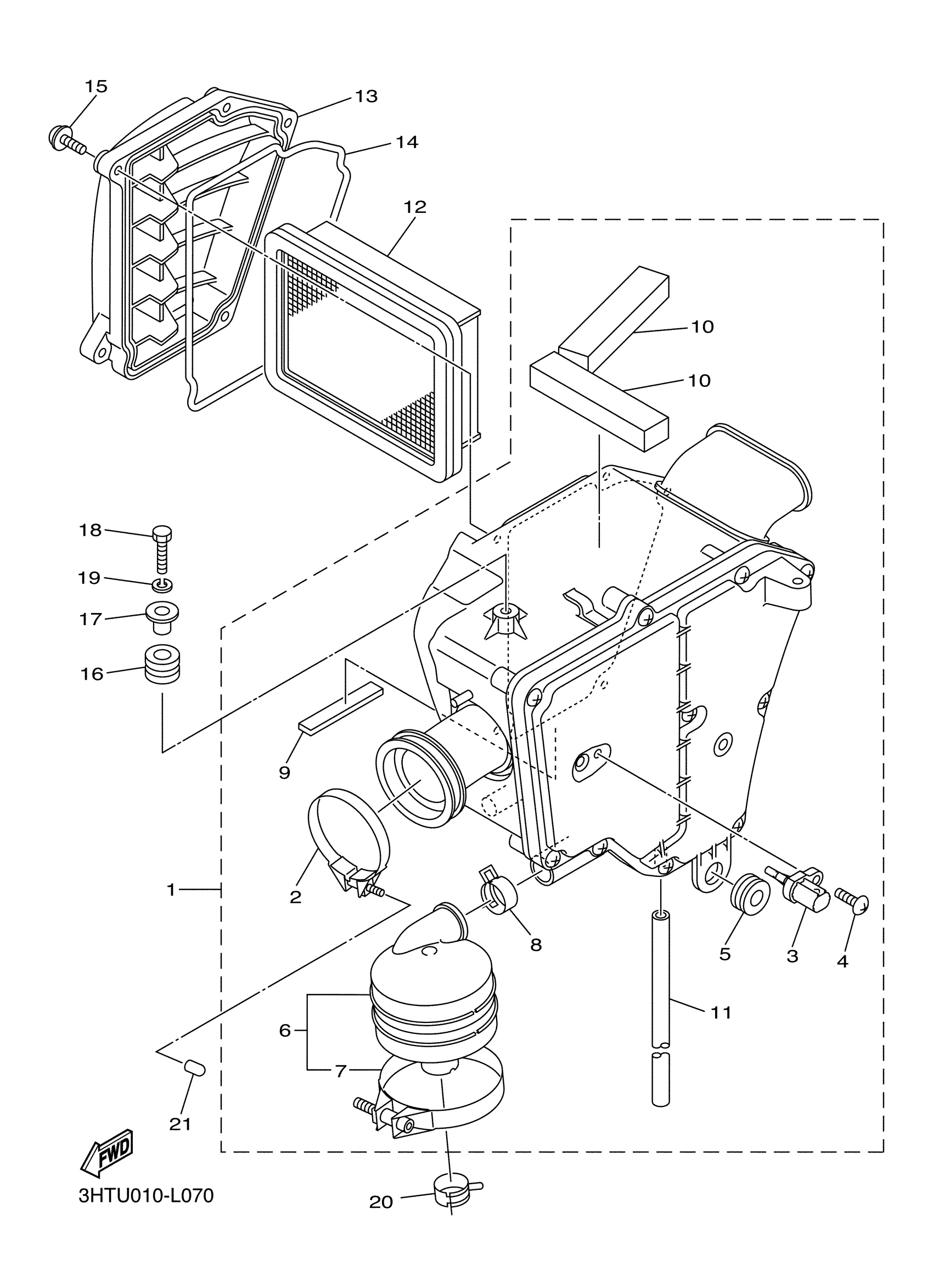

2016 Yamaha SR400 CA (SR400GCB) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIR CLEANER CASE ASSY

3HT-14401-R0-00

—
Out of stock

2

HOSE CLAMP ASSY

90450-55003-00

1

$5.32

In stock

3

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

1

$49.83

In stock

4

SCREW, BIND(3XC)

98904-05012-00

1

$1.23

In stock

5

GROMMET (16R)

90480-14329-00

1

$6.68

In stock

6

BREATHER ASSY

3HT-15370-R0-00

—
Out of stock

7

HOSE CLAMP ASSY

90450-73002-00

1
Out of stock

8

CLIP(MG5)

90467-20154-00

1
Out of stock

9

DAMPER 1

3HT-14425-R0-00

—
Out of stock

10

DAMPER 2

3HT-14426-R0-00

—
Out of stock

11

HOSE (L450)

90445-10144-00

1

$4.52

In stock

12

ELEMENT, AIR CLEANER

4B5-14451-00-00

1
Out of stock

13

COVER, CLEANER CASE 1

3HT-1441A-R1-00

1
Out of stock

14

SEAL

3HT-14462-R0-00

—
Out of stock

15

SCREW, BIND

98902-05020-00

1

$1.43

In stock

16

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

17

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

WASHER, SPRING

92907-06100-00

—
Out of stock

20

CLIP(MG5)

90467-20154-00

1
Out of stock

21

CAP

895-14169-00-00

—

$4.02

In stock
← Fuel Tank Intake 2 →
