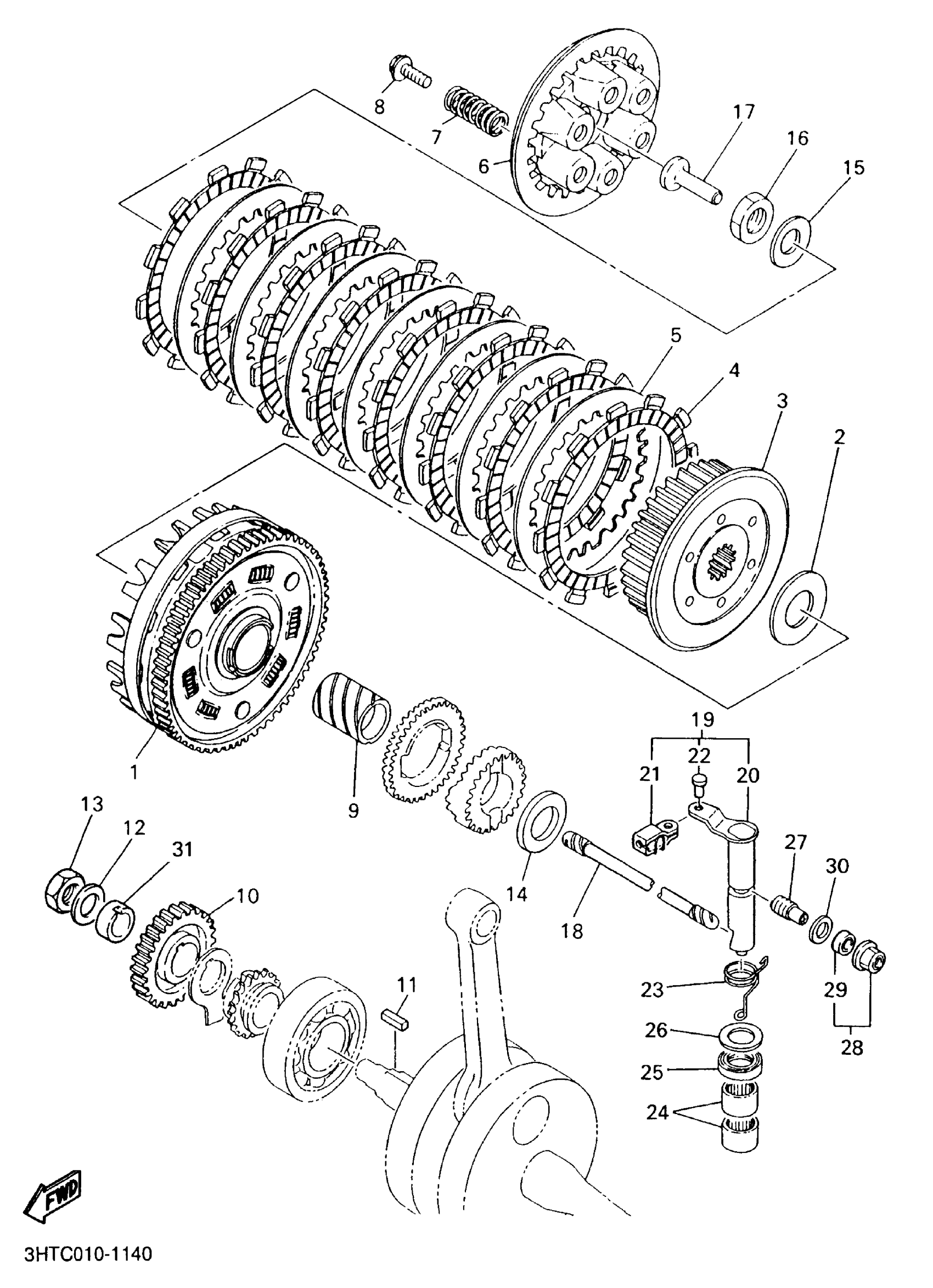

Find the part on the Clutch diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SR400 CA (SR400GCB) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRIVEN GEAR COMP

2J2-16150-00-00

—
Out of stock

2

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

3

BOSS, CLUTCH

583-16371-00-00

1
Out of stock

4

PLATE, FRICTION 1

5Y1-16321-00-00

1
Out of stock

5

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

6

PLATE, PRESSURE

498-16351-00-00

—
Out of stock

7

SPRING, COMPRESSION

90501-234L3-00

—

$7.72

In stock

8

SCREW, WITH WASHER (583)

90159-06010-00

1

$6.54

In stock

9

SPACER (583)

90560-25153-00

—
Out of stock

10

GEAR, PRIMARY DRIVE

3HT-16111-00-00

—
Out of stock

11

KEY, STRAIGHT (583)

90282-07021-00

1

$7.52

In stock

12

WASHER (517 CLUTCH)

90208-16019-00

1
Out of stock

13

NUT

90170-16425-00

1
Out of stock

14

PLATE, THRUST

363-16154-00-00

1

$14.25

In stock

15

SPRING

214-16119-00-00

—
Out of stock

16

NUT HEXAGON 363115550000

90170-18086-00

—
Out of stock

17

ROD, PUSH

174-16356-00-00

—
Out of stock

18

ROD, PUSH

583-16357-01-00

—
Out of stock

19

AXLE PUSH LEVER ASSY

583-16302-00-00

—
Out of stock

20

PUSH LEVER COMP.

583-16381-00-00

—
Out of stock

21

JOINT

214-16389-00-00

—
Out of stock

22

PIN (558)

90243-06016-00

—
Out of stock

23

SPRING, TORSION (583 CLUTCH)

90508-12279-00

—
Out of stock

24

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

—
Out of stock

25

OIL SEAL (48U)

93102-17357-00

—
Out of stock

26

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

27

SCREW, ADJUSTING

364-16343-00-00

—
Out of stock

28

NUT, CLUTCH ADJUSTING

583-16344-00-00

—
Out of stock

29

OIL SEAL (7X13X4-256)

93104-07036-00

—
Out of stock

30

WASHER, PLATE 3412175700

90201-12172-00

—

$2.91

In stock

31

COLLAR (2J2)

90387-20644-00

—
Out of stock
