2016 Yamaha SR400 CA (SR400GCB) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

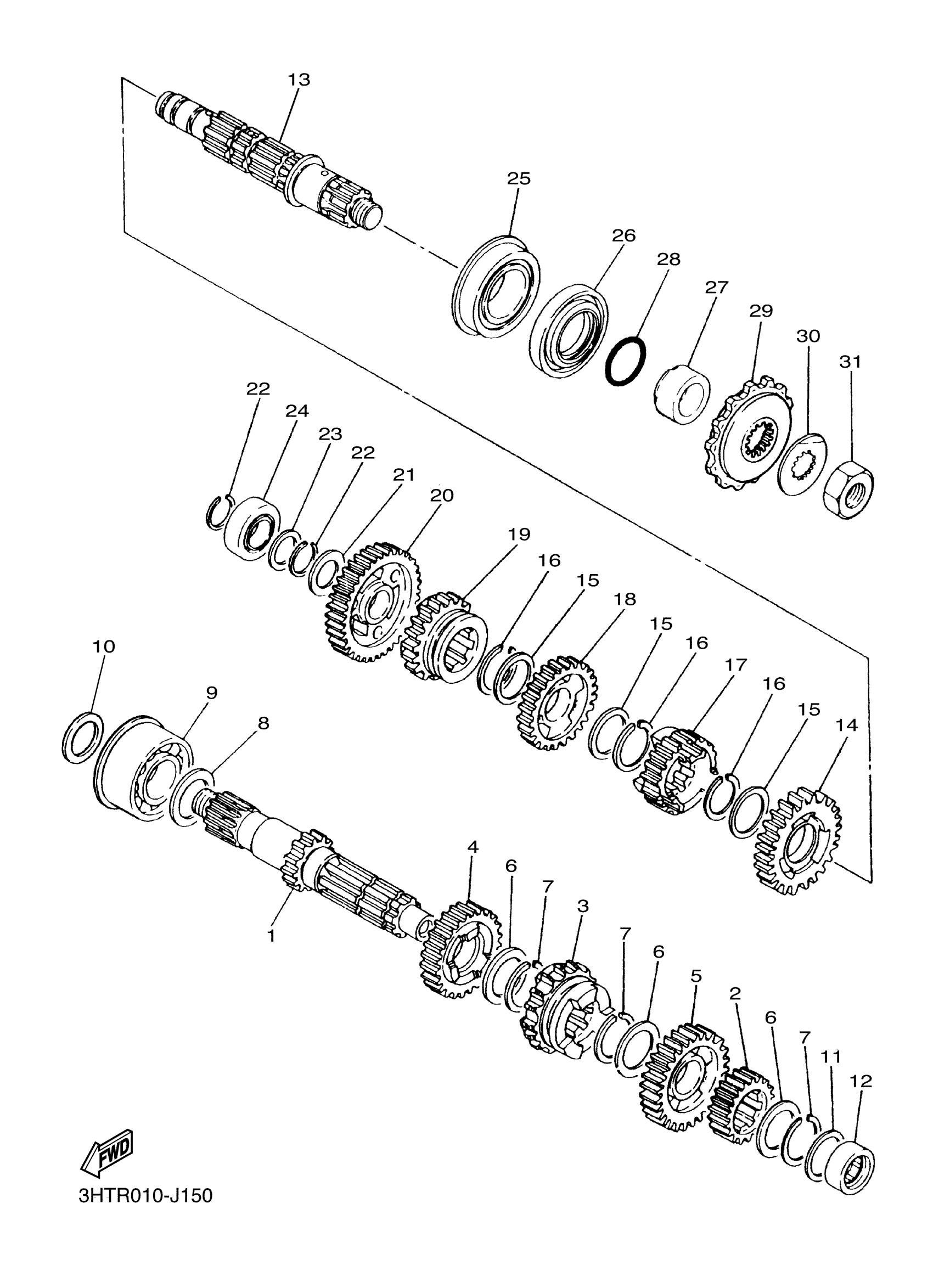

2016 Yamaha SR400 CA (SR400GCB) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

3HT-17411-00-00

1
Out of stock

2

GEAR, 2ND PINION

583-17121-00-00

—
Out of stock

3

GEAR, 3RD PINION

3GW-17131-00-00

—
Out of stock

4

GEAR, 4TH PINION

583-17141-00-00

1
Out of stock

5

GEAR, 5TH PINION

3GW-17151-00-00

—
Out of stock

6

WASHER, PLATE(59W)

90201-253K0-00

1
Out of stock

7

CIRCLIP

93440-25020-00

1
Out of stock

8

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

9

BEARING (4R8)

93306-20546-00

—
Out of stock

10

WASHER, PLATE (3X0)

90201-252A4-00

—
Out of stock

11

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

12

BEARING

93311-42077-00

1
Out of stock

13

DRIVE AXLE ASSY

3HT-17402-R0-00

—
Out of stock

14

GEAR, 2ND WHEEL

583-17221-00-00

—
Out of stock

15

WASHER, PLATE(59W)

90201-253K0-00

1
Out of stock

16

CIRCLIP

93440-25020-00

1
Out of stock

17

GEAR, 5TH WHEEL

3GW-17251-00-00

—
Out of stock

18

GEAR, 3RD WHEEL

3GW-17231-00-00

—
Out of stock

19

GEAR, 4TH WHEEL

583-17241-00-00

—
Out of stock

20

GEAR, 1ST WHEEL

583-17211-00-00

—
Out of stock

21

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

22

CIRCLIP (525)

93410-20038-00

—
Out of stock

23

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

24

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

—
Out of stock

25

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

—
Out of stock

26

OIL SEAL

93102-35469-00

—
Out of stock

27

COLLAR(3GW)

90387-250V7-00

—
Out of stock

28

O-RING

93210-22298-00

—
Out of stock

29

SPROCKET, DRIVE

3FH-17460-00-00

—
Out of stock

30

WASHER, LOCK(1KT)

90215-21256-00

—
Out of stock

31

NUT

90179-18003-00

—
Out of stock
