1981 Yamaha SR250TH (SR250TH) Crankcase Cover Diagram

← All diagrams

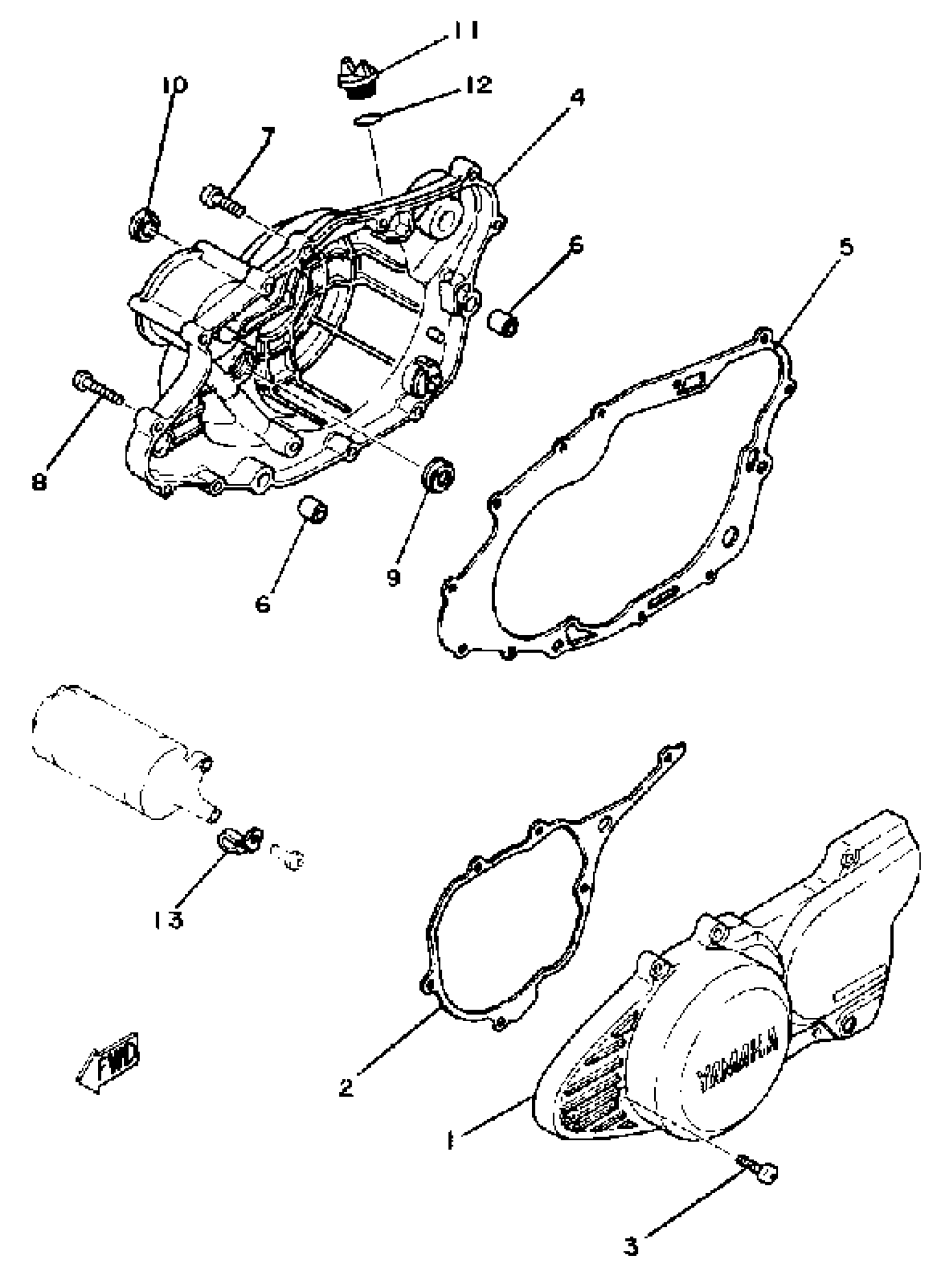

Find the part on the Crankcase Cover diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER CRANK CASE 1

3Y6-15411-04-00

—

$128.82

In stock

2

GASKET, CRANKCASE COVER 1

3Y6-15451-01-00

—
Out of stock

3

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

4

COVER, CRANKCASE 2

3Y6-15421-00-00

1
Out of stock

5

GASKET, CRANKCASE COVER 2

3Y6-15461-01-00

1

$25.46

In stock

6

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

7

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

8

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

9

OIL SEAL (3Y1)

93101-14092-00

1
Out of stock

10

GAUGE, LEVEL

3KM-15361-00-00

1
Out of stock

11

PLUG, OIL

3Y1-15363-10-00

1

$17.02

In stock

12

O-RING (646)

93210-19123-00

—

$6.91

In stock

13

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock
