1981 Yamaha SR250TH (SR250TH) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

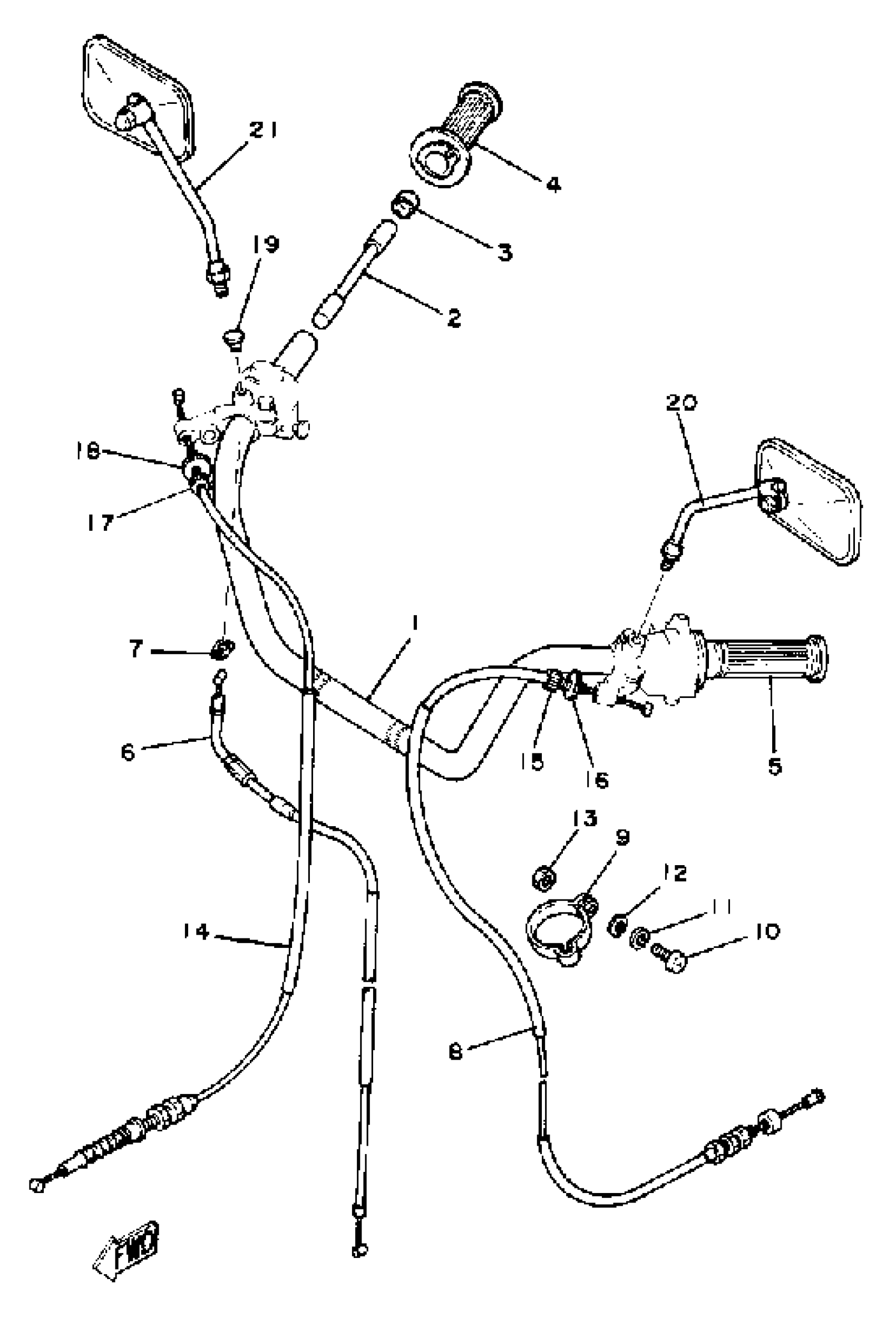

1981 Yamaha SR250TH (SR250TH) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3Y6-26111-00-00

1
Out of stock

2

BAR, HANDLE

3Y6-26112-00-00

1
Out of stock

3

PLUG 288251390000

90338-18014-00

—

$7.57

In stock

4

GRIP ASSY

2H7-26240-01-00

1
Out of stock

5

GRIP LH

2H7-26241-01-00

1
Out of stock

6

CABLE, THROTTLE 1

3Y6-26311-00-00

1
Out of stock

7

HOLDER,

584-26393-02-00

—

$6.02

In stock

8

CABLE, CLUTCH

3Y0-26335-00-00

—

$48.42

In stock

9

BAND

3Y6-26397-00-00

—

$3.69

In stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

CABLE, BRAKE

3Y6-26341-00-00

1
Out of stock

15

BOLT

90123-08002-00

1

$8.93

In stock

16

NUT

90179-08030-00

—

$3.78

In stock

17

BOLT

90123-08002-00

1

$8.93

In stock

18

NUT

90179-08030-00

—

$3.78

In stock

19

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

20

MIRROR ASSEMBLY LH

3Y6-26290-10-00

1
Out of stock

21

MIRROR ASSEMBLY RH

3Y6-26290-00-00

1
Out of stock
