1981 Yamaha SR250TH (SR250TH) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

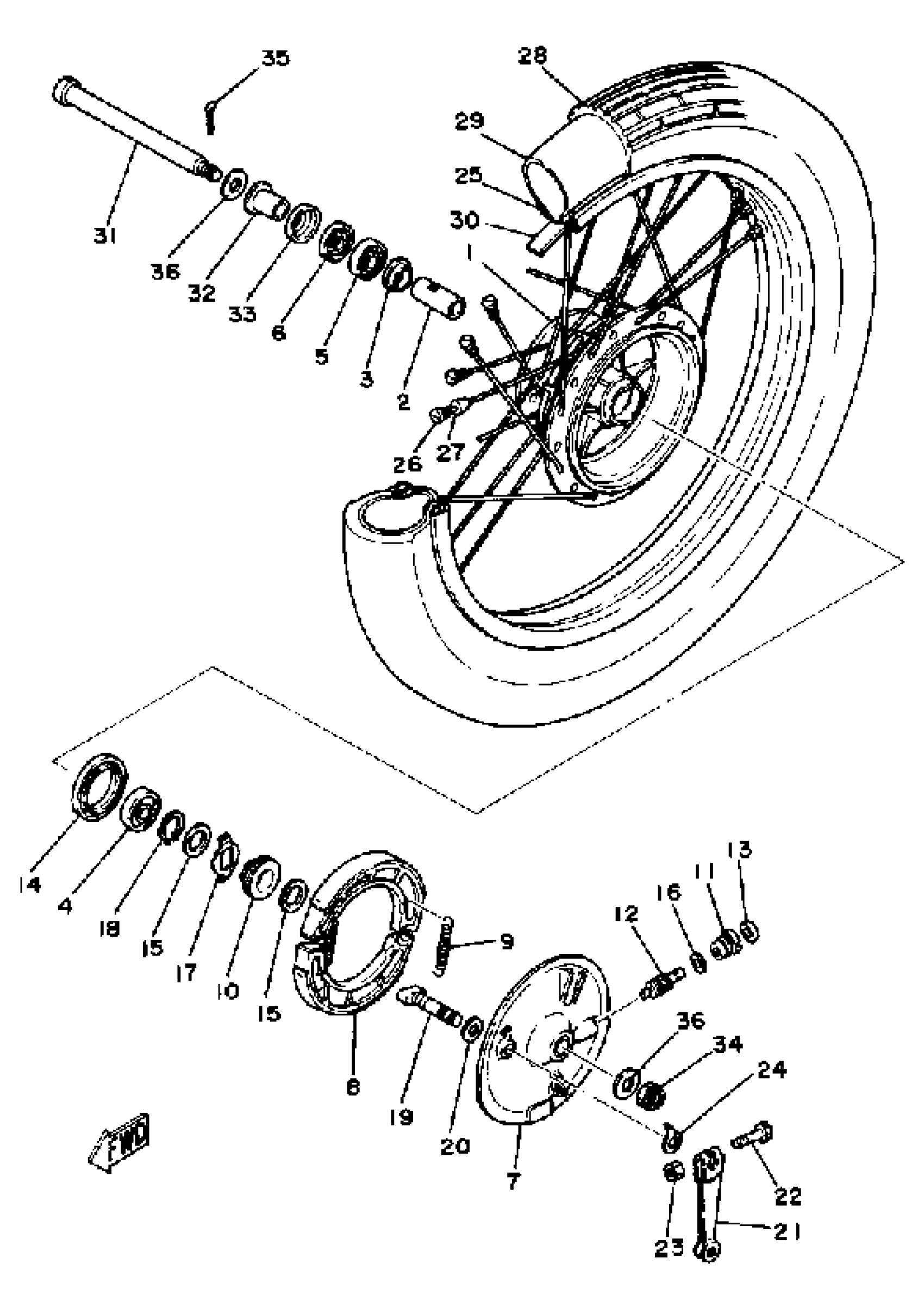

1981 Yamaha SR250TH (SR250TH) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(3Y6-25111-00-38)

1
Out of stock

2

SPACER(1EE)

90560-15293-00

—
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

7

PLATE, BRAKE SHOE

3Y6-25121-00-38

—

$141.34

In stock

8

BRAKE SHOE SET-2PCS

431-W2536-00-00

1
Out of stock

9

1

$8.09

In stock

10

GEAR, DRIVE

246-25135-00-00

—

$16.98

In stock

11

BUSHING

109-25136-00-00

1

$8.78

In stock

12

GEAR, METER

214-25138-00-00

—

$18.32

In stock

13

OIL SEAL (7X14X4-136)

93104-07003-00

1

$7.29

In stock

14

OIL SEAL (50X62X7-214)

93105-50010-00

1

$13.85

In stock

15

WASHER PLATE 214251470000

90201-22283-00

1

$5.38

In stock

16

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

17

CLUTCH, METER

214-25149-01-00

—

$6.68

In stock

18

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

19

CAMSHAFT

(3Y6-25151-00-00)

1
Out of stock

20

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

21

LEVER, CAM SHAFT

2N6-25155-00-00

—

$199.85

In stock

22

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

PLATE

3Y6-2533A-01-00

—

$5.30

In stock

25

RIM (1.60-18)

94416-18003-00

—
Out of stock

26

SPOKE SET, FRONT

3Y6-25104-00-00

—

$56.63

In stock

27

BALANCER, WHEEL

3HT-25398-00-00

—

$6.89

In stock

28

300-18 4PR Y954

94130-18429-00

1
Out of stock

29

TUBE (5H5)

94227-18195-00

—
Out of stock

30

BAND, RIM (2J4)

94340-18086-00

—

$16.00

In stock

31

AXLE, WHEEL

1W1-25181-01-00

—

$35.14

In stock

32

COLLAR (1W1)

90387-15600-00

—

$15.34

In stock

33

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

34

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

35

PIN, COTTER

91490-30030-00

—

$7.15

In stock

36

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock
