1981 Yamaha SR250TH (SR250TH) Front Fork Diagram

← All diagrams

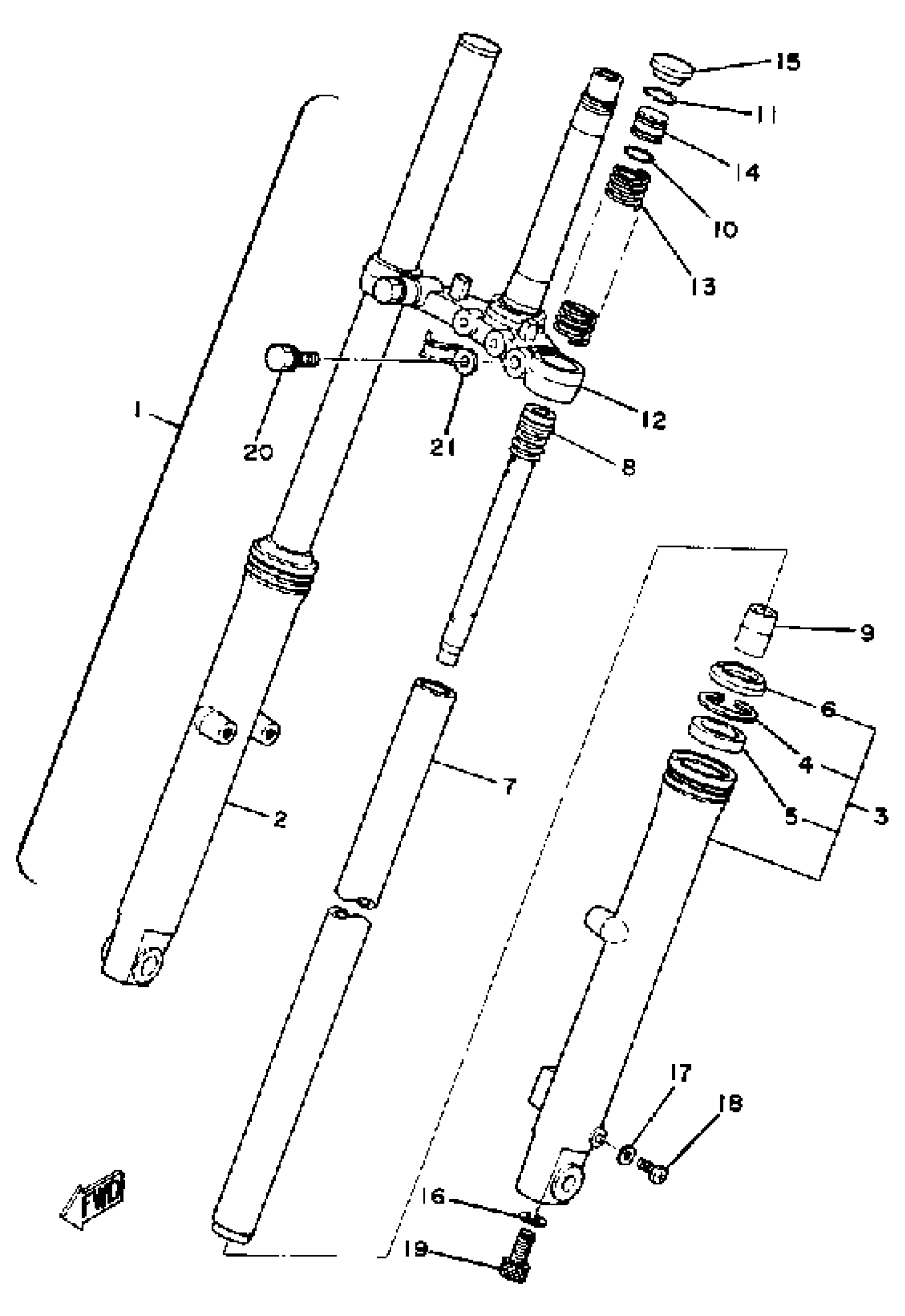

Find the part on the Front Fork diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(3Y6-23100-00-00)

1
Out of stock

2

OUTER TUBE COMP (R.H)

3Y6-23136-00-38

—

$134.94

In stock

3

OUTER TUBE COMP (L.H)

3Y6-23126-00-38

—

$134.26

In stock

4

RING, SNAP

15E-23153-00-00

—

$8.74

In stock

5

OIL SEAL

2K5-23145-00-00

—

$27.50

In stock

6

DUST SEAL

3Y6-23144-00-00

—

$14.25

In stock

7

. INNER TUBE 1

3Y6-23110-00-00

1
Out of stock

8

. CYLINDER, FRT FORK

55F-23170-00-00

1
Out of stock

9

SPINDLE

2K5-23173-00-00

1
Out of stock

10

. GASKET

3Y6-23114-00-00

1
Out of stock

11

.. CIRCLIP

3Y6-23183-00-00

1
Out of stock

12

. UNDER BRACKET

3Y8-23340-G0-R4

1
Out of stock

13

SPRING, FRONT FORK

(3Y6-23141-00-00)

1
Out of stock

14

. BOLT, CAP

3Y6-23111-00-00

1
Out of stock

15

. CAP, FRONT FORK

3Y6-23168-00-00

1
Out of stock

16

GASKET

509-23158-L0-00

—

$14.34

In stock

17

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

18

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

20

BOLT 1

(1M3-23346-00-00)

1
Out of stock

21

. HOLDER, CABLE 1

260-23318-40-00

1
Out of stock
